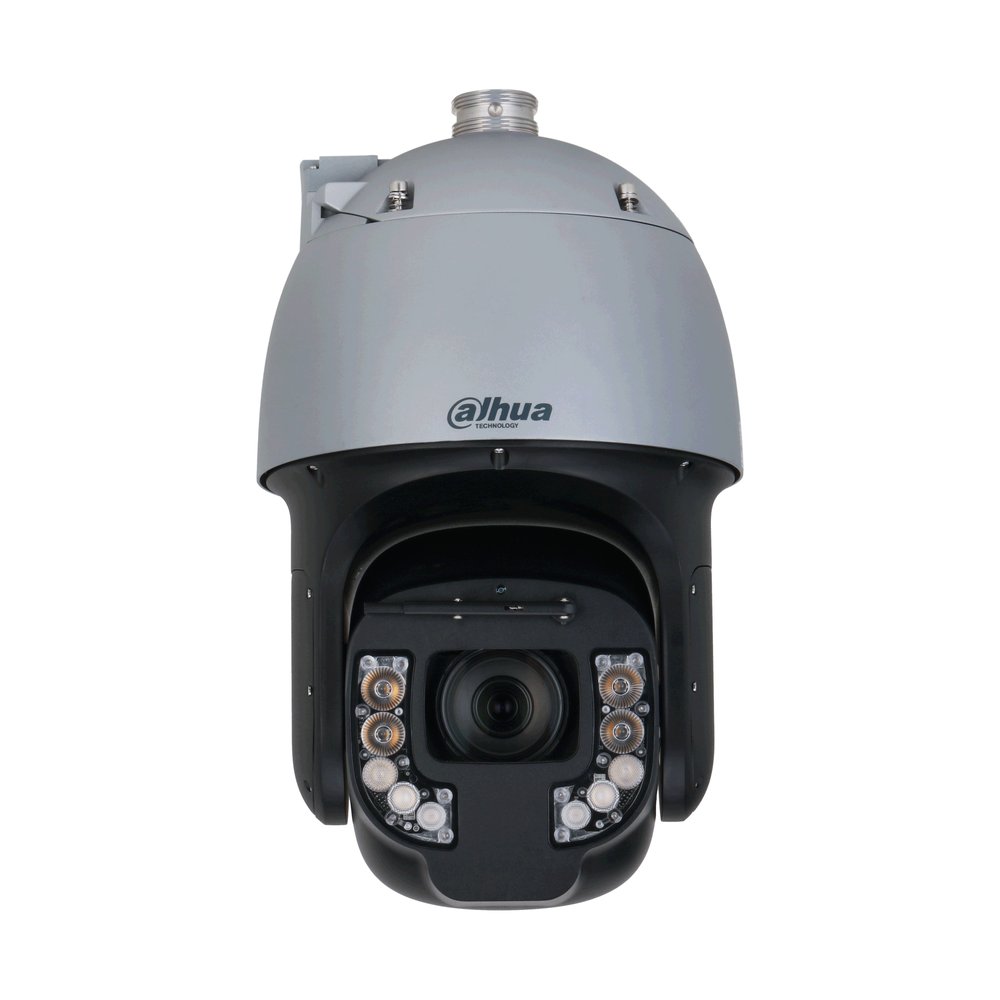

Speed dome IP AI WizMind Starlight 8" da interno/esterno IP67, sensore CMOS Starvis progressivo 1/1.8", risoluzione 8 MP a 25fps, rotazione PAN 360° endless / TILT -20°~90°, H.265+, ICR, zoom ottico 48x (6.25~300 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.001 lux ƒ1.4~4.5 (0 con IR On), portata IR fino a 500 m, porta LAN 100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati, face recognition, auto-tracking, micro SD card (512 GB), tergiottica smart, alimentazione 36 Vdc <33 W
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 8 GB |
| RAM | 2 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.4 |
| Min. Illumination | B/W: 0.0005 lux@F1.4 0 lux (IR light on) |
| Illumination Distance | 500 m (1,640.42 ft) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
| Illuminator Number | 10 (IR light) |
| Lens | |
| Focal Length | 6.25 mm–300 mm |
| Max. Aperture | F1.4–F4.5 |
| Field of View | H: 64.6°–1.5°; V: 35.6°–1.0°; D: 68.5°–2.0° |
| Optical Zoom | 48× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) Detect Observe Recognize Identify 5,048 m 2,019.2 m 1,009.6 m 504.8 m (16,561.68 ft) (6,624.67 ft) (3,312.34 ft) (1,656.17 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –20° to +90° Pan: 0.1°/s–240°/s |
| Manual Control Speed | Tilt: 0.1°/s–100°/s |
| Preset Speed | Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour DH-SD |
| PTZ Protocol | Pelco-P/D (auto recognition) |
| Intelligence | |
| Video Metadata | and non-motor vehicle image capture and attributes extraction. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking |
| IVS (Perimeter Protection) | detection; people gathering; vehicle/human alarm classification |
| Face Recognition | Yes |
| Auto Tracking | Yes |
| Video | |
| Video Compression | Stream 1); Smart H.264+ |
| Streaming Capability | 3 streams 8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 |
| Resolution | × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/VGA/CIF (1-25/30 fps) Sub stream 2: 1080p/960p/720p (1-25/30 fps) |
| Bit Rate Control | CBR; VBR |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Masking | same view; Multiple colors available |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | G729; G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; |
| Network Protocol | NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP |
| Interoperability | CGI; SDK; ONVIF (Profile S&G&T) |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 50 and later versions Safari 10 and later versions |
| Mobile Client | iOS; Android |
| Port | |
| Analog Output | 1 channel (CVBS output, BNC) |
| RS-485 | 1 (baud rate: 1,200 bps–115,200 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT, bare wire) |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 Capture; preset; tour; pattern; recordings; alarm digital |
| Alarm Linkage | input; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; |
| Alarm Event | decoder state detection; memory card state detection; memory space detection; power exception detection |
| Power | |
| Power Supply | 36 VDC, 2.23 A (± 25%), Hi-PoE Basic: 18 W |
| Power Consumption | Max.: 33 W (illuminator + PTZ) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% IP67; TVS 8000 V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Product Dimensions | 442 mm × Φ262 mm (17.40" × Φ10.31") |
| Net Weight | 10.3 kg (22.71 lb) |
| Gross Weight | 12.5 kg (27.56 lb) |
| Ordering Information | |
| Type | Model Description 8MP 48x Starlight IR Network PTZ DH-SD8C848PA1-HNF |
| Camera | |
| 8M Camera | 8MP 48x Starlight IR Network PTZ SD8C848PA1-HNF |
| Included: | |
| DC36V/2.23A | PFB306W-S |
| Power Adapter | Wall Mount Bracket |
| : | |
| PFB300C-S | PFA150 + PFB306W-S PFA150 + PFB300C-S |
| Ceiling Mount Bracket | Vertical Pole Mount Bracket Horizontal Pole Mount Bracket |
