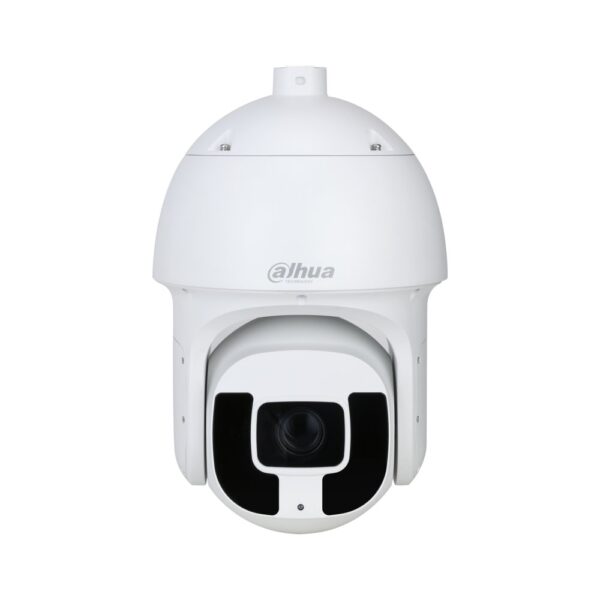

PTZ IP AI 4 MP zoom 40x IR

Name: PTZ IP AI 4 MP zoom 40x IR
Brand: Dahua
SKU: SD8A3440GA-HNV
Price: 2862.73 EUR
Availability: BackOrder

Dahua

COD: SD8A3440GA-HNV Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

2.862,73 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 5.725,46 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI WizMind Starlight 8" da interno/esterno IP67 antivandalo IK10, sensore CMOS Starvis progressivo 1/1.8", risoluzione 4 MP a 25fps, rotazione PAN 360° endless / TILT -30°~90°, auto flip 180°, H.265+, ICR, zoom ottico 40x (5.6~233 mm ƒ1.6~4.9) / 16x digitale, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 500 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 140 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati video, face detection, auto tracking, SMD, micro SD card (512 GB), alimentazione 36 Vdc/Hi-PoE <30 W, alimentatore e staffa da muro PFB306W inclusi

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Camera
Image Sensor	1/1.8" CMOS 4 MP
Pixel	2560 (H) × 1440 (V)
ROM	4 GB
RAM	1 GB
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive Color: 0.001 lux@F1.6
Min. Illumination	B/W: 0.0001 lux@F1.6 0 lux (IR light on)
Illumination Distance	500 m (1,640.41 ft) (IR)
Illuminator On/Off Control	Zoom Prio; Manual; Auto; Off
Illuminator Number	10 (IR)
Lens
Focal Length	5.6 mm-223 mm
Max. Aperture	F1.6–F4.9
Field of View	H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4°
Optical Zoom	40×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	1 m–5 m (3.28 ft–16.40 ft)
Iris Control	Auto Detect Observe Recognize Identify 3,034.5 m 1,198.6 m 606.9 m 303.4 m (9,955.71 ft) (3,932.41 ft) (1,991.14 ft) (995.41 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Tilt: –30° to +90°, auto flip 180° Pan: 0°/s–240°/s
Manual Control Speed	Tilt: 0°/s–100°/s Pan: 0°/s–240°/s
Preset Speed	Tilt: 0°/s–100°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset;Pattern;Tour;Scan
PTZ Protocol	Pelco-P/D (Auto recognition)
Intelligence
Video Metadata	Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/ year, sun visor, seatbelt, smoking, calling, ornament, and annual inspection sticker. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking
IVS (Perimeter Protection)	detection; people gathering; vehicle/human alarm classification; linkage tracking Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache
Face Detection	and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto Tracking	Yes
SMD	Yes
Video
Video Compression	H.264H;MJPEG(Sub Stream)
Streaming Capability	3 streams 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704
Resolution	× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)
Video Frame Rate	Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
Bit Rate Control	CBR/VBR H264: 96 Kbps–14,848 Kbps
Video Bit Rate	H265: 38 Kbps–8,960 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	140 dB
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Image Stabilization	Electronic Image Stabilization (EIS)
Defog
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the same
Privacy Masking	view; multiple colors available
S/N Ratio	≥ 55 dB
Audio
Audio Compression	G729; G723
Network
Network Port	RJ-45 (10/100 Base-T) HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;
Network Protocol	DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;IGMP;A RP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS
Interoperability	ONVIF(Profile S&G&T);CGI;SDK
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 50 and later versions Safari 10 and later versions
Mobile Client	iOS;Android
Port
RS-485	1 (baud rate: 1,200 bps–9,600 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire) Capture; preset; tour; pattern; recording; alarm digital
Alarm Linkage	input; audio; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory
Alarm Event	card status detection; memory space detection; power exception detection
Alarm I/O	7/2
Audio I/O	1/1
Power
Power Supply	36 VDC/2.23 A ± 25%; Hi-PoE Basic: 17 W
Power Consumption	Max.: 30 W (illuminator + heater + PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤ 95% IP67, TVS 8000V lightning proof; surge protection; voltage
Protection	transient protection
Structure
Product Dimensions	415.9 mm × Φ262.0 mm (16.37" × Φ10.31")
Net Weight	8.5 kg (18.74 lb)
Gross Weight	13.1 kg (28.88 lb)
Ordering Information
Type	Part Number Description 4MP 40X Startlight IR NETWORK PTZ
4M Camera	DH-SD8A3440GA-HNV
Included:
DC36V/2.23A	Wall Mount Bracket
Optional:
PFB710C + PFA118	PFB301C + PFA118 PFA150 + PFB306W
Ceiling Mount	Ceiling Mount Ceiling Mount Bracket Bracket Bracket
PFA150 + PFB301C +	PFA118
