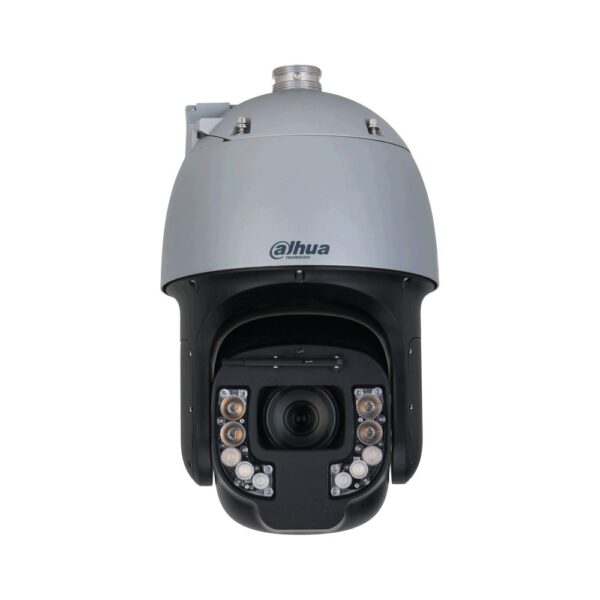

PTZ IP AI 4 MP zoom 40x IR/LED

Name: PTZ IP AI 4 MP zoom 40x IR/LED
Brand: Dahua
SKU: SD8C440FD-HNF
Price: 5054.46 EUR
Availability: BackOrder

Dahua

COD: SD8C440FD-HNF Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

5.054,46 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 10.108,92 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI WizMind Polarlight 8" da interno/esterno IP67, sensore CMOS Starvis progressivo 1/1.8", risoluzione 4 MP a 25fps, rotazione PAN 360° endless / TILT -20°~90°, H.265+, ICR, zoom ottico 40x (6~240 mm ƒ1.4~4.3), luminosità 0.0002 lux ƒ1.4 (0 con IR On), Dual Light Fusion con portata white light/IR fino a 80/250 m, porta LAN 100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, 1 uscita analog, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR, privacy mask 24 aree, IVS (protezione perimetrale), metadati video, face recognition, auto-tracking, micro SD card (512 GB), alimentazione 36 Vdc/Hi-PoE <33 W

Datasheet

Scheda Tecnica

Manuali

Camera
Image Sensor	1/1.8" CMOS, dual sensors
Pixel	4 MP
Max. Resolution	2560 (H) × 1440 (V)
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive Color: 0.0002 lux@F1.4
Min. Illumination	B/W: 0.0001 lux@F1.4 0 lux (dual light fusion on) 80 m (262.47 ft) (dual light fusion–white light only)
Illumination Distance	250 m (820.21 ft) (dual light fusion–IR only)
Illuminator On/Off Control	Zoom Prio; Manual; Smart IR; Off
Illuminator Number	10 (dual light fusion)
Lens
Focal Length	6 mm–240 mm
Max. Aperture	F1.4–F4.3
Field of View	H: 63.5°–1.8°; V: 38.4°–1.1°; D: 70.7°–2.0°
Optical Zoom	40×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.5 m–5 m (1.64 ft–16.40 ft)
Iris Control	Auto; manual; fixed Detect Observe Recognize Identify 3,310.3 m 1,307.6 m 662.1 m 331.0 m (10,860.56 (4,290.03 ft) (2,172.24 ft) (1,085.96 ft) ft)
DORI Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Tilt: –20° to +90° Pan: 0.1°/s–240°/s
Manual Control Speed	Tilt: 0.1°/s–100°/s
Preset Speed	Pan: 240°/s; Tilt: 100°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset; Pattern; Tour; Scan
Intelligence
Video Metadata	and non-motor vehicle image capture and attributes extraction. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking
IVS (Perimeter Protection)	detection; people gathering; vehicle/human alarm classification.
Face Recognition	Yes
Auto Tracking	Yes
Video
Video Compression	H.264H; MJPEG
Streaming Capability	3 streams 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704
Resolution	× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)
Video Frame Rate	Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps)
Bit Rate Control	CBR; VBR H.264: 2816 kbps–13056 kbps
Video Bit Rate	H.264H: 2816 kbps–13056 kbps H.265: 1024 kbps–7936 kbps
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	Yes
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the
Privacy Masking	same view
S/N Ratio	≥55 dB
Audio
Audio Compression	G729; PCM
Network
Network Port	RJ-45 (10/100 Base-T) HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS;
Network Protocol	DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP
Interoperability	ONVIF (Profle S&G&T); CGI; PSIA
Streaming Method	Unicast; Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 52ESR and earlier versions Safari
Management Software	Smart PSS; DSS; DMSS
Mobile Client	Android; iPhone; iPad; Windows Phone
Port
Analog Output	1 channel (CVBS output, BNC)
RS-485	1 (baud rate: 1200 bps–115200 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT, bare wire)
Alarm I/O	7/2
Audio I/O	1/1 Capture; preset; tour; pattern; recordings on SD card;
Alarm Linkage	alarm digital input; send email; client E–map Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection;
Alarm Event	memory card state detection; memory space detection; power exception detection
Power
Power Supply	Hi-PoE Basic: 18 W
Power Consumption	Max.: 33 W (illuminator + PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95% IP67; TVS 8000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Product Dimensions	442 mm × Φ262 mm (17.40" × Φ10.31")
Net Weight	9.6 kg (21.16 lb)
Gross Weight	12.5 kg (27.56 lb)
Ordering Information
Type	Model Description DH-SD8C440FD-HNF 4MP 40 Polarlight NETWORK PTZ CAMERA
Included:
DC36V/2.23A	PFB306W-S
Power Adapter	Wall Mount Bracket
Optional:
PFB718C-SG	PFA5500 + PFB306W-S PFA5500 + PFB718C-SG
Ceiling Mount Bracket	Vertical Pole Mount Horizontal Pole Mount Bracket Bracket
PFB711C-SG	PFA151 + PFB306W-S
Ceiling Mount Bracket	Corner Mount Bracket
