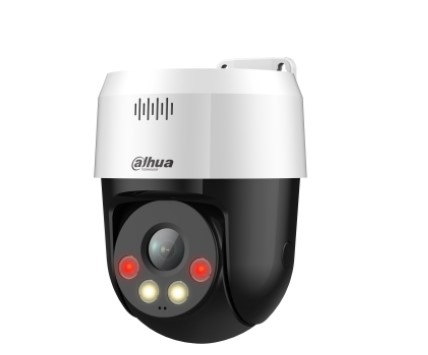

PT IP AI Smart Dual Light deterrenza 5 MP 4 mm IR/LED mic
Telecamera PT IP AI WizSense a deterrenza attiva con Smart Dual Light da interno/esterno IP66, sensore CMOS STARVIS progressivo 1/2.8", risoluzione 5 MP a 25fps, H.265+, rotazione PAN 345° / TILT 0°~80°, ICR, ottica fissa 4 mm ƒ1.6, luminosità 0.05 lux ƒ1.6, ICR, portata IR/white light 30 m, 1 porta di rete 10/100 Mbps, 1 ingresso e 1 uscita audio con microfono e speaker integrati, allarme sonoro e luminoso, 2/3D NR, IVS, human detection, SMD 3.0, micro SD card (256 GB), alimentazione 12 Vdc/PoE <9 W
Datasheet
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 5 MP |
| Max. Resolution | 2560 (H) × 1920(V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | 1 s–1/100,000 s |
| Scanning System | Progressive 0.05 lux@F1.6 (Color, 30 IRE); |
| Min. Illumination | 0.005 lux@F1.6 (B/W, 30 IRE); |
| Illumination Distance | 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR); |
| Illuminator On/Off Control | Manual; auto; off |
| Illuminator Number | 2 (IR light); 2 (warm light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 80.4°; V: 58.1°; D: 104.8° |
| Close Focus Distance | 0.3 m (0.98 ft) |
| Iris Control | Fixed Recogniz |
| Lens | |
| DORI Distance | 77.4 m 31.0 m 15.5 m 7.74 m 4.0 mm ( 253.94 ( 101.71 ( 50.85 ( 25.39 ft) ft) ft) ft) |
| Ptz | |
| Pan/Tilt Range | Tilt: 0° to +80° Pan: 0.1°–74°/s; |
| Manual Control Speed | Tilt: 0.1°–36.4°/s Pan: 0.1°–62°/s; |
| Preset Speed | Tilt: 0.1°–36.3°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Human Detection | Yes |
| Intelligence | |
| SMD | SMD 3.0 |
| Active Deterrence | |
| Light Warning | Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Sound can be set from 0%–100%; Play times can be set from 1-10. |
| Video | |
| Video Compression | H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability | 2 streams 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × |
| Resolution | 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Main stream: 5M/4M/3M/1080p/1.3M/720p@(1– |
| Video Frame Rate | 25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR H264: 104 kbps-8,192 kbps |
| Video Bit Rate | H265: 41 kbps-8,192 kbps |
| Day/Night | Auto (ICR); Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | |
| Image Rotation | 180° |
| Privacy Masking | 4 area |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM G.711a G.711Mu G.726 AAC |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) HTTP;HTTPS;TCP/ |
| Network Protocol | IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL; FTP;ARP;RTCP;RTP;IP Filter;RTMP |
| Interoperability | CGI;SDK;ONVIF (Profile S & Profile T);RTMP;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software | Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player |
| Mobile Client | iOS;Android |
| Port | |
| Audio Input | 1 channel (built-in mic) |
| Audio Output | 1 channel (built-in speaker) |
| Alarm Linkage | Capture; preset; recording; audio; sending email Motion/Tampering detection; audio detection; network |
| Alarm Event | disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 12 VDC/1.5 A ± 10% PoE (802.3af) Basic: 3.5 W; |
| Power Consumption | Max: 10 W (illuminator) |
| Power Adapter | Optional |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% TVS 2000 V lightning proof; surge protection; voltage |
| Protection | transient protection;Waterproof and Dustproof |
| Structure | |
| Product Dimensions | 140.5 mm × Φ111.0 mm (5.53" × Φ4.37") |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 1 kg (2.20 lb) |
| Filter | |
| Remarks | requirements on the precision, contact your local sales representative for assistance with selecting the model |
| Ordering Information | |
| Type | Model Description 5MP Smart Dual Light |
| NETWORK PT CAMERA | DH-SD2A500NB-GNY-A-PV Network PT Camera 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
