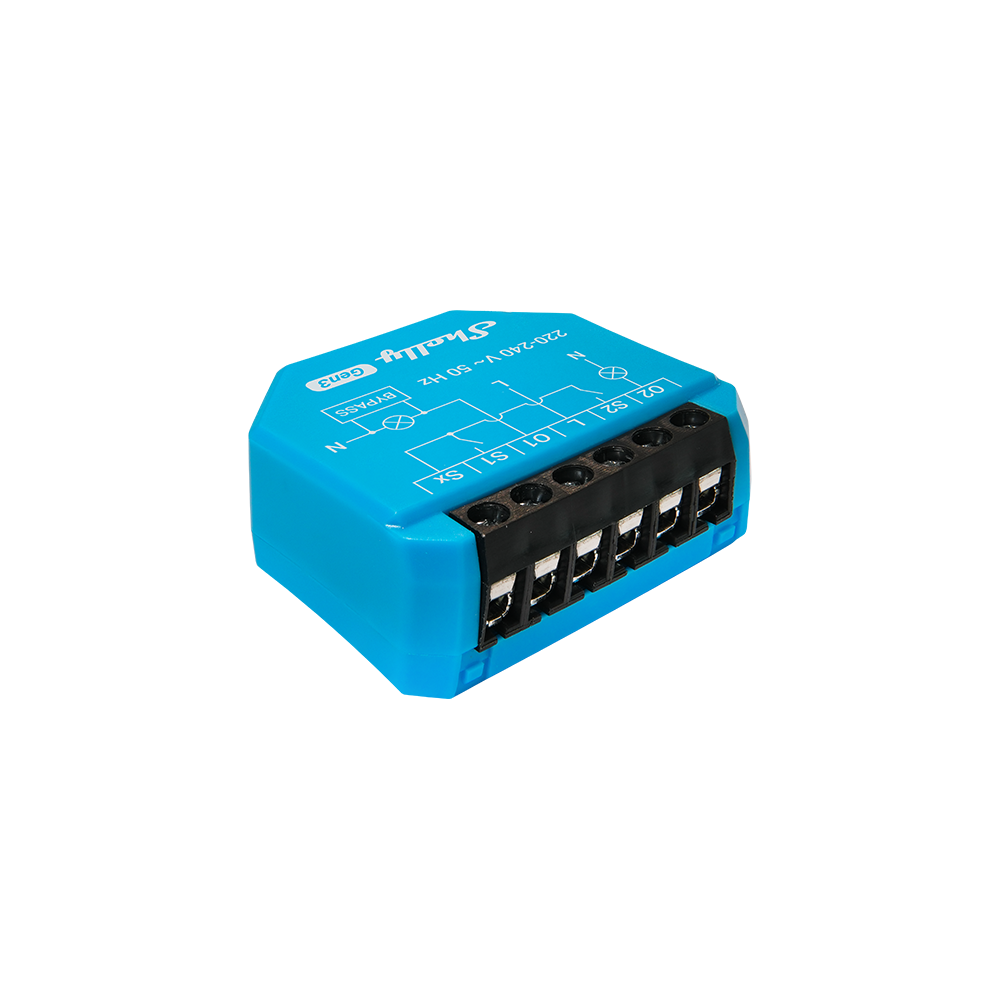

Shelly 2L Gen3 – Smart Switch 2 canali SENZA NEUTRO

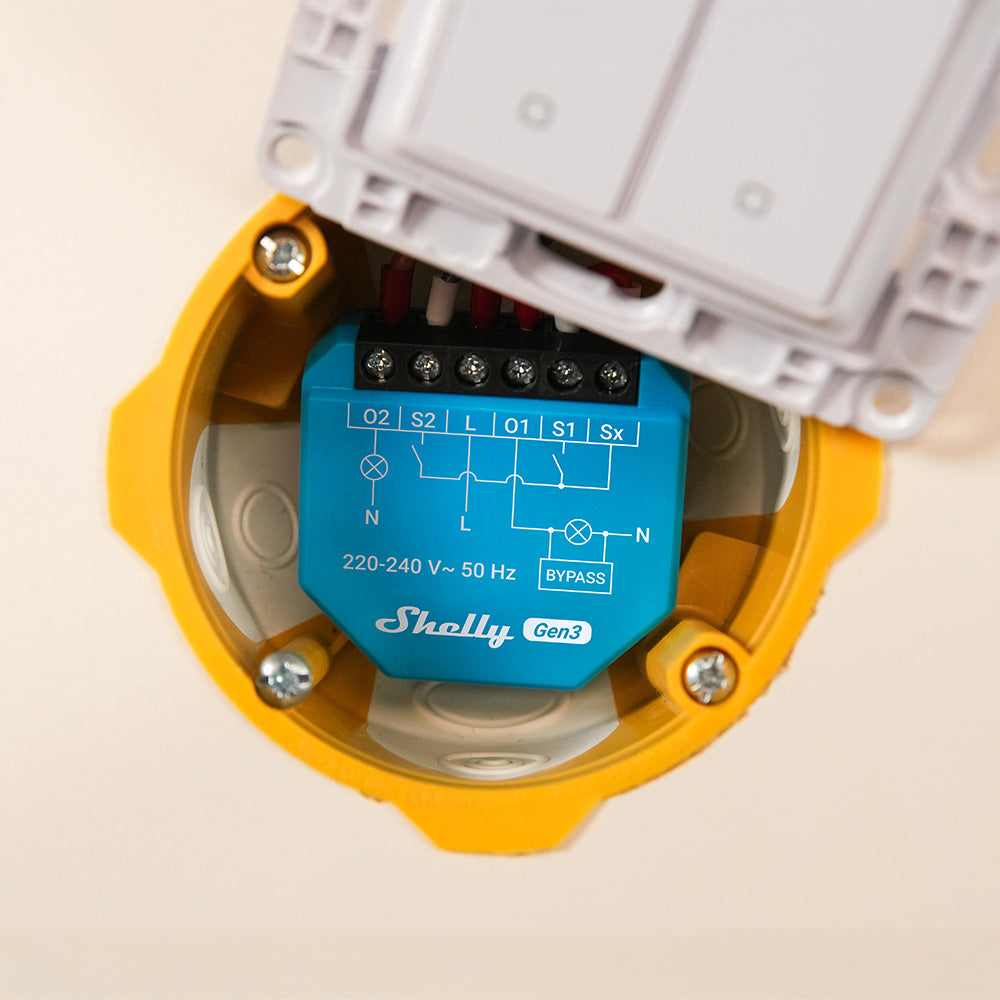

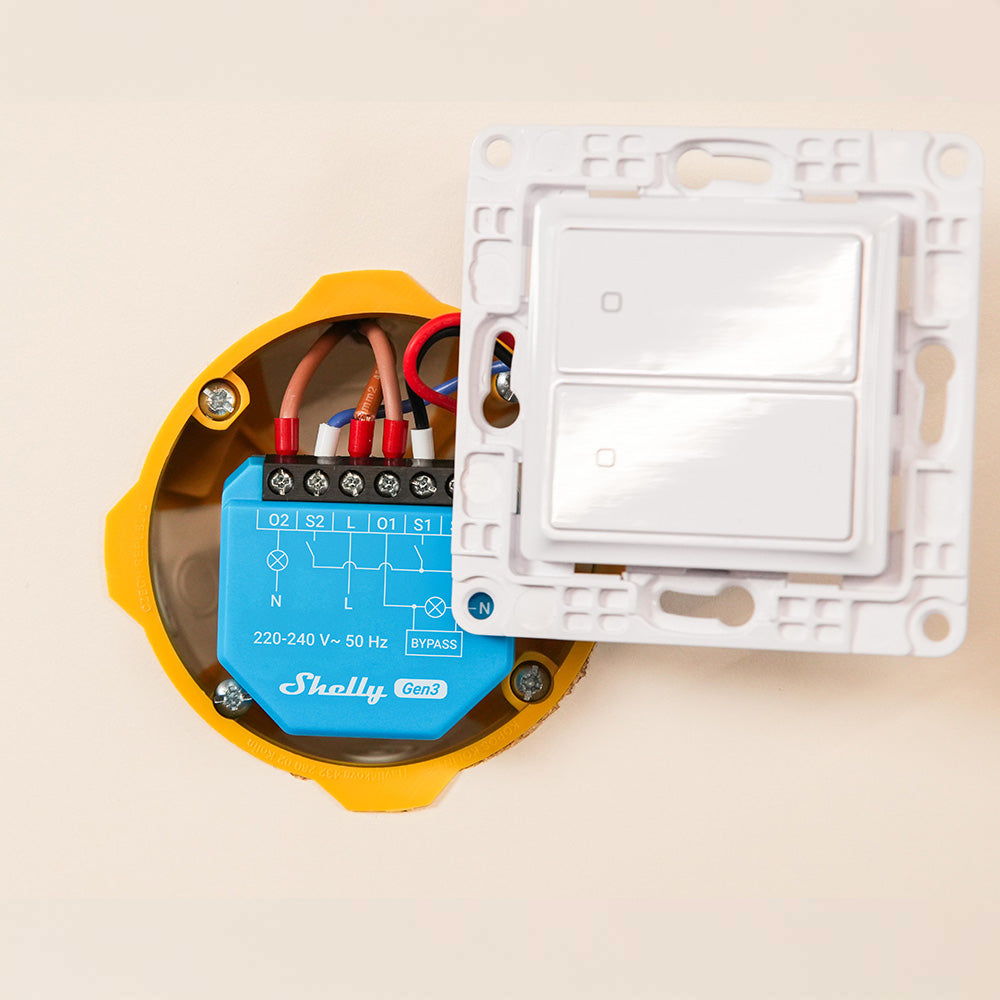

Relè intelligente a due canali per impianti senza filo neutro: comanda due circuiti luce indipendenti dietro un interruttore doppio esistente, senza rifare l’impianto. Costruito sulla piattaforma Gen3, unisce Wi-Fi, Bluetooth, script locali e automazioni in un modulo che entra nella scatola da incasso.
- Due canali indipendenti: due punti luce comandati da un solo dispositivo, mantenendo i pulsanti a muro esistenti
- Funziona senza neutro, la soluzione per gli impianti più datati e per le ristrutturazioni parziali
- Con carichi bassi o LED può servire il Bypass Shelly per 1L/2L, da collegare in parallelo al carico
- Wi-Fi e Bluetooth integrati, compatibile con Matter: si integra con Alexa, Google Home e Apple Home
- Automazioni, scenari e script eseguiti in locale: continua a funzionare anche senza connessione a internet
- Aggiornamenti firmware da remoto e gestione dall’app Shelly Smart Control
Modello del dispositivo: S3SW-0A2X4EUL.
| Physical | |
| Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
| Weight: | 28 g / 1 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.24 in |
| Mounting: | In-wall |
| Shell material: | Plastic |
| Shell color: | Cyan |
| Terminal color: | Black |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Storage temperature: | 10°C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 220-240 V~, 50Hz (Shelly Bypass is required for the load at O1) |

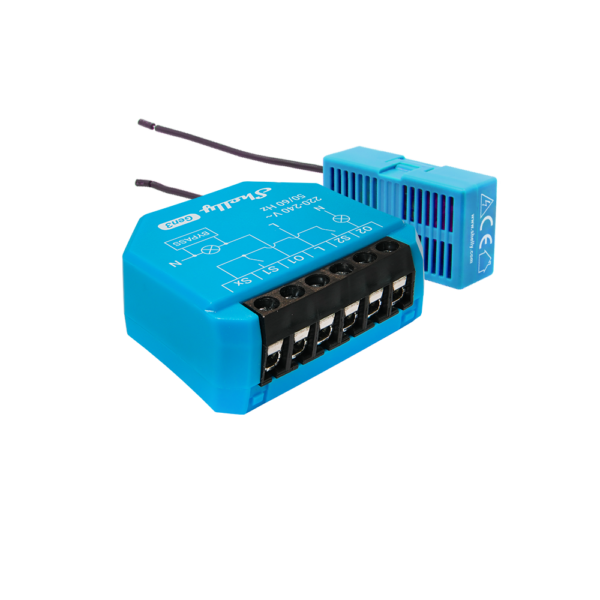

| Shelly Bypass included: | Yes |
| Power consumption: | < 1.2 W |
| Neutral not needed: | Yes (Shelly Bypass is required for the load at O1) |
| Min. load without neutral and without a Bypass: | No (Shelly Bypass for 1L/2L is required for the load at O1), for all LED lights. No, Bypass is not needed for incandescent lights. |
| Output circuits ratings | |
| Max. switching voltage: | 240 V~ |
| Max. switching power: | 200 W through O1 700 W through O2 |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2401 – 2495 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 4.2 |
| RF band: | 2400 – 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP-Shelly-C38F |
| Clock frequency: | 160 Mhz |
| RAM: | 512 KB |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |

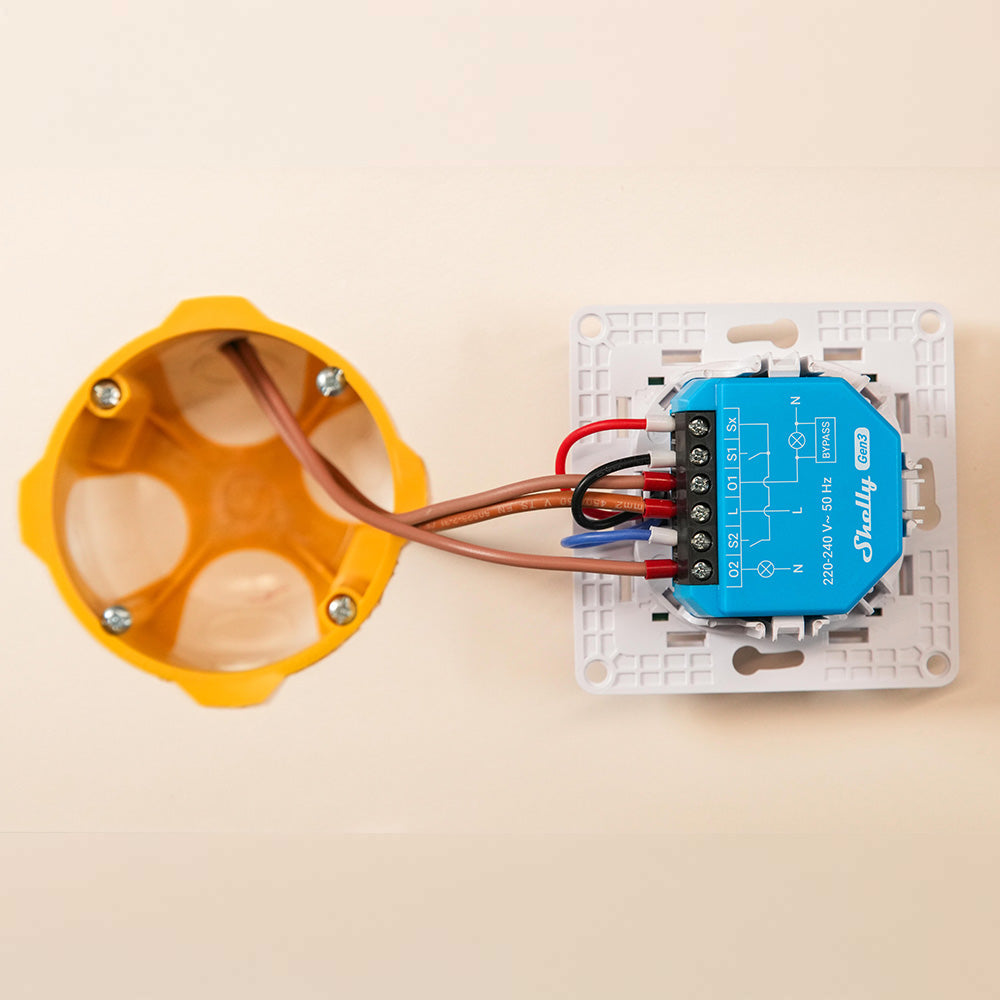

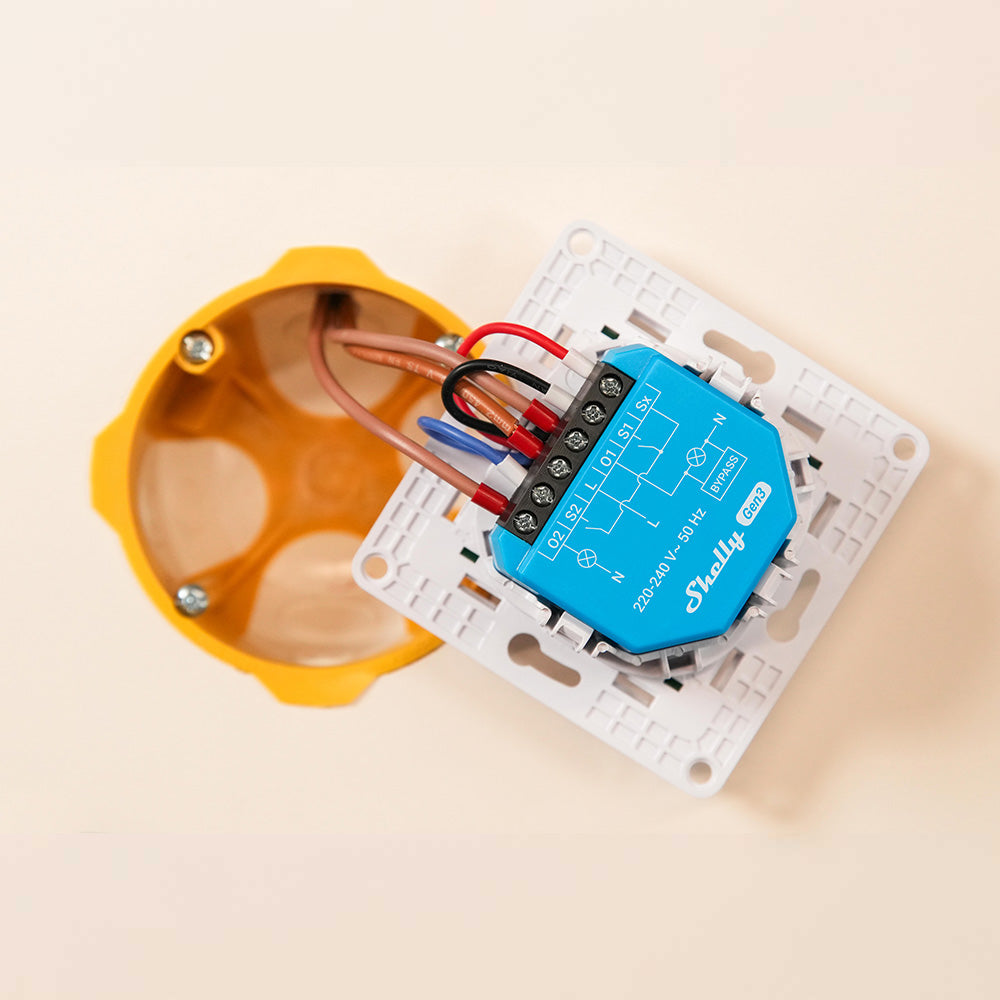

| Terminals: | Wires |
| S1: | Switch input terminal 1 L Live (220-240 V~) wire |
| S2: | Switch input terminal 2 N Neutral wire |
| Sx: | Switch signal output terminal |
| L: | Live (220-240 V~) terminal |
| O1: | Load circuit output terminal 1 |
| O2: | Load circuit output terminal 2 |
