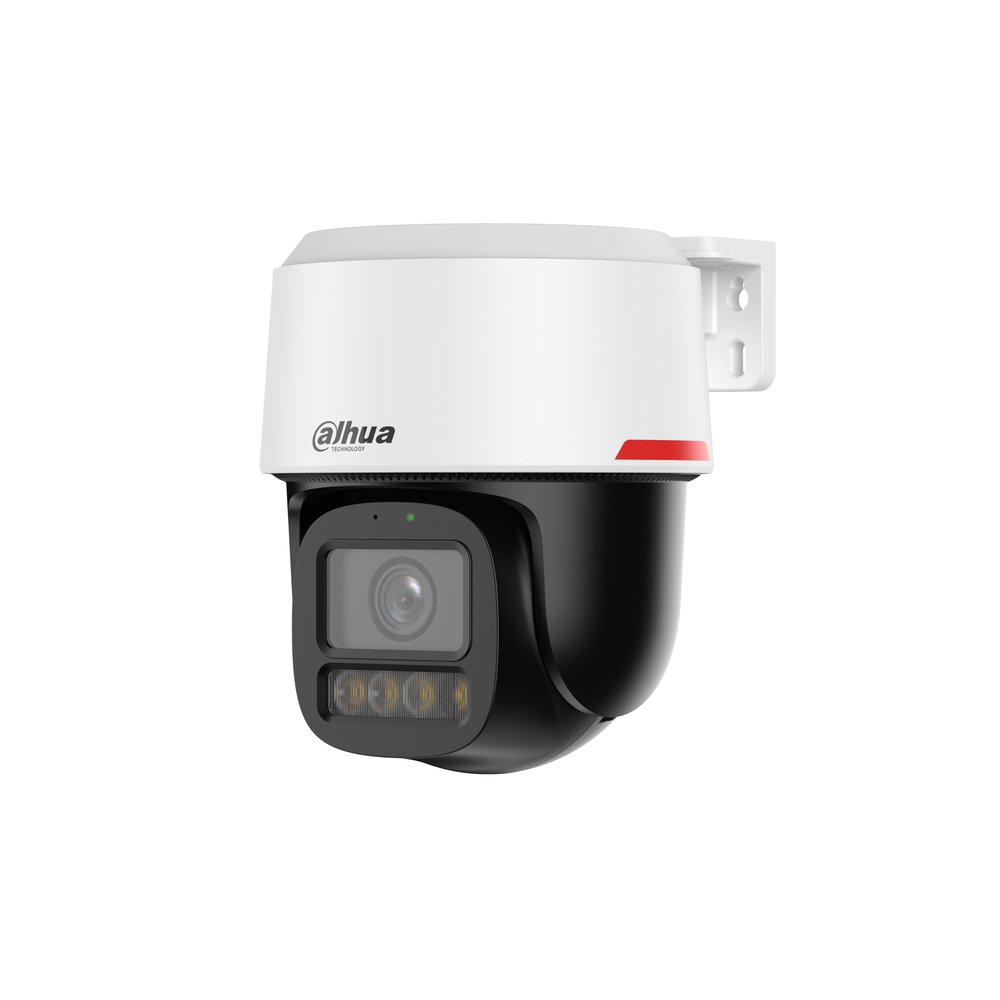

PT IP AI WizColor deterrenza 8 MP 3.6 mm LED mic
Telecamera PT IP AI Wizsense WizColor IP66 con deterrenza attiva, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 20fps, H.265+, rotazione PAN 345° / TILT 0°~90°, ottica fissa 3.6 mm ƒ1.0, luminosità 0.0005 lux ƒ1.0 (0 con illuminazione On), portata warm light fino a 30 m, 1 porta RJ-45 (10/100 Mbps), 1 ingresso e 1 uscita audio con microfono e speaker integrati, IVS, human/vehicle detection, auto tracking lite, motion detection, slot micro SD card (fino a 512 GB), alimentazione 12 Vdc/PoE <9.5 W
Datasheet
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1 s–1/100,000 s |
| Scanning System | Progressive 0.0005 lux@F1.0 (Color, 30 IRE); |
| Min. Illumination | 0 lux (Illuminator on); |
| Illumination Distance | 3.6 mm: 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual; Off |
| Illuminator Number | 4 (Warm light) |
| Lens | |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 3.6 mm: H: 93°; V: 49°; D: 110° |
| Close Focus Distance | 3.6 mm: 3.5 m (11.48 ft) Recogniz |
| Lens | |
| DORI Distance | a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: 0° to 90° |
| Manual Control Speed | Pan: 0.1°–34.5°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed | Pan: 0.1°–33.8°/s; Tilt: 0.1°–36.3°/s |
| Preset | 80 8 (up to 6 presets per tour; the stay duration for each |
| Tour | preset is 60 to 360 sec and tour interval is 900 to 3,600 sec) |
| Power-off Memory | Yes Preset;Tour;home position(only supports setting on |
| Idle Motion | DMSS) |
| PTZ Locked | YES |
| Smart Event | |
| IVS | Tripwire; Intrusion |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Intelligence | |
| Smart Tracking | Auto Tracking Lite |
| SMD | SMD 3.0 |
| Active Deterrence | |
| Light Warning | Flash duration: 5 s–30 s; Flash frequency: high, medium, low Offers 3 sound alarm. |
| Sound Warning | Sound can be set from 0%–100%. Play times can be set from 1-10. |
| Video | |
| Video Compression | H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability | 2 streams 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × |
| Resolution | 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) |
| Video Frame Rate | sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Bit Rate Control | CBR/VBR H.264: 8 kbps–8,192 kbps |
| Video Bit Rate | H.265: 3 kbps–8,192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; Manual; Gain Priority |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | |
| Digital Zoom | 16 × |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM, G.711A, G.711Mu |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) HTTP;HTTPS;TCP/ |
| Network Protocol | IP;IPv4;RTSP;UDP;NTP;DHCP;DNS;DDNS;IPv6;SSL;QoS;F TP;ICMP;IGMP;ARP;RTCP;RTP;RTMP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software | DMSS;NVR |
| Mobile Client | iOS;Android |
| Function | |
| Abnormal Sound Alarm | Yes |
| Port | |
| Audio Input | 1 channel (built-in mic) |
| Audio Output | 1 channel (built-in speaker) |
| Alarm Linkage | Capture; recording; audio; light Motion/Tampering detection; audio detection; network |
| Alarm Event | disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 12 VDC, 1A ± 10% PoE (802.3af) |
| Power Consumption | PoE: Basic: 3.6 W Max: 9.5 W (illuminator + PTZ) |
| Power Adapter | Optional |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% IP66;TVS 2000 V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Product Dimensions | 153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight | 0.8kg (1.76 lb) |
| Gross Weight | 1.2kg (2.64 lb) |
| Filter | |
| Remarks | requirements on the precision, contact your local sales representative for assistance with selecting the model 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
| Ordering Information | |
| Type | Model Description 8MP WizColor Active DH-IPC-PT2849C1-S-PV- |
| NETWORK PT CAMERA | Deterrence WizSense PRO Network PT Camera DH-PFM321-EN DC12V1A power adapter |
| Accessories (Optional) | DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester |
| Accessories | |
| DH-PFM320D-EN | DH-PFM321-EN PFM900-E |
| DC12V2A power adapter | DC12V1A power adapter Integrated Mount Tester |
