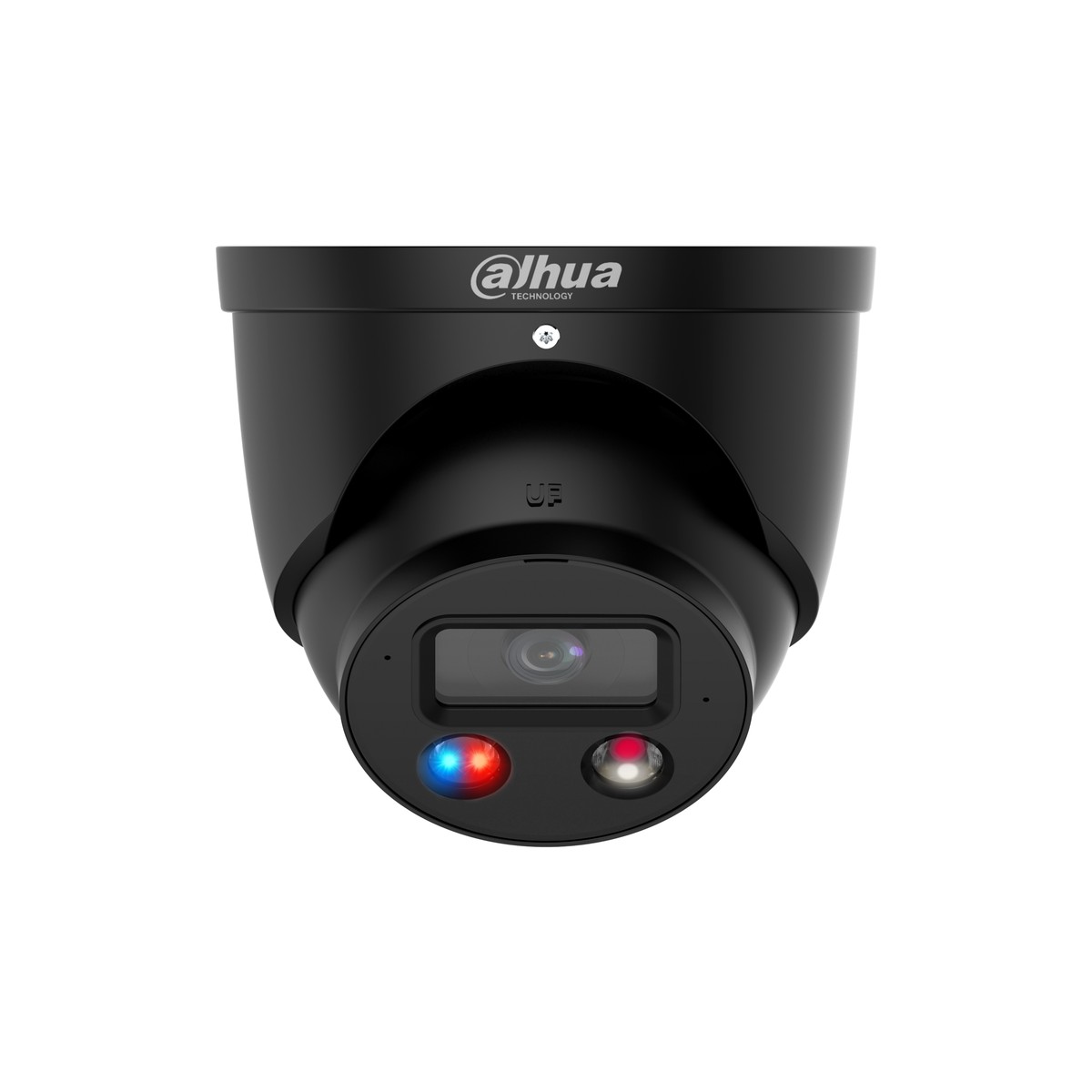

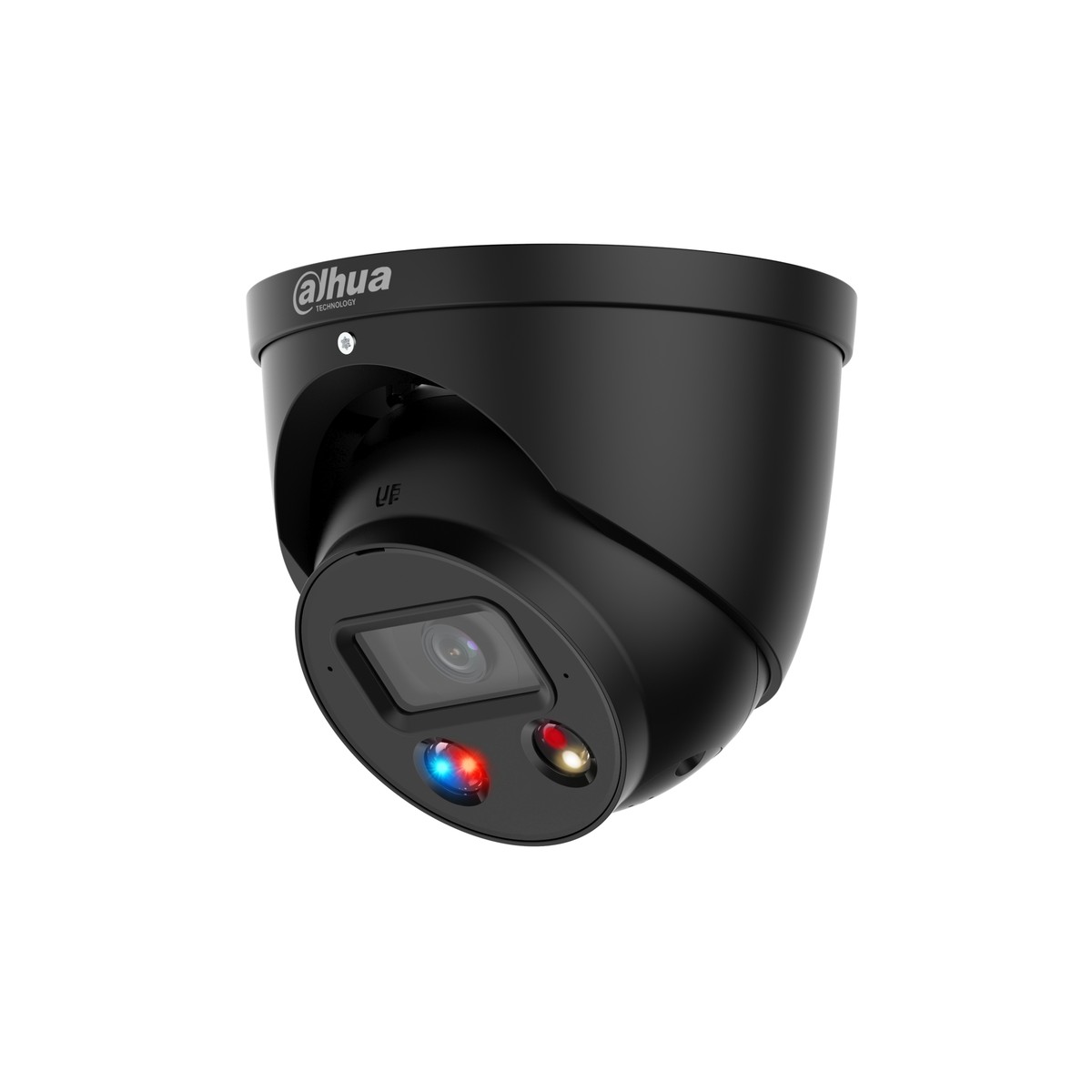

Telecamera IP eyeball WizSense da 8 MP con Smart Dual Light e deterrenza attiva, in colore nero. I dati si riferiscono alla serie 3849-PV-S4.
- Sensore CMOS 1/2.8″, 3840 × 2160 a 25/30 fps; codifica H.265, H.264, Smart H.265+/H.264+ e AI Coding
- Ottica fissa 2,8 mm o 3,6 mm; WDR 120 dB, 3D NR, HLC, BLC
- Illuminatore IR e a luce calda con portata fino a 30 m
- Deterrenza attiva con luci rosse e blu e allarme vocale
- Protezione perimetrale (intrusione, attraversamento linea) con classificazione di persone e veicoli, SMD 4.0, Quick Pick, AI SSA
- Doppio microfono e altoparlante integrati per audio bidirezionale; 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio; Micro SD fino a 256 GB
- Inserimento e disinserimento rapido tramite ingresso allarme
- Alimentazione 12 VDC o PoE (802.3af), grado di protezione IP67, corpo in metallo
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED); 1 (warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125°; 3.6 mm: H: 85°; V: 45°; D: 100° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft); 3.6 mm: 2.8 m (6.23 ft) |
| DORI Distance (2.8 mm) | Detect: 91.0 m (298.56 ft); Observe: 36.4 m (119.42 ft); Recognize: 18.2 m (59.71 ft); Identify: 9.1 m (29.86 ft) |
| DORI Distance (3.6 mm) | Detect: 107.6 m (353.02 ft); Observe: 43.0 m (141.08 ft); Recognize: 21.5 m (70.54 ft); Identify: 10.8 m (35.43 ft) |
| Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) |
| SMD 4.0 | Less false alarm, longer detection distance |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps); Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps); Third stream: 1920 × 1080@(1 fps–30 fps); *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32kbps–8192 kbps; H.265:12kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in Mic | Yes, built-in dual Mic |
| Built-in speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S;Profile G;Profile T); CGI |
| User/Host | 20 (Total bandwidth: 72 M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
| Browser | IE: IE8/9/11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Certification | |
| Certification | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 5.2 W (12 VDC); 5.5 W (PoE); Max. (pulling stream+warning light+speaker+warm light on): 9.2W (DC12 V) 10.2 W (POE) |
| Environment | |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 110.9 mm × Φ122.0 mm (4.37" × Φ4.80") |
| Net Weight | 745 g (1.64 lb) |
| Gross Weight | 915 g (2.02 lb) |
