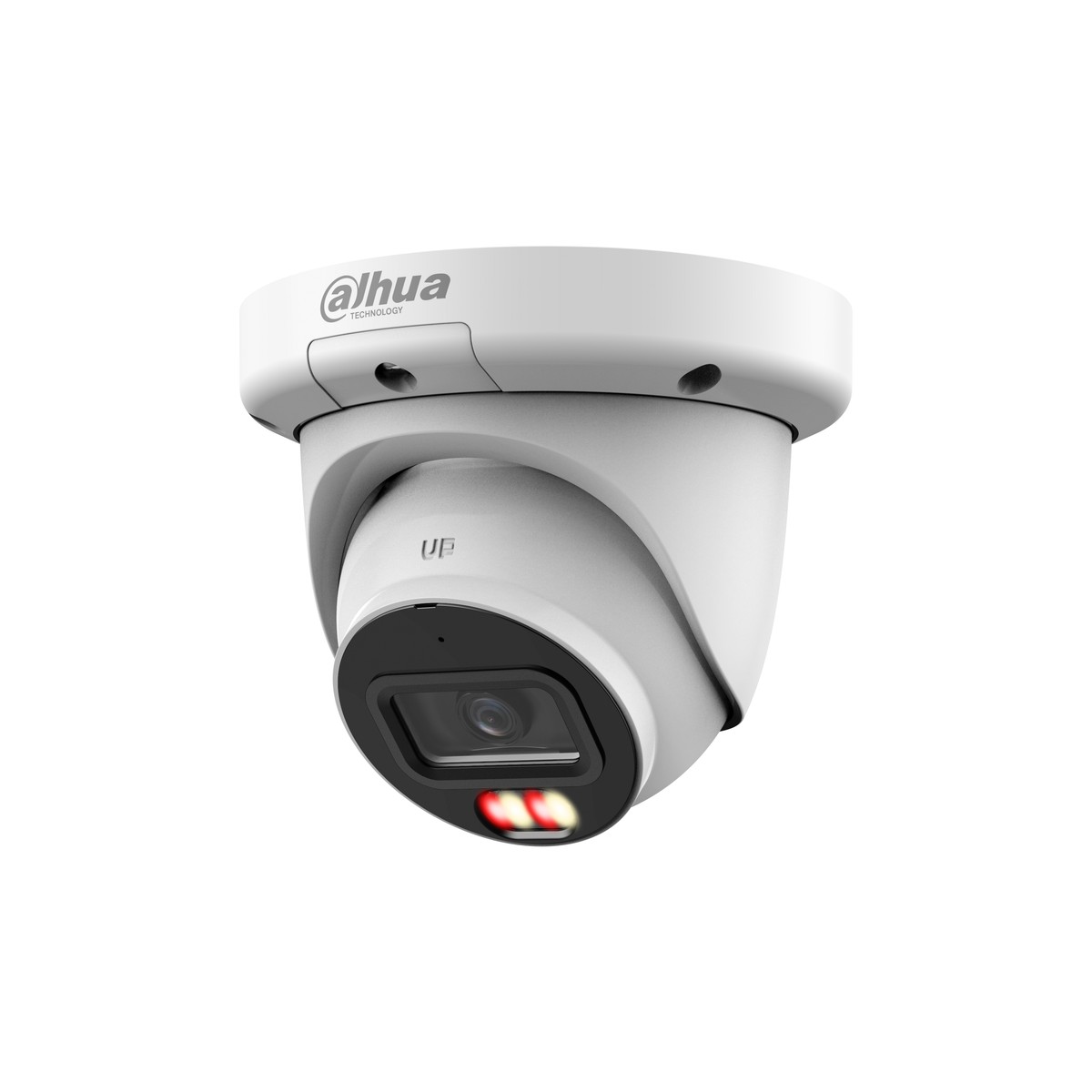

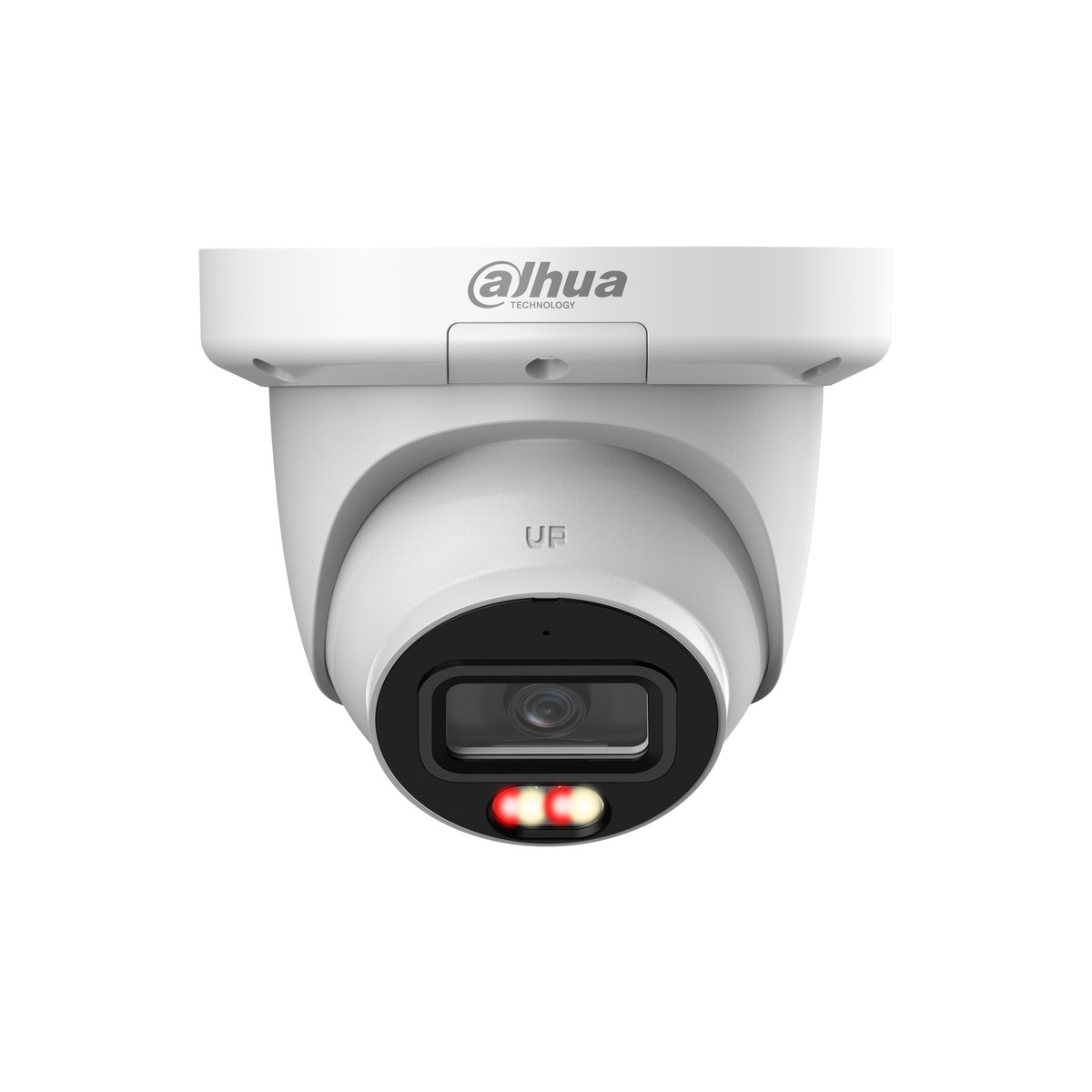

Telecamera eyeball IP AI WizSense Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/2.7″, risoluzione 6 MP (3288×1850) a 25/30fps, AI coding, H.265+, ottica fissa 2.8 mm o 3.6 mm F1.4, luminosità 0.005 lux F1.4 (0 lux con illuminatore acceso), illuminatore multi-core IR e luce calda fino a 30 m, microfono integrato, IVS (protezione perimetrale, stazionamento, loitering), face detection, SMD 4.0, AcuPick, AI SSA, WDR, 3D NR, HLC, BLC, micro SD card (512 GB), alimentazione 12 Vdc/PoE
Datasheet
Disegni
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F1.4 (Color, 30 IRE) |
| Min. Illumination | 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 30 m (98.43 ft) (IR) |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–80° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.4 2.8 mm: H: 110°; V: 58°; D: 132° |
| Field of View | 3.6 mm: H: 86°; V: 49°; D: 100° |
| Iris Control | Fixed 2.8 mm: 1.4 m (4.59 ft) |
| Close Focus Distance | 3.6 mm: 1.9 m (6.23 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human), stay detection, loitering detection |
| SMD | SMD 4.0 Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and |
| AcuPick | motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | parameters of the image to suit the conditions. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot |
| Face Detection (Full Image) | strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by sub stream) AI H.265; AI H.264 ， |
| AI Coding | *includes SmartCodec Technology Smart H.264+ / H.265+ Main stream: 3288 × 1850@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × |
| Resolution | 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR H.264: 3 kbps–16384 kbps; |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | |
| Browser | Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 3.7 W (12 VDC); 5.3 W (PoE); |
| Power Consumption | Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 105.5 mm × Φ122.0 mm (4.16" × Φ4.80") |
| Net Weight | 0.53 kg (1.17 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
| Ordering Information | |
| Type | Model Description 6MP Smart Dual |
| IP CAMERA | DH-IPC-HDW3649QM-S-IL Light Fixed-focal Eyeball WizSense Network Camera DH-PFB220C Ceiling Mount Bracket DH-PFA109 Mount Adapter DH-PFA151 Corner Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFB2203W Wall Mount Bracket |
| Accessories (Optional) | DH-PFA156 Pole Mount Bracket DH-PFA137 Junction Box DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card |
| Accessories | |
| DH-PFA109 | DH-PFA137 DH-PFA150 |
| Mount Adapter | Junction Box Pole Mount Bracket |
| DH-PFA151 | DH-PFA156 DH-PFB2203W |
| Corner Mount Bracket | Pole Mount Bracket Wall Mount Bracket |
| DH-PFB220C | DH-PFB305W DH-PFM320D-EN |
| Ceiling Mount Bracket | Wall Mount Bracket DC12V2A power adapter |
| Optional: | DHI-TF-P100/512GB PFM900-E |
| DC12V1A power adapter | MicroSD Card Integrated Mount Tester |
