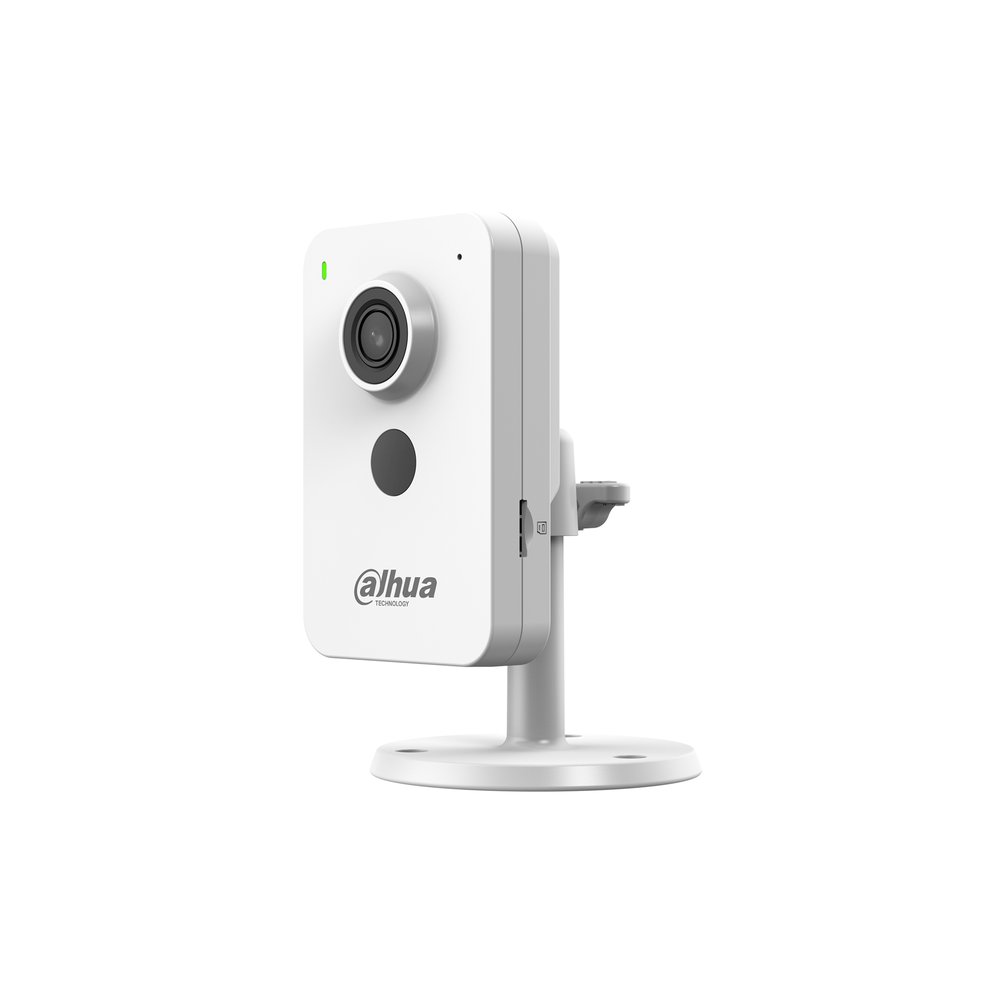

Telecamera cube IP/Wi-Fi da interno, sensore CMOS progressivo 1/3", risoluzione 4 MP a 25fps, H.265, ICR, ottica fissa 2.8 mm F2.0, portata IR fino a 30 m, connessione Wi-Fi 2.4 G, 1 porta di rete 10/100 Mbps, microfono e speaker integrati (comunicazione bidirezionale), AI human/vehicle detection, WDR, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc/PoE <5.85 W, alimentatore incluso, case in plastica
Datasheet
Manuali
| Ai Vehicle Detection | |
| Focuses on what matters and | Focuses on what matters and |
| reduces false alarms | reduces false alarms |
| Web | |
| Flexible power delivery & robust | Effortlessly handles device |
| network stability | management and configuration |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator Number | 1 (IR LED) Pan: 0° to 360° |
| Angle Adjustment | Tilt: -10° to 100° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 2.8 mm: H: 92°; V: 50°; D: 107° |
| Field of View | 3.6 mm: H: 75°; V: 41°; D: 88° |
| Intelligence | |
| Human Detection | Yes |
| Audio And Video | |
| Video Compression | supported by the sub stream) Main stream: 2560 × 1440@(1-25/30 fps) Sub stream: 640 × 360@(1-25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. H.264: 24 kbps–6144 kbps |
| Video Bit Rate | H.265: 9 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° Tools: Documents: Power: Installation Position QR Code×1 Power Adapter×1 Map×1 Quick Start Guide×1 Screw Package×1 Legal and Regulation Bracket×1 Information×1 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Ethernet Port (PoE) | DC12V Port Speaker |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412–2.472 GHz, 2.4 G |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | |
| Management Software | Smart PSS Lite;DMSS |
| Mobile Client | iOS;Android |
| Function | |
| Abnormal Sound Alarm | Yes |
| Certifications | |
| Power Supply | 12 VDC/PoE Basic: 2.04 W (12 VDC); 4.7 W (PoE) |
| Power Consumption | Max.: 2.89 W (12 VDC); 5.85 W (PoE) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Camera Button | Reset button |
| Casing Material | Plastic 64 mm × 100 mm × 34 mm (2.52" × 3.94" × 1.34") |
| Product Dimensions | (L × W × H) |
| Net Weight | 0.11 kg (0.24 lb) |
