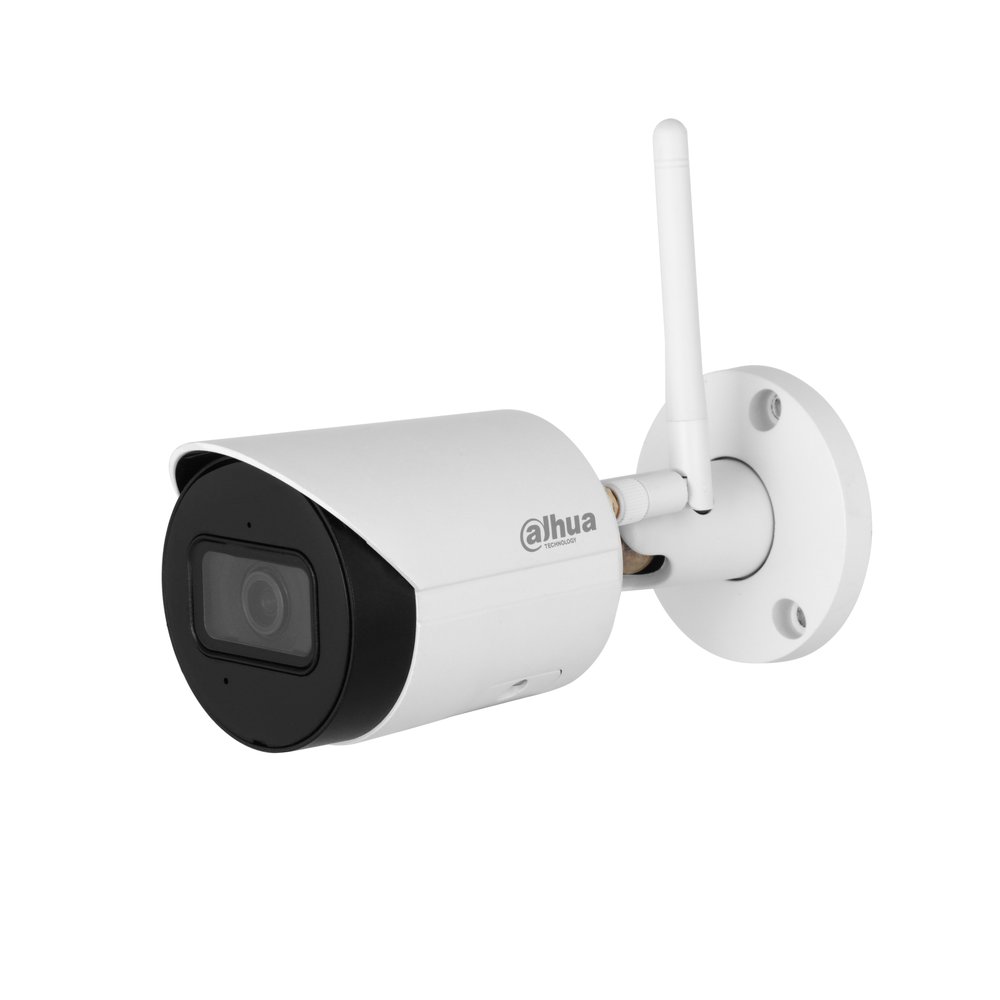

Bullet IP/Wi-Fi 4 MP 3.6 mm IR mic

Name: Bullet IP/Wi-Fi 4 MP 3.6 mm IR mic
Brand: Dahua
SKU: IPC-HFW1430DS-SAW
Price: 127.49 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW1430DS-SAW Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

127,49 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 254,98 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP/Wi-Fi da interno/esterno IP67, sensore CMOS progressivo 1/3", risoluzione 4 MP a 20fps, H.265+, ICR, ottica fissa M12 3.6 mm ƒ2.0, luminosità 0.03 lux F2.0, portata IR fino a 30 m, 1 porta di rete 10/100 Mbps, connessione Wi-Fi 2.4 G, microfono integrato, 3D NR, motion detection, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc <4.1 W, alimentatore incluso, case in metallo

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/3" CMOS
Max. Resolution	2560 (H) × 1440 (V)
ROM	16 MB
RAM	64 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.03 Lux@F2.0 (Color, 30 IRE)
Min. Illumination	0.003 Lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	30 m (98.43 ft) (IR LED)
Illuminator On/Off Control	Auto; manual
Illuminator Number	1 (IR LED) Pan: 0°–360°
Pan/Tilt/Rotation Range	Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F2.0 2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107°
Field of View	3.6 mm: Horizontal: 76°; Vertical: 40°; Diagonal: 92°
Iris Control	Fixed 2.8 mm: 1.0 m (3.28 ft)
Close Focus Distance	3.6 mm: 1.4 m (4.59 ft)
Dori
Distance	85.2 m 34.1 m 17.0 m 8.5 m 3.6 mm (279.53 ft) (111.88 ft) (55.77 ft) (27.89 ft)
Video
Video Compression	H.264B; H.264; H.264H; H.265
Smart Codec	Smart H.265+; Smart H.264+ Main stream: 2560 × 1440 (1–20 fps) Sub stream: 640 × 480@(1–25 fps)
Video Frame Rate	640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	2 streams 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 ×
Resolution	1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)
Bit Rate Control	CBR/VBR H264: 24 kbps–4096 kbps
Video Bit Rate	H265: 9 kbps–4096 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	DWDR Auto; natural; street lamp; outdoor; manual;
White Balance	regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/180°
Mirror	Yes
Audio
Built-in MIC	Yes
Alarm
Alarm Event	detection; video tampering;audio detection; intensity change
Network
Network Port	RJ-45 (10/100 Base-T)
Wi-Fi	IEEE802.11b/g/n 2.4~2.4835GHz Up to 80 m (The performance varies based on
Wireless Range	actual environment)
SDK and API	Yes Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation
Cyber Security	and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP;
Network Protocol	DNS; NTP; Multicast;
Interoperability	ONVIF (Profile S/Profile G); CGI; P2P
User/Host	6 (Total bandwidth: 36 M) Micro SD card (support max. 256 GB, sold
Storage
Browser	Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android
Power
Power Supply	12 VDC Basic: 2 W (12 VDC)
Power Consumption	Max. (H.265+IR intensity): 4.1 W (12 VDC)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–30 °C to +70 °C (–22 °F to +158 °F)
Protection	IP67
Structure
Casing	Metal 166.2 mm × 70.0 mm × 128.6 mm (6.53" × 2.76" ×
Product Dimensions	5.06")
Net Weight	477.9 g (1.05 lb)
Gross Weight	696.5 g (1.50 lb)
Ordering Information
Type	Model Description DH-IPC- 4MP IR Fixed-focal Wi-Fi Bullet Network HFW1430DSP-SAW-
Camera
4MP Camera	DH-IPC- 4MP IR Fixed-focal Wi-Fi Bullet Network HFW1430DSN-SAW-
Optional:
PFA134	PFA152-E PFM900-E
Junction Box	Pole Mount Integrated Mount Tester
