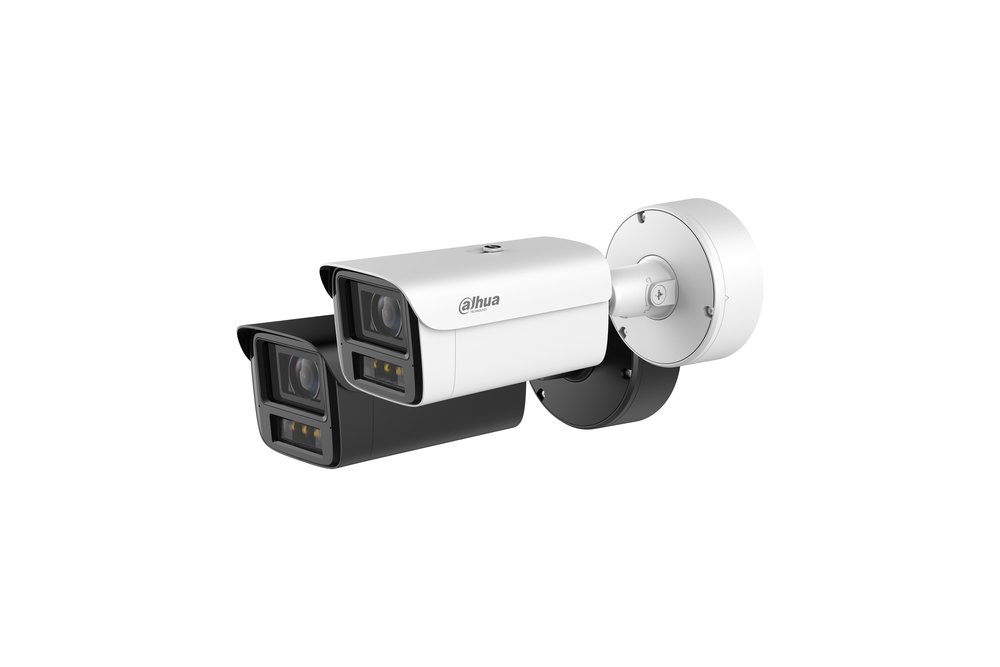

Bullet IP AI Smart Dual Light 4 MP 2.7~12 mm IR/LED mic

Name: Bullet IP AI Smart Dual Light 4 MP 2.7~12 mm IR/LED mic
Brand: Dahua
SKU: IPC-HFW7459Z1-Z-PV-X
Price: 1252.33 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW7459Z1-Z-PV-X Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

1.252,33 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 2.504,66 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP AI Xinghan WizMind X con Smart Dual Light e deterrenza attiva da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.8", risoluzione 4 MP a 75fps, AI coding, H.265+, ICR, ottica motorizzata 2.7~12 mm F1.0, luminosità 0.0003 lux F1.0, portata IR/warm light fino a 60 m, 3 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, 1 porta RJ-45 10/100/1000 Mbps, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), face detection/recognition, PPE detection, people counting, heat map, ANPR, parking space management, metadati video, privacy protection, privacy mask 4 mosaici + 8 blocchi colorati, 3D NR, WDR 150 dB, TPM 2.0, slot micro SD card (fino a 1 TB), alimentazione 12 Vdc/24 Vac/ePoE <21.8 W

Camera
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	8 GB
RAM	4 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.0003 lux@F1.0 (Color, 30 IRE)
Min. Illumination	0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB Up to 60 m (196.85 ft) (Warm light)
Illumination Distance	Up to 60 m (196.85 ft) (IR)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	4 (Multi-core (IR + warm) light) Pan: 0° to 360°
Angle Adjustment	Tilt: 0° to 90° Rotation: 0° to 360°
Lens
Lens Type	Motorized vari-focal
Lens Mount	Φ16
Focal Length	2.7 mm–12 mm
Max. Aperture	F1.0
Field of View	H: 98.5°–48°; V: 52.7°–27°; D: 117.5°–56°
Iris Control	Auto
Iris Control Type	P-Iris
Close Focus Distance	0.2 m (0.66 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
IVS	Abandoned object; missing object
Intelligence
Intelligence Notes	face recognition + people counting; PPE detection + Perimeter Protection; PPE detection + face detection; PPE detection + face recognition Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human), loitering detection, people gathering, parking detection, stay detection, abandoned
IVS (Perimeter Protection)	object, and missing object. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. Supports privacy protection. Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people,
AcuPick	animals, and motor vehicles, and search through live and recorded videos to quickly locate targets. Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as
Face Detection	face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; supports privacy protection for faces
Face Recognition	optmization time setting. support privacy protection for faces. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Oﬀers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers,
PPE Detection	shoes, safety vests, seatbelts, goggles, and aprons). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection for faces/human bodies. Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month);
People Counting	4 rules can be set for tripwire people counting, people counting in area, and queue management; supports privacy protection
Heat Map	Yes ANPR: ANPR, track, priority, snapshot. Vehicle atributes: License plate, vehicle type, vehicle color. Other atributes: Seat belt, smoking, calling.
ANPR	Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Supports privacy protection for vehicle bodies. Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple
Parking Space Management	areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles Motor vehicle, non-motor vehicle, face, human detection; track; snapshot; snapshot optimization; optimal face snapshot upload Generates flow statistics for people, motor vehicles, and non-motor vehicles based on the direction, and exports reports Motor vehicle attributes: License plate, vehicle type,
Video Metadata	vehicle color, vehicle logo, seatbelt, smoking, and calling Non-motor vehicle attributes: Type, color, number of people, top type and color, and hat Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella Supports privacy protection for faces, human bodies, and vehicle bodies Mosaics and frosted glasses can be automatically placed
Privacy Protection	over faces, human bodies and vehicles protect their privacy
Smart Search	Yes
Video
Video Compression	by sub stream) AI H.265; AI H.264
AI Coding	*Includes smart codec technology, Smart H.265+ and Smart H.264+ Default: Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) High Frame Rate: Main stream: 2688 × 1520@(1–75/90 fps)/1920 ×
Video Frame Rate	1080@(1–100/120 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	5 streams 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×
Resolution	720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR;ABR H.264: 32 kbps–10,240 kbps
Video Bit Rate	H.265: 12 kbps–10,240 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	150 dB
Scene Self-adaptation (SSA)	Yes Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Gyroscope Image Stabilization (GIS)
Smart Illumination	Yes
Smart Dual Light	Yes
Defog
Image Rotation	resolution and lower)
Mirror	Yes 4 mosaics + 8 color blocks (The color of every pure color
Privacy Masking	block can be set as one, including red, orange, yellow, green, cyan, blue, purple and black.)
LDC	Yes
Time-Division Exposure	Yes
Audio
Built-in MIC	Yes, built-in dual Mic Yes, built-in speaker;Max power consumption: 2 W; max
Built-in Speaker	sound level at 10 cm: 110 dB * Test results from laboratory
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security error; parking space management; PPE detection; tampering detection
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; DoLynk Cloud; Auto Registration
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host	20 (Total bandwidth: 340 M)
Storage
Browser	Chrome: Chrome 100 and later Firefox: Firefox 47.0.2 and later
Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted
Security	execution;Trusted upgrade;Session security;Security warning;AES 256;TPM 2.0 (FIPS 140-2 level 2);SSL/ TLS1.3
Function
Light Warning	Yes
Sound Warning	Yes Quickly removes water,ice,snow,and mist from the glass
Heater (Window Heating)	to keep images clear
Port
RS-485	1 (baud rate range: 1200 bps–115200 bps)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port) 3 channels in: supports wet contact connection (max
Alarm Input	load 5 mA 3–5 VDC); supports dry contact connection 2 channels out: dry contact, max load 1,000 mA 30
Alarm Output	VDC/500 mA 50 VAC
Analog Output	1 channel (CVBS output: BNC) 12 VDC power output, max. current 165 mA, peak
Power Output	current 700 mA
Power
Power Supply	port; PoE+ (802.3at) When the power adapter and PoE provide power at
Dual Power Backup	the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 8.2 W (12 VDC); 9.1 W (24 VAC); 11.4 W (PoE); Max.: 19.5 W (12 VDC); 20.9 W (24 VAC); 21.8 W (PoE)
Power Consumption	(ICR switch + IR intensity); Heating: 2.64 W (12 VDC); 2.96 W (24 VAC); 3.04 W (PoE)
ePoE	Yes
Environment
Operating Temperature	–40 °C to +65 (–40 °F to +149 °F)
Operating Humidity	≤ 95% (RH), non-condensing ℃
Storage Temperature	–40 °C to +65 (–40 °F to +149 °F)
Storage Humidity	10–95% (RH), non-condensing
Protection	IP67; IK10 Basic Protection *The products are designed for general use and are
Anti-corrosion Level	applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material	Casing: Metal; Sun cover: Plastic 345 mm × 137 mm × 134 mm (13.58" × 5.39" × 5.28")
Product Dimensions	(L × W × H)
Net Weight	2 kg (4.41 lb)
Gross Weight	3 kg (6.61 lb)
Ordering Information
Type	Model Description 4MP Smart Dual Light
IP CAMERA	DH-IPC-HFW7459Z1-Z-PV-X Bullet WizMind Network
Camera
Accessories (Optional)	PFM900-E Integrated Mount Tester DHI-TF-P100/1TB MicroSD Card
Accessories
DH-PFA154	DH-PFM320D-EN PFM900-E
Pole Mount Bracket	DC12V2A power adapter Integrated Mount Tester
