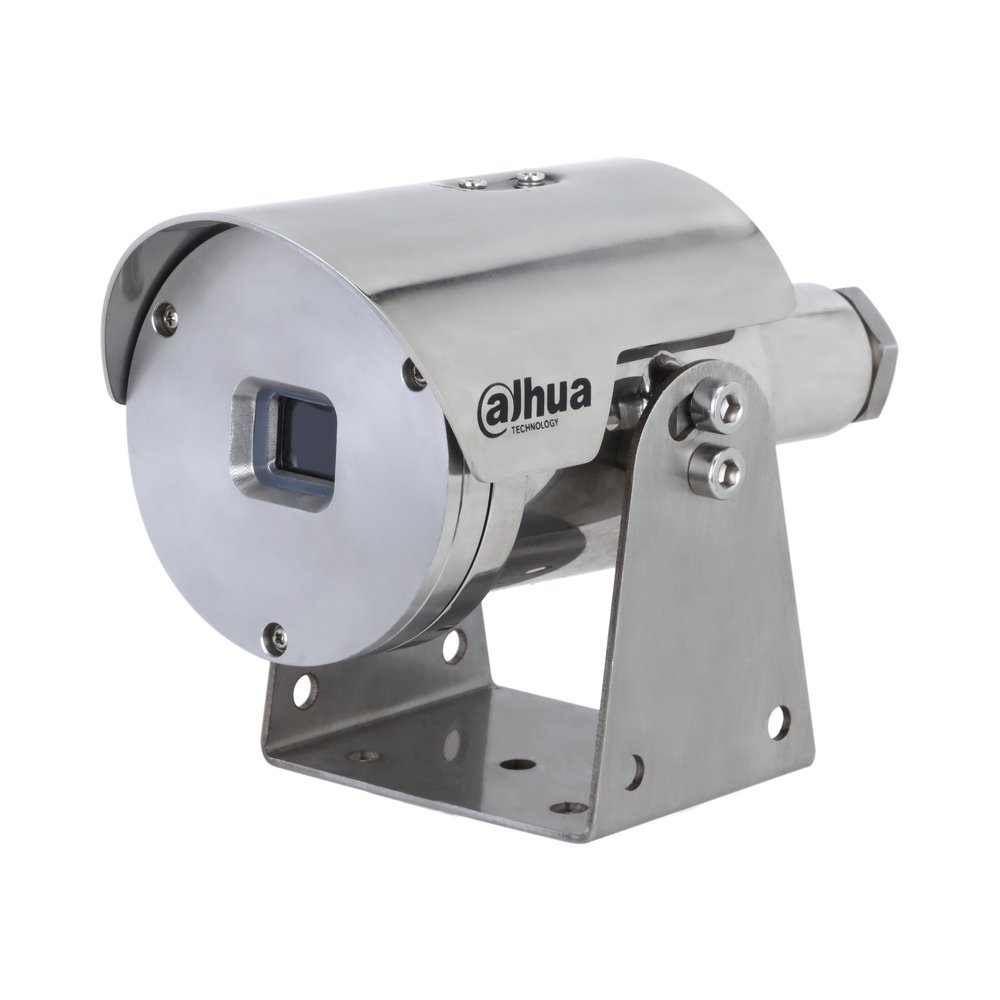

Bullet termica IP 256x192 7 mm temp. ATEX IECEx - immagine 1

Bullet termica IP 256×192 7 mm temp. ATEX IECEx

Name: Bullet termica IP 256x192 7 mm temp. ATEX IECEx
Brand: Dahua
SKU: TPC-AEBF5201-TB7-DW-S4-G
Price: 3612.42 EUR
Availability: BackOrder

Dahua

COD: TPC-AEBF5201-TB7-DW-S4-G Categoria: Telecamere IP speciali Tag: Termica

3.612,42 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 7.224,84 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet termica IP Explosion-proof ATEX IECEx da interno/esterno IP68, risoluzione termica 256×192, sensibilità 35 mK, ottica termica 7 mm, spettro visivo 8~14 µm, 1 porta LAN 10/100 Mbps, 2 ingressi e 1 uscita allarme, traccia punti caldi/freddi, rilevamento calore e temperature, alimentazione 12 Vdc/ePoE <3 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	256 (H) × 192 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤40 mK (@f/1.0)
Focal Length	3.5 mm; 7 mm 3.5 mm: H 50.6°; V: 37.8° :
Field of View	7 mm: H 24°; V: 18° :
Thermal Focus Control	F1.0
Digital Detail Enhancement	Yes
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180°; Mirror 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/
Color Palettes	painting/pomegranate/emerald /spring/summer/ autumn/winter) Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F)
Temperature	High temperature mode:
Measurement Range	+100 °C (+212 °F) to +550 °C (+1022 °F) Auto mode Max. (±2 °C, ±2%)
Temperature	Operating temperature:
Measurement Accuracy	–20 °C (–4 °F) to +50 °C (+122°F)
Temperature	Line: 12
Measurement Mode	Area: 12 Support 12 rules simultaneously
Audio And Video
Video Compression	H.264 (High, Main); M-JPEG; H.265 Main stream: 1280 × 960 ; 1024 × 768; 640 × 480; 256 ×
Resolution	192; 1280 × 960 (default) Sub stream: 640 × 480; 256 × 192; 256 × 192 (default) Thermal: 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
Video Frame Rate	default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Image Encoding Format	JPEG
Function
Network Protocol	SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Region of Interest (RoI)	Yes (customizable)
Storage
Interoperability	ONVIF; CGI IE: IE8 and the later, and explorer with IE core
Browser	Google: 42 and the earlier Firefox: 42 and the earlier
User/Host	Up to 6 (total bandwidth: 64 MB) Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management	levels): management group and user group Network disconnection detection; IP conflict detection;
Malfunction Detection	memory card state detection; memory space detection
Micro SD Card (Max.)	256 GB
Intelligence
Heat Detection	Yes
Cold/Hot Spot Trace	Yes
Port
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	1
Power
Power Supply	12 VDC, PoE (802.3af)
Power Consumption	<3 W
ePoE	Yes
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Physical Characteristics
Protection	IP68 Surge protection: 6 kV
Reliability	Air discharge of 15 kV Contact discharge of 8 kV
Structure
Product Dimensions	(L × W × H) 257 mm × 188 mm × 187 mm (10.12" × 7.4" × 7.36") (L
Packaging Dimensions	× W × H)
Net Weight	≤2 kg (4.41 lb)
Gross Weight	≤2.5 kg (5.51 lb)
Certifications
Explosion-proof	ATEX, IECEx:
certification	II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db
Focal Length	Min. Distance Max. Distance
3.5 mm	1 m (3.28 ft) 5 m (16.4 ft)
7 mm	2 m (6.56 ft) 8 m (26.25 ft)
Dri Distance
Focal Length	Distance Distance Distance ① ② ③ Vehicle: 447 m Vehicle: 112 m Vehicle: 56 m (1,466.54 ft); (367.45 ft); (183.73 ft);
3.5 mm	Human: 146 m Human: 36 m Human: 18 m (479.00 ft) (118.11 ft) (59.06 ft) Vehicle: 894 m Vehicle: 224 m Vehicle: 112 m (2,933.07 ft); (734.91 ft); (367.45 ft);
7 mm	Human: 292 m Human: 73 m Human: 36 m (958.01 ft) (239.50 ft) (118.11 ft)
Ordering Information
Type	Model Description DHI-TPC-AEBF5201-TB3-DW-S4 Thermal: 3.5mm
Thermography	DHI-TPC-AEBF5201-TB7-DW-S4 Thermal: 7mm PFB735W-316 Wall Mount ZANXG-1.5 (1.5 m) Flexible Tube
Accessories
(Optional)	CZ300 Juncton Box ZAEX02 Juncton Box
Optional:
PFB735W-316	ZANXG-1.5 (1.5 m) Juncton Box
Wall Mount	Flexible Tube
