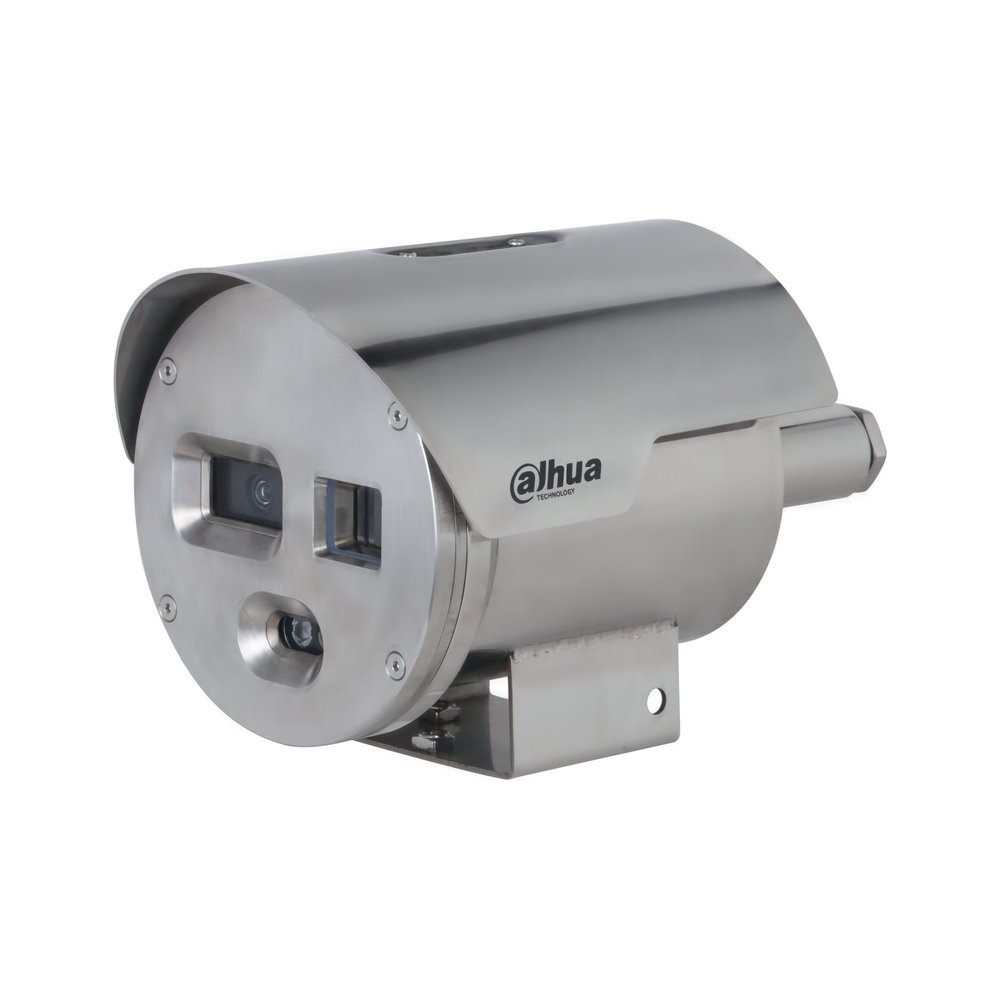

Bullet termica ibrida IP 640x512/4 MP 9/4 mm temp. ATEX IECEx - immagine 1

Bullet termica ibrida IP 640×512/4 MP 9/4 mm temp. ATEX IECEx

Name: Bullet termica ibrida IP 640x512/4 MP 9/4 mm temp. ATEX IECEx
Brand: Dahua
SKU: TPC-AEBF5641-TB9F4-DW-S2-G
Price: 10827.50 EUR
Availability: BackOrder

Dahua

COD: TPC-AEBF5641-TB9F4-DW-S2-G Categoria: Telecamere IP speciali Tag: Termica

10.827,50 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 21.655,00 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet termica ibrida IP Explosion-proof ATEX IECEx da interno/esterno IP68, risoluzione termica 640×512, sensibilità 40 mK, ottica termica 9 mm, spettro visivo 8~14 µm, sensore standard 1/2.7" 4 MP, ottica standard 4 mm, portata illuminazione fino a 30 m, 1 porta LAN 10/100 Mbps, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 RS485, protezione perimetrale (tripwire/intrusion), traccia punti caldi/freddi, rilevamento calore e temperature (12 regole punto/linea/area, range -20°~+150°/0~+550°), classificazione persone/veicoli, alimentazione 12 Vdc/ePoE <10 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	640 (H) × 512 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤40 mK (@f/1.0)
Focal Length	9 mm; 19 mm 9 mm: H: 48.3°; V: 38.6°
Field of View	19 mm: 22.8°; V: 18.3°
Thermal Focus Control	Fixed-focal 9 mm: 2.2 m (7.22 ft)
Close Focus Distance	19 mm: 15 m (49.21 ft)
Digital Detail Enhancement	Yes
Digital Zoom	24 levels
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180°; mirror; rotation mode 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/
Color Palettes	painting/pomegranate/emerald /spring/summer/ autumn/winter)
Temperature	High temperature mode:
Measurement Range	+100 °C (+212 °F) to +550 °C (+1022 °F) Auto mode Max. (±2 °C, ±2%)
Temperature	Operating temperature: –20 °C (–4 °F) to +50 °C
Measurement Accuracy	(+122°F) Spot: 12
Temperature	Line: 12
Measurement Mode	Area: 12 Support 12 rules simultaneously
Visible
Image Sensor	1/2.7" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Pixel	4 MP
Horizontal Definition	≥1100 TVL Color: 0.01 lux
Min. Illumination	Black & white: 0.001 lux 0 lux (white light on)
Visible AGC	Auto/Manual
Visible Noise Reduction	2D NR/3D NR
S/N Ratio	>55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp;
White Balance	street lamp; natural
Defog
Electronic Shutter Speed	1 s–1/30,000 s (auto/manual)
BLC	Yes
WDR	Yes
HLC	Yes
Day/Night	Auto (ICR); Color; B/W
Iris Control	Fixed
Image Flip	180°; mirror; rotation mode
Exposure Compensation	Yes
Visible Focus Control	Fixed-focal
Focal Length	4 mm; 8 mm 4 mm: H: 90.1°; V: 48.2
Field of View	8 mm: H: 41.3°; V: 23.1° 4 mm: 1.5 m (4.92 ft)
Close Focus Distance	8 mm: 4.4 m (14.44 ft)
Aperture	F2.0
Illuminator On/Off Control	Auto; manual
Illumination Distance	30 m (98.43 ft)
Audio And Video
Video Compression	H.265; H.264M; H.264H; H.264B Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default); Sub stream: 640 × 512; 320 × 256; 640 × 512 (default)
Resolution	Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default); Sub stream: 704 × 576; 352 × 288; 704 × 576 (default) Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default
Video Frame Rate	Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default
Audio Compression	PCM; G.711a; G.711mu; AAC
Image Encoding Format	JPEG
Function
Two-way Audio	Yes
Sound and Light Alarm	Local audio and white light alarm prompts IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP;
Network Protocol	SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Storage
Micro SD Card (Max.)	512 GB
Interoperability	ONVIF; CGI
Browser	IE; Firefox; Chrome
User/Host	Up to 12 (total bandwidth: 64 MB) Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 20 users; supports multi-level user permissions (2
User Management	levels): management group and user group Network disconnection detection; IP conflict detection;
Malfunction Detection	memory card state detection; memory space detection
Fusion Mode	Yes. Disabled by default.
PIP	Yes
Intelligence
Cold/Hot Spot Trace	Yes
Perimeter Protection	Yes. Supports tripwire and intrusion.
Target Distinction	Human/Vehicle Classification
Port
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	2
Audio Input	1
Audio Output	1
RS-485	1
Power
Power Supply	12 VDC ± 20%, PoE (802.3af) Basic: 5 W
Power Consumption	Max: 10 W
ePoE	Yes
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Physical Characteristics
Protection	IP68 Surge protection: 6 kV
Reliability	Air discharge of 15 kV Contact discharge of 8 kV
Structure
Product Dimensions	(L × W × H) Package: 330 mm × 256 mm × 256 mm (12.99" × 10.08" × 10.08") (L × W × H)
Packaging Dimensions	Protection box: 535 mm ×535 mm ×360 mm (21.06" ×21.06" × 14.17") (L × W × H)
Net Weight	≤5.8 kg (12.79 lb)
Gross Weight	≤6.8 kg (14.99 lb)
Certifications
Explosion-proof	ATEX, IECEx :
certification	II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db
Heat Detection Distance
Focal Length	Max. Distance
9 mm	540 m (1,771.65 ft)
19 mm	1,140 m (3,740.16 ft)
Focal Length	Min. Distance Max. Distance
9 mm	1 m (3.28 ft) 5 m (16.4 ft)
19 mm	3 m (9.86 ft) 15 m (49.21 ft)
Dri Distance
Focal Length	Distance Distance Distance ① ② ③ Vehicle: 1,150 m Vehicle: 288 m Vehicle: 144 m (3,772.97 ft); (944.88 ft); (472.44 ft);
9 mm	Human: 94 m Human: 47 m Human: 375 m (308.40 ft) (154.20 ft) (1,230.31) Vehicle: 2,428 m Vehicle: 607 m Vehicle: 303 m (7,965.88 ft); (1,991.47 ft); (994.09 ft);
19 mm	Human: 792 m Human: 198 m Human: 99 m (2,598.43 ft) (649.61 ft) (324.80 ft)
Ordering Information
Type	Model Description DHI-TPC-AEBF5641-TB9F4-DW- Thermal: 9mm; S2-G
Thermography	DHI-TPC-AEBF5641-TB19F8-DW- Thermal: 19mm; S2-G EXB100 Wall mount ZAZ100W Universal Joint
Accessories
(Optional)	CZ300 Juncton Box ZAEX02 Juncton Box
Optional:
EXB100	ZAZ100W ZANXG-1.5 (1.5 m)
Wall Mount	Universal Joint Flexible Tube
CZ300	ZAEX02
Juncton Box	Juncton Box
