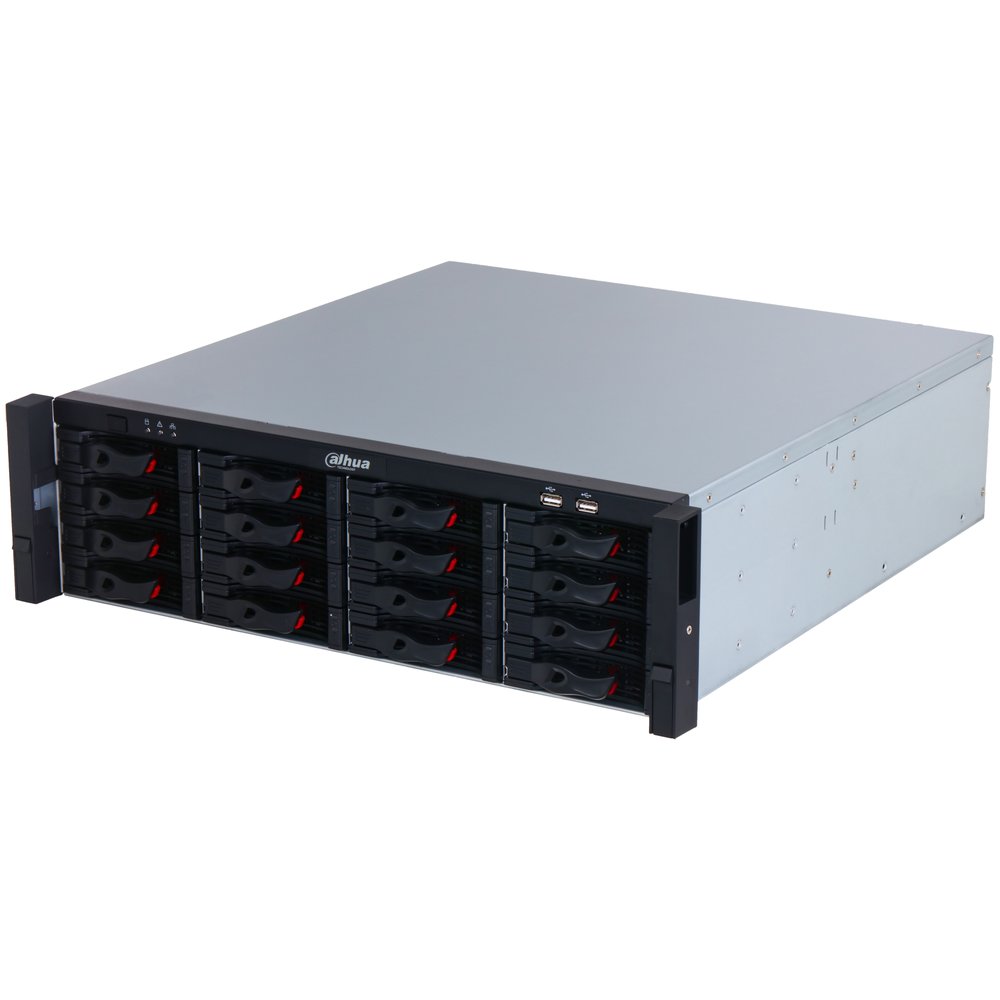

NVR AI IP 64 ch 16 HDD 3U
4.386,51 € IVA inclusa
NVR AI WizMind 64 canali IP fino a 32 MP (recording), 8 canali 8 MP/32 canali 1080p (decoding), massima banda 1280 Mbps, 6 uscite video (2 VGA + 4 HDMI), 32 ingressi e 16 uscite allarme, 1 ingresso e 2 uscite (RCA) audio, predisposto per montaggio di 16 Hard Disk SATA (fino a 20 TB cad.), RAID 0/1/5/6/10, Hot Swapping, 4 porte USB (2 2.0 e 2 3.0), 1 porta eSATA, 1 porta RS232, 2 porte RS485, 4 porte LAN 10/100/2500 Mbps, 32 canali protezione perimetrale, 8 canali face detection/recognition, 32 canali SMD Plus, 8 canali metadati video, 64 canali AcuPick, 3U, alimentazione 100-240 Vac <25 W (senza HDD)
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Ai | |
| AI by Recorder | (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; PPE Detection Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); |
| AI by Camera | perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| by Recorder (Number of | 8 channels |
| by Camera (Number of | All channels (64 targets/s) |
| Perimeter Protection | |
| Perimeter Performance AI | Heterogeneous mode: 24 channels, 10 IVS rules for |
| by Recorder (Number of | each channel |
| Channels) | Refer to the information on video output for details on the mode |
| AI by Camera (Number of | All channels (64 targets/s) |
| Face Detection | |
| Face Attributes | 6 attributes Simultaneous mode: 8 channels (up to 12 face images/s |
| Face Detection | each channel) |
| Performance of AI by | Heterogeneous mode: 5 channels (up to 12 face |
| Recorder (Number of | images/s each channel) Refer to the information on video output for details on |
| Channels) | the mode |
| Performance of AI by | All channels (64 targets/s) |
| Face Recognition | |
| Face Database Capacity | total capacity of 48 G. Simultaneous mode: 32-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s; 8- channel FD (by recorder) + FR (by recorder), video |
| Face Recognition | stream: 16 face images/s |
| Performance of AI by | Heterogeneous mode: 16-channel FD (by camera) + |
| Recorder (Number of | FR (by recorder),image stream: 16 face images/s; 5- channel FD (by recorder) + FR (by recorder), video |
| Channels) | stream: 10 face images/s Refer to the information on video output for details on the mode |
| Performance of AI by | All channels (64 targets/s) |
| Smd Plus | |
| SMD Plus by Recorder | vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (128 targets/s) |
| Video Metadata | |
| AI by Recorder (Number of | 8 channels, 23 attributes extraction. |
| AI by Camera (Number of | All channels (64 targets/s) |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle | 4 attributes |
| ANPR by Camera (Number | All channels (64 targets/s) |
| License Plate Database | 1. Up to 20,000 plate numbers. |
| Capacity | 2. Blocklist and allowlist |
| Audio And Video | |
| Access Channel | 64 channels AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing |
| Network Bandwidth | AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p;960p;D1;CIF AI disabled: 2-channel 32 MP@30 fps; 3-channel 24 MP@30 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 40-channel 1080p@30 fps; 64-channel 720p@30 fps |
| Decoding Capability | AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 5-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 36-channel 720p@30 fps; 64-channel D1@30 fps |
| Video Output | resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p Heterogeneous mode (simultaneously outputs video sources for the VGA1 and HDMI1, or VGA2 and HDMI2. It also outputs heterogeneous video sources for HDMI1–4) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1, HDMI2 and HDMI3 is 4K; max. resolution of HDMI4 is 1080p Main Screen: 1/4/8/9/16/25/36/64 |
| Multi-screen Display | Sub Screen: 1/4/8/9/16/25/36 ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; |
| Third-party Camera Access | Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Network Mode | Multi-address; load balance; fault tolerance |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Storage | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| Alarm | |
| General Alarm | external alarm; network alarm; scene changing; PIR alarm; thermal alarm Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network |
| Anomaly Alarm | disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection Face detection; face and body detection; face |
| Intelligent Alarm | recognition; perimeter protection; SMD; video |
| Intelligent Alarm | heat map Record; snapshot (panoramic); local alarm output; IPC |
| Alarm Linkage | external alarm output; audio; buzzer; log, preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 32 channels |
| Alarm Output | 16 channels 16 SATA ports, each disk can contain up to 20 |
| Disk Interface | TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 2 (1 port for half-duplex serial communication, 1 port |
| RS-485 | for full-duplex serial communication) |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 4 |
| VGA | 2 |
| Network Port | 4 (10/100/2500 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50±2% Hz |
| Power Consumption | <25 W (without HDD) |
| Net Weight | 11.95 kg (26.35 lb) |
| Gross Weight | 16.14 kg (35.58 lb) 485.0 mm × 508.3 mm × 133.2 mm (19.09" × 20.01" × |
| Product Dimensions | 5.24") (W × D × H) 634.0 mm × 709.0 mm × 429.0 mm(24.96" × 27.91" × |
| Packaging Dimensions | 16.89") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; |
| Ordering Information | |
| Type | Model Description |
| AI Network Video | 64CH 3U 16HDDs WizMind DHI-NVR616H-64-XI |
| Recorder | Network Video Recorder DHI-ARB1606 Alarm Box 4 Bay eSATA Extension ESS1504C |
| Accessories (Optional) | Cabinet DHI-RailBracket60/L- Dahua Server Cabinet Rail Shaped Bracket |
| Accessories | |
| Optional: | DHI-RailBracket60/L- ESS1504C |
| DHI-ARB1606 | Shaped 4 Bay eSATA Extension |
| Alarm Box | Dahua Server Cabinet Rail Cabinet Bracket |
