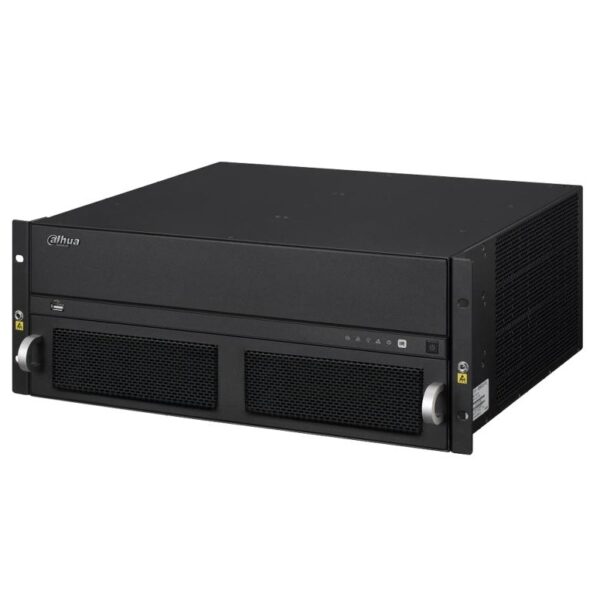

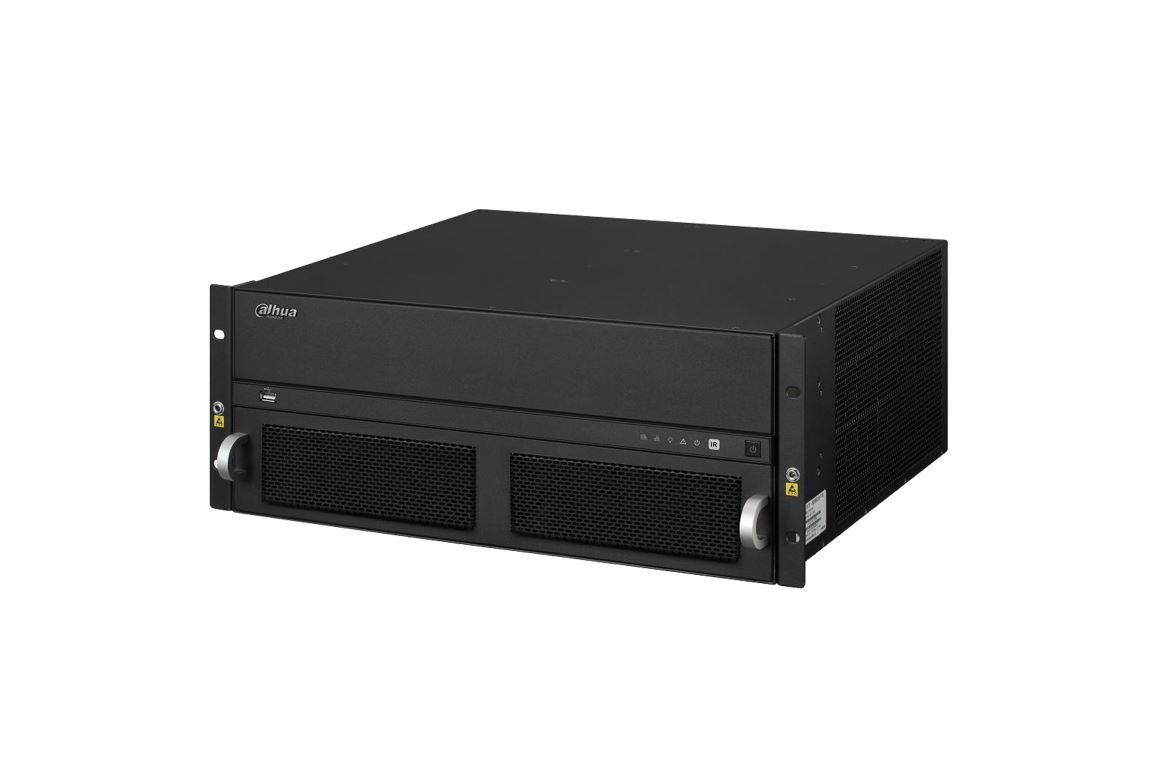

Mainframe per matrice video 4U, 12 slot (2 per scheda di controllo + 10 per audio e video), 6 porte Gigabit RJ45, 4 RS232, 1 RS485, 4 porte USB (3 2.0 e 1 3.0), alimentazione 100~240 Vac <600 W
Datasheet
Manuali
| Model | |
| Model | M70-4U-E |
| System Parameter | |
| Main Processor | Quad-core embedded microprocessor |
| Operating System | Embedded LINUX |
| Bus | PCI-E 12(2 Main Control Board Slot, 10 Video and Audio Function |
| Slot | Board) Power module (redundant power optional), main control |
| Mainframe | board, control board, PCI-E bus rear panel, smart temperature controlled fan |
| Video Input Card | Max. 10 |
| Video Output Card | Max. 10 |
| Interface | |
| VIC0201UH-M70 | (HDMI) Access Capability 2ch@4K, downward compatibility |
| VEC0404HH-M70 (HDMI) | 4CH@1080P, support Encoding Capability resolution: 1080P/720P/UXGA/ SXGA+/SXGA/XGA/SVGA/VGA 4ch DVI-I (HDMI & VGA with |
| Interface | |
| VEC0404HD-M70 (DVI) | 4CH@1080P, support resolution: Encoding Capability 1080P/720P/UXGA/SXGA+/ SXGA/XGA/SVGA/VGA |
| Interface | |
| VDC0605H-M70(HDMI) | 3840*2160@30fps, 1920*1080@60fps, Output Resolution 1280*1024@60fps, 1280*720@60fps, 1024*768@60fps Split 1/4/6/8/9/16/25/36, free split |
| Video-Wall | |
| Splicing | Video Output HDMI Audio Output HDMI (embedded) WEB/Local GUI/Video Platform/ Control Mode Network Keyboard/iPad |
| Interface | |
| Serial Port | 1 RS485 port |
| USB | 3 USB2.0, 1 USB3.0 |
| Environmental | |
| Power Supply | 100~240V AC, 50/60Hz |
| Power Consumption | ≤600W |
| Working Environment | -10°C ~+50°C / 10~90%RH / 86~106kpa 4U, 482.6 × 437.0 ×177.0mm(19.0 × 17.2 × 7.0 inch), |
| Dimension | (W*D*H) |
| Weight | ≤25Kg (full configured) |
| Ordering Information | |
| Type | Part Number Description DHI-M70-4U-E 4K, H.265 Decoding |
| Video | |
| Platform | M70-4U-E 4K, H.265 Decoding |
