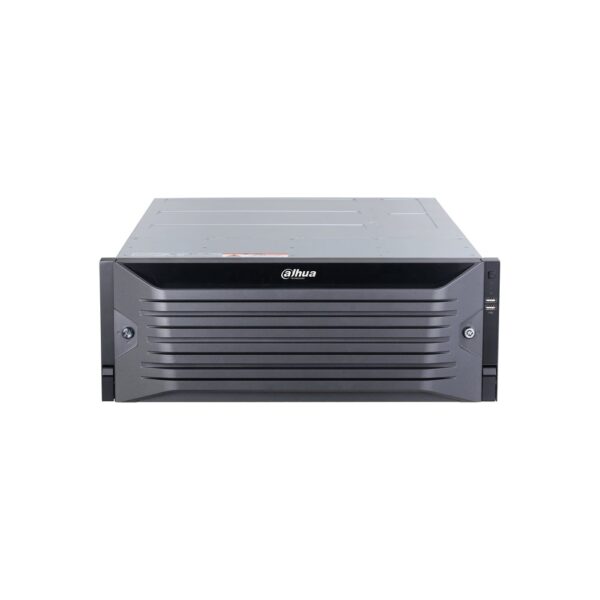

EVS IP 1024 ch 36 HDD 4U ridondante fibra ottica 10G

Name: EVS IP 1024 ch 36 HDD 4U ridondante fibra ottica 10G
Brand: Dahua
SKU: EVS8236X-10G
Price: 22326.61 EUR
Availability: BackOrder

Dahua

COD: EVS8236X-10G Categoria: Accessori e storage videosorveglianza

22.326,61 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 44.653,22 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Embedded Video Storage IP single controller, massima banda 2048 Mbps, fino a 1024 canali IP, predisposto per montaggio di 36 dischi (fino a 18 TB cad.), Hot-Swap, RAID 0/1/5/6/10/50/60, JBOD, 4 porte LAN 1000 Mbps + 1 1000 Mbps (gestione), estensione di rete con 4 porte fibra ottica 10 Gigabit, 1 porta eSATA, 4 porte USB (2 3.0 e 2 2.0), 1 porta RS232, 1 porta VGA (debug), 4U, alimentazione ridondante 100~240 Vac <700 W

System
Main Processor	Dual 64-bit high-performance multi-core processor
Operating System	Embedded LINUX OS
Operating Interface	Web (PCAPP)
Controller	Single controller
Cache	16 GB by default (extendable to 256 GB)
Ai Applications
AI by Camera	vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection)
Thermal
People Counting	people counting and queue people counting Works with camera for manual tracking, auto tracking,
Bullet-PTZ Smart Track	click positioning and select positioning
Fisheye Dewarp	Supports dewarping for fisheye cameras
Cluster
Cluster	N+M
Audio And Video
Access Channel	1024
Multi-screen Display	Customized display, max 16-channel PCAPP live view
Third-party Camera	ONVIF; RTSP; Sony; Panasonic; Axis; Arecont; Pelco;
Access	Canon; Samsung
Compression Standard
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711A; G.711U; PCM; G726
Network
Network Protocol	DHCP; DNS; DDNS; iSCSI; FTP; SMB; NFS; UPnP; SNMP; IPv6
Interoperability	ONVIF (Profile S); CGI; SDK
Browser	Chrome; PCAPP; IE9 or higher; Firefox Multiple-address mode;Load balance;Fault-
Network Mode	tolerance;Link aggregation
Recording Playback
Multi-channel Playback	Web playback, max. 16-channel playback
Record Mode	Auto record; manual record; motion detection; IO alarm
Storage Method	Internal HDD Peripheral eSATA storage device; peripheral USB storage
Backup Method	device 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame
Playback Function	2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off
Storage
Video Direct Storage	Recording: 1024-channel (bandwidth: 2048 Mbps)
(Private Protocol)	Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 1024-channel (bandwidth: 2048 Mbps)
Video Direct Storage	Recording: 1024-channel (bandwidth: 2048 Mbps)
(Onvif)	Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 1024-channel (bandwidth: 2048 Mbps)
Video Direct Storage (Auto	Recording: 1024-channel (bandwidth: 2048 Mbps)
Register)	Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 400-channel (550 KB/picture)
Picture Direct Storage	Recording: 400-channel (550 KB/picture) Outgoing: 400-channel (550 KB/picture)
Disk Group	Yes
RAID	RAID0; RAID1; RAID5; RAID6; RAID10; RAID50; RAID60 Supports record control (continuous, event-based,
Record Management	scheduled, scheduled & event-based)
Storage Pool	Yes
Ipsan
IPSAN Performance	24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB)
Alarm
General Alarm	Motion detect; tampering; IPC external alarm IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock;
Anomaly Alarm	fan malfunction; no HDD; power exception; disk health exception; RAID exception; low quota space; storage pool exception; temperature alarm; share service Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking
Alarm Linkage	and warning light. Disarming alarm linkage action by period or one-click sync disarm configuration with channels
Port
HDD Interface	hot swapping CMR support enterprise-grade HDD
eSATA	1 port
RS-232	1 port
USB	2 × USB3.0 and 2 × USB2.0
VGA	1 port, only for debug
Network Port	1 × 1-GbE management port; 4 × 1-GbE LAN ports
Power
Network Port Extension	4×10-GbE optical fiber ports (optional)
General
Disk Bay	36
Form Factor	4U
Power Supply	100–127 VAC/200–240 VAC, 50/60 Hz Working(all HDDs connected): ≤ 500W(1706 BTU/hr)
Power Consumption	Working(without HDD): ≤ 200W(682 BTU/hr) Rated: ≤ 800W(2730 BTU/hr)
Fan	Intelligent speed regulation fan
Net Weight	30 kg (66.14 lb)
Gross Weight	45 kg (99.21 lb) 737 mm × 483 mm (with hanger) × 175 mm (29.02" ×
Product Dimensions	19.02" × 6.89") (L × W × H)
Operating Temperature	0 °C to 45 °C (+32 °F to +113 °F)
Operating Humidity	10%–80% (RH), non-condensing
Operating Altitude	5000 m (16404.20 ft)
Installation	Standard 19 inch rack CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
Ordering Information
Type	Model Description
Embedded	Dahua 1024CH 36-bay 4U Embedded
Panels
1	2 3 4 5 6 7
Power Input	Network Port
1	2
3	4 VGA Port
Port
5	6
eSATA Port	USB
