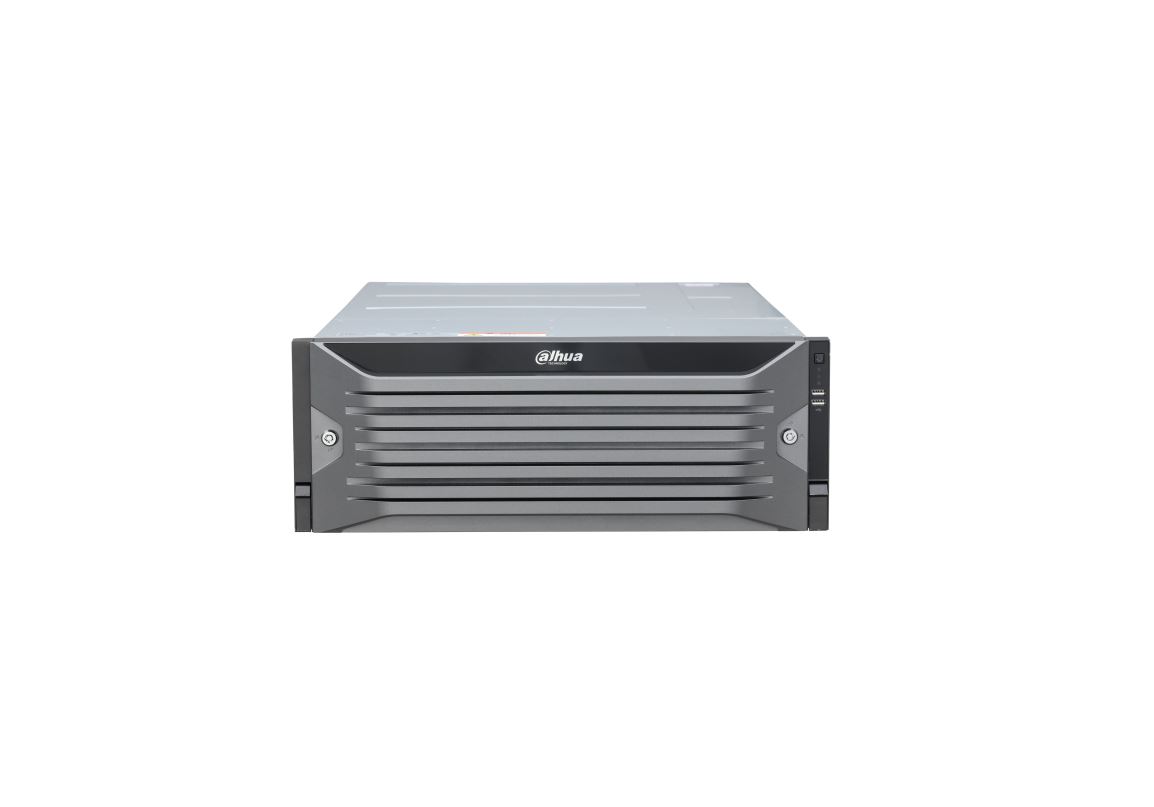

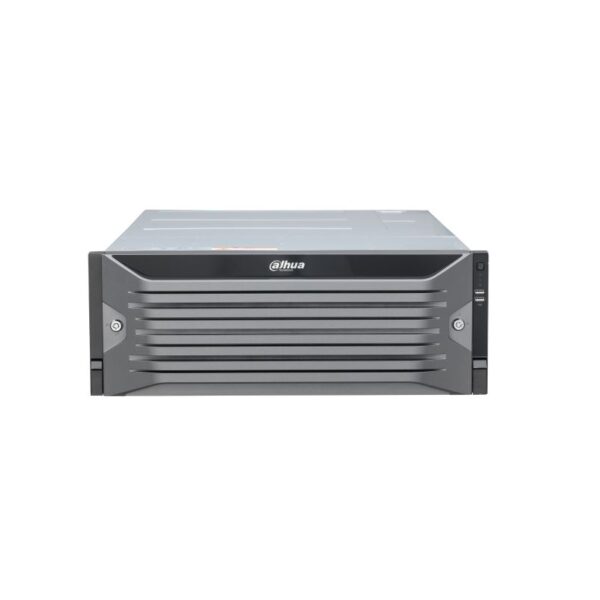

EVS IP 512 ch 24 HDD 4U ridondante
9.636,17 € IVA inclusa
Embedded Video Storage IP single controller, massima banda 1024 Mbps, fino a 512 canali IP, predisposto per montaggio di 24 dischi (fino a 16 TB cad.), Hot-Swap, RAID 0/1/5/6/10/50/60, JBOD, 4 porte LAN 1000 Mbps + 1 1000 Mbps (gestione), 1 porta eSATA, 2 mini SAS, 1 porta RS232, 1 porta HDMI, 4U, alimentazione ridondante 100~240 Vac <500 W
| System | |
| Main Processor | 64-bit multi-core processor |
| Operating System | Embedded Linux |
| Operation Interface | Web |
| Controller | Single controller |
| RAM | 8 GB by default (extendable to 64 GB) |
| Power Redundancy | 1+1 |
| External Ports | |
| SAS | 12Gb/s |
| Network | |
| Network Extension | ports are optional |
| eSATA | 1 × eSATA |
| RS-232 | 1 × DB9 |
| HDMI | 1 × HDMI |
| Internal Expansion | |
| M.2 SSD | 2 × NVMe SSD ports |
| PCI-E | 1 × PCI-E X8; 1×PCI-E X4 |
| Disk | 1 × 2.5 inch SATA |
| Disk | |
| Disk Bay | 24 1TB; 2TB; 3TB; 4TB; 6TB; 8TB; 10TB; 12TB; 14TB; 16TB; 18TB; 20TB |
| Disk Type | 2.5-inch and 3.5-inch HDD Support simultaneously connecting to SATA/SAS |
| Disk Installation | Independent disk tray |
| Hot Swapping | Support |
| RAID Type | RAID0, 1, 5, 6, 10, 50, 60, JBOD, Hot-Spare |
| Disk Processing | Dad sector mapping |
| Disk Management | Non-working disks automatic sleep |
| Disk Inspection | Inspection before use and during use |
| Performance | |
| Video Direct Storage (Private | and forwarding; 32-channel (64 Mbps) online |
| Protocol) | playback Up to 512-channel (1024 Mbps) access, storage, |
| Video Direct Storage (ONVIF) | and forwarding; 32-channel (64 Mbps) online playback Up to 512-channel (1024 Mbps) access, storage, |
| Video Direct Storage (Auto | and forwarding; 32-channel (64 Mbps) online |
| Register) | playback Up to 512-channel access, storage, and |
| Picture Direct Storage | forwarding (250 KB/Picture) 360-channel × 2 Mbps video stream writing and |
| IPSAN Performance | 24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB) |
| Function | |
| IPSAN Mode | Yes |
| IPSAN Function | Dynamic online extension of logic volumes |
| Video Storage | Direct storage RTP; RTCP; RTSP; UDP; HTTP; NTP; SNMP; iSCSI; |
| Network Protocol | FTP; SMB; NFS |
| RTSP | ONVIF |
| Cluster | N+M |
| Automatic Network | Videos during network failure upload to EVS |
| Replenishment (ANR) | automatically afterwards Multiple-address, link aggregation, |
| Network Mode | fault-tolerance, load balance |
| Quick RAID | Yes |
| RAID Instant Use | Yes |
| RAID Rebuilding | Self-adaptive rebuilding |
| RAID-write Synchronization | Yes Scheduled, manual, motion-triggered and alarm |
| Record Mode | triggered Web playback, concentrated playback, slice playback, synchronous playback |
| Video Playback | Search video by second Adjustable playback speed Access by cameras with encoding formats of MPEG4, MJPEG, H.264, H.265, and SVAC |
| Video Codec | Access by multi-sensor cameras, thermal cameras, and panoramic cameras |
| Video Backup | Back up video through USB, network, and eSATA |
| General | |
| Power Supply | 100–127V/200–240 VAC, 50/60 Hz, 5A/2.5A |
| Fan | Dual ball-bearing fans <80 W (without HDD, idling) |
| Power Consumption | <500 W (all HDDs connected) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 10%–80% (RH) (non-condensation) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 5%–90% (RH) (non-condensation) |
| Operating Altitude | ≤ 5000 (16,404.20 ft) m CE: EN 55024; EN 55032; EN 55035; EN 50130-4; |
| Certifications | |
| Chassis | Independent developed pull-out disk tray With hanger: 482.6 mm × 175 mm × 736.5 mm (19" × 6.89" × 29") (W × H × D) |
| Dimensions | Without hanger: 446 mm × 175 mm × 736.5 mm (17.56" × 6.89" × 29") (W × H × D) |
| Net Weight | 29 kg (63.93 lb) |
| Gross Weight | 44 kg (97 lb) |
| Installation | Standard 19 inch rack |
| Ordering Information | |
| Type | Model Description |
| 24-bay EVS | DHI-EVS7124S 24-bay Embedded Video Storage |
| 24-bay ESS | ESS3124S-JR 24-bay Expansion Storage Cabinet |
Informazioni addizionali
Prodotti Correlati

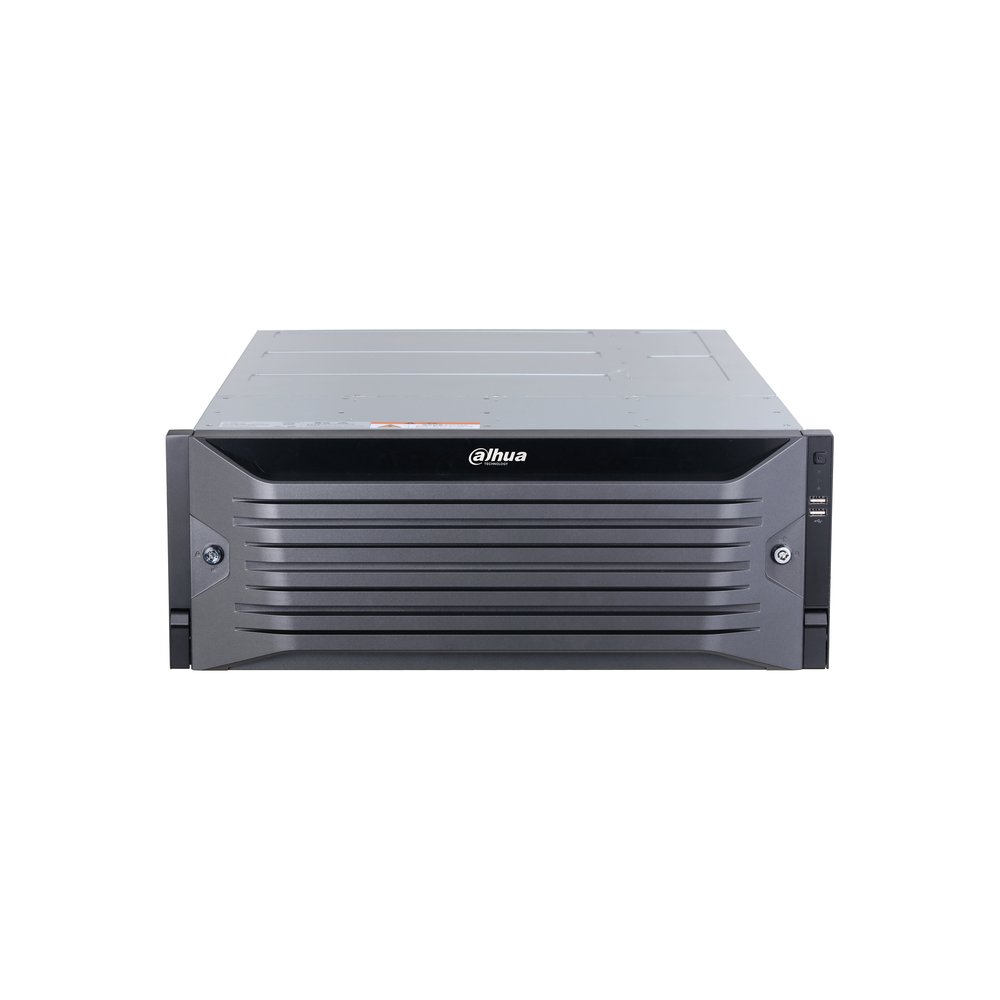

EVS IP 1024 ch 24 HDD 4U ridondante fibra ottica 10G
18.409,19 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS8224X-10G
EVS IP 1024 ch 36 HDD 4U ridondante fibra ottica 10G
22.326,61 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS8236X-10G
EVS IP 320 ch 16 HDD 3U
3.937,55 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS5016S-V2
EVS IP 320 ch 16 HDD 3U ridondante
4.757,39 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS5016S-R-V2
EVS IP 512 ch 24 HDD 4U ridondante fibra ottica 10G
11.299,64 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS7124S-10G

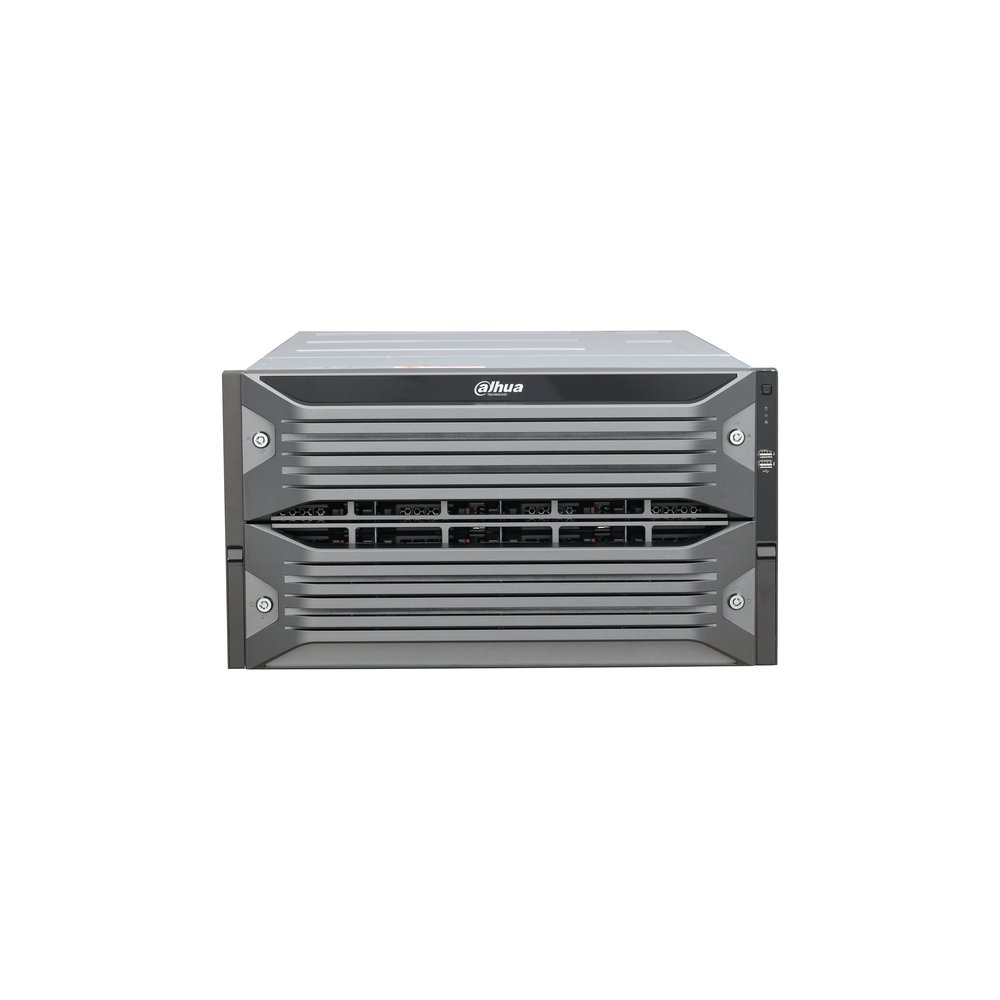

EVS IP 512 ch 48 HDD 6U ridondante fibra ottica 10G
