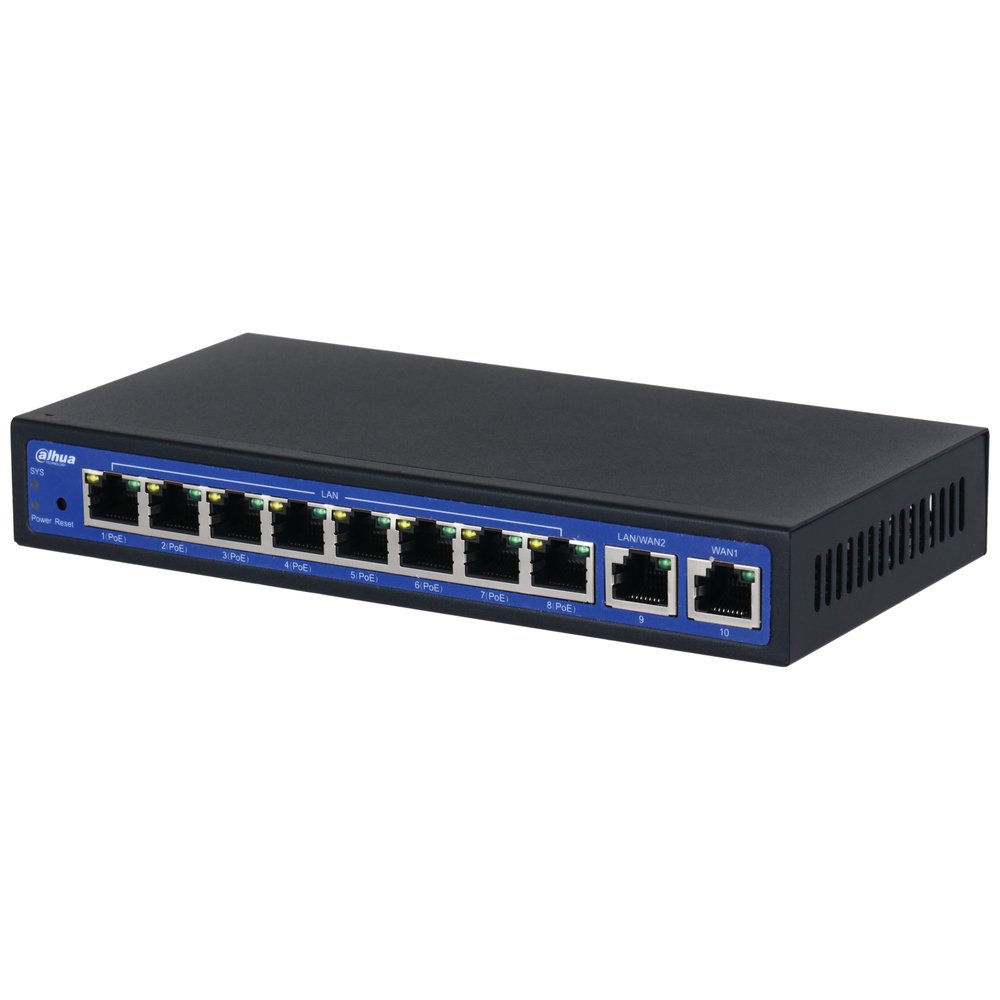

Router per gestire fino a 64 Access Point, 10 porte Gigabit 10/100/1000 Mbps (8 PoE <75 W, 1 WAN, 1 LAN/WAN), alimentazione 54 Vdc
Datasheet
Manuali
| Hardware | |
| Modular Switch/Fixed | Fixed |
| PoE Power Supply | Yes |
| PoE Power | Port 1-8≤30W,Total power≤64W |
| Ethernet Port | 10 |
| Ethernet Port Speed | 10/100/1000 Mbps 9 × 10/100/1000 Mbps (1 LAN port can be switched to |
| LAN Port | WAN port) |
| WAN Port | 1 × 10/100/1000 Mbps |
| Reset Button | Yes |
| Power Supply | 54 VDC, 1.4 A |
| Dual Power Supplies | No |
| Power Consumption | <10 W |
| Function | |
| 802.11 LAN Protocols | 802.11k;802.11v |
| CAPWAP | Yes |
| Roaming | Yes |
| Forwarding | Local forwarding |
| User Isolation | Yes |
| User Management | Yes |
| STA RSSI Threshold | -90 dBm |
| RF Management | 100%; 50%; 25% |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| PoE Power Consumption | Priority |
| PoE Pin Assignment | 12+; 36- |
| WAN Port Function | PPPoE; DHCP; Static IP |
| Multi-WAN Load Balancing | Yes |
| Link Detection | Yes |
| IP Routing | Yes |
| VPN | Yes |
| Multicast | Yes |
| DHCP Function | Yes |
| Security | Firewall |
| ARP | Yes |
| QoS/ACL | Yes |
| Equipment Management | Yes |
| Performance | |
| Default Number of | 64 |
| Maximum Number of | 64 |
| Maximum Number of | 64 |
| Users Capacity | 128 |
| Clients Supported by the | 128 |
| Maximum Number of | 128 |
| Inter-AC Roaming Switch | <20 ms |
| Firewall | 200 Mbps |
| Encryption | 200 Mbps |
| Forwarding Capability | 1000 Mbps |
| CPU Frequency | 880 MHz |
| Processor | 2 |
| MTBF | >250,000 hours |
| Memory | 512 MB |
| Flash | 16 MB |
| MAC Address List | 8196 |
| Entries of MAC Address | 128 |
| IPv4 Forwarding | 1000 Mbps |
| Static Routes | 100 |
| Max. Number of Static DNS | 1000 |
| Max. Number of DDNS | 1 |
| Static ARP | 128 |
| Dynamic ARP | 8196 |
| ACL | 100 |
| Max. Number of Tunnels | 100 |
| Max. Number of Sessions | 200000 |
| Max. Number of | 200000 |
| Max. Number of Virtual | 100 |
| Number of NAT | 100 |
| General | |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Statics Protection | Contact discharge: 6 kV Common mode: 2 kV; |
| Lightning Protection | Differential mode: 1 kV |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.98 kg (2.16 lb) 190 mm × 97.5 mm × 29.5 mm (7.48" × 3.84" × 1.16") (L |
| Product Dimensions | × W × H) 225 mm × 216 mm × 66 mm (8.86" × 8.50" × 2.60") (L × |
| Packaging Dimensions | W × H) |
| Installation | Desktop mount |
| Ordering Information | |
| Type | Model Description |
| Edge Router | DH-ERC210-P Router |
