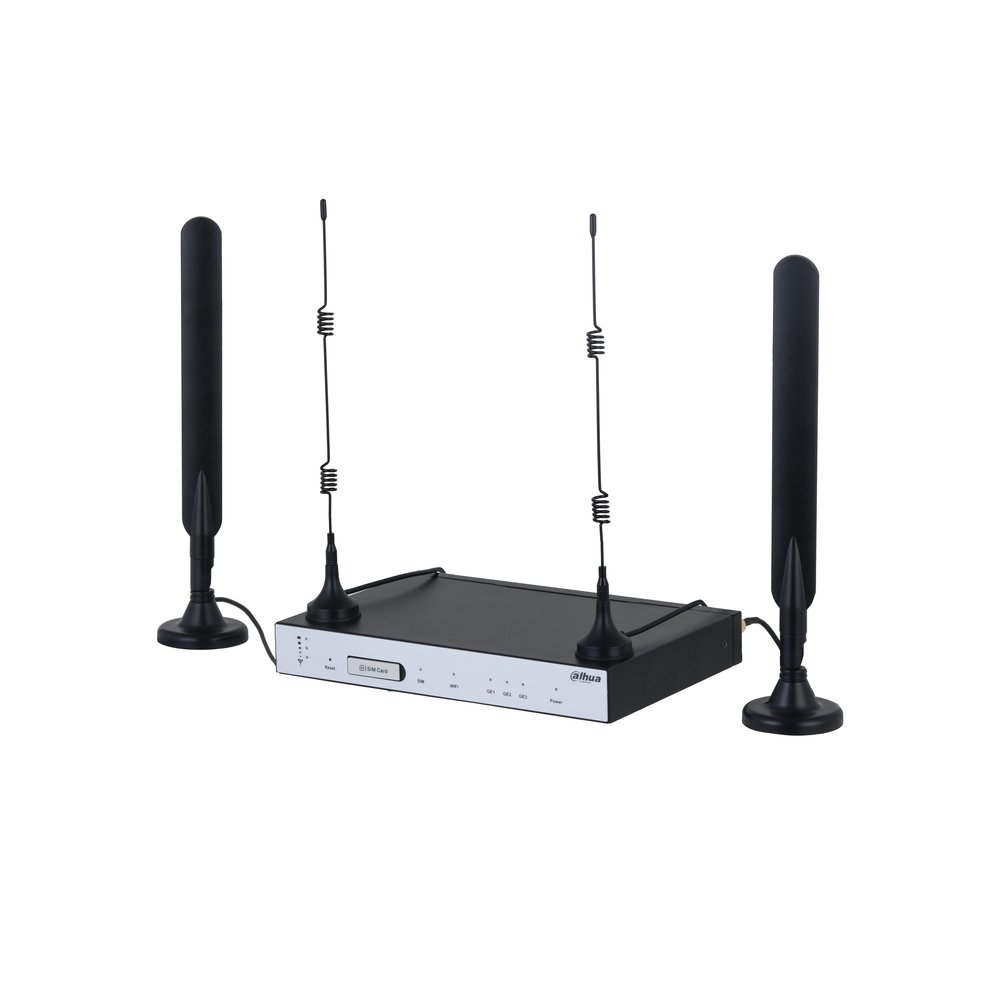

Router 4G Wi-Fi 6th gen, L2TP/IPsec VPN, NAT, APN, 3 porte Gigabit Ethernet, switch LAN/WAN, IPv6, DHCP, 1 slot nano SIM, indicatori luminosi (power, segnale, SIM, Wi-Fi, porte Ethernet), 9-36 Vdc, alimentatore incluso
Datasheet
Manuali
| Funtion | |
| Management and Log | Syslog; SSH; NTP |
| Webpage Configuration | Web configuration |
| Firmware Update | Web update; ConfigTool UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; |
| Network Protocol | DHCP |
| Wireless Certification | FCC; CE IP/MAC address filtering; WAP/WPA2-PSK/WPA3- |
| Security Mechanism | PSK; |
| Routing | Static routing Enable and disable DHCP Server Configure address pool of DHCP Server |
| DHCP Server | Configure lease period Assign fixed IP addresses to clients |
| NAT | Port-based NAT configuration |
| VPN | L2TP; L2TP/IPsec VPN |
| APN | APN private network configuration |
| Hardware | |
| Wireless Standard | IEEE 802.11b/g/a/n/ac/ax@WLAN |
| Power Supply | 9–36 VDC |
| Included Power Adapter | Yes |
| Included Antenna | Yes |
| Ethernet Ports | 3 |
| Ethernet Port Speed | 10/100/1000 Mbps; |
| Reset Button | Yes; Full load: 15 W |
| Power Consumption | Idling: 5 W |
| WAN Port | 1 (0–3); |
| WAN Port Connection Mode | Static IP address; DHCP; PPPoE; 4G/3G 3 × RJ–45 10/100/1000 Mbps (LAN/WAN switching) 1 × SIM card slot (nano) |
| External Port | 1 × DC-JACK power supply port 1 × RESET button 1 × power indicator 3 × cellular signal indicators |
| Indicator Light | 1 × SIM card indicator 1 × Wi–Fi indicator 3 × Ethernet port indicators Wi–Fi: 2 × standard SMA antenna ports (characteristic impedance 50 Ω) |
| Antenna | Cellular: 2 × standard SMA antenna ports (characteristic impedance 50 Ω) |
| Performance | |
| Terminal Communication | IEEE 802.3/802.3u/802.3ab@LAN |
| Protocol | |
| Operating Frequency | Oceania and North American version(US): B1/B2/B3/ B4/B5/B7/B8/B12/B17/B28/B38/B40/B66; European version(EU): B1/B3/B5/B7/B8/B20/B28/ B38/B40/ B41 External LTE omnidirectional antenna |
| Antenna | External Wi–Fi 2.4 GHz/5 GHz dual-band omnidirectional antenna Wi–Fi-2.4 GHz: ≤1.5 dBi |
| Antenna Gain | Wi–Fi-5.8 GHz: ≤3 dBi Cellular: ≤4.5 dBi 2.4 GHz Wi–Fi: 574 Mbps 5 GHz Wi-Fi: 1201 Mbps LTE FDD: 150 Mbps (DL)/50 Mbps (UL) LTE TDD: 130 Mbps (DL)/30.5 Mbps (UL) |
| Air Interface Rate | WCDMA: 384 Kbps (DL)/384 Kbps (UL) DC-HSPA+: 42 Mbps (DL)/5.76 Mbps (UL) EDGE: 296 Kbps (DL)/236.8 Kbps (UL) GPRS: 107 Kbps (DL)/85.6 Kbps (UL) |
| Protection | IP30 2.4 GHz Wi–Fi: 32 |
| Connected Wireless Terminals | 5 GHz Wi–Fi: 64 CE EIRP: ≤20 dBm@2400-2483.5 MHz ≤23 dBm@5150-5250 MHz ≤23 dBm@5250-5350 MHz ≤27 dBm@5470-5725 MHz ≤14 dBm@5725-5850 MHz |
| Max. Output Power | FCC output power: ≤27 dBm@2400-2483.5 MHz ≤24 dBm@5150-5250 MHz ≤24 dBm@5250-5350 MHz ≤24 dBm@5470-5725 MHz ≤30 dBm@5725-5850 MHz |
| General | |
| Operating Temperature | –40 °C to +75 °C (–40 °F to +167 °F) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Operating Humidity | < 95% |
| Gross Weight | 1.5 kg (3.31 lb) |
| Net Weight | 0.77 kg (1.70 lb) 207 mm × 135 mm × 28 mm (8.15" × 5.31" × 1.10") |
| Product Dimensions | (L × W × H) 402mm × 251mm × 84mm(15.83" × 9.88" × 3.31") |
| Packaging Dimensions | (L × W × H) |
| Memory | 256 MB Air discharge: 15 kV |
| Statics Protection | Contact discharge: 8 kV Common mode: 4 kV |
| Lighting Protection | Differential mode: 2 kV |
| Installation | Desktop/rack mount |
