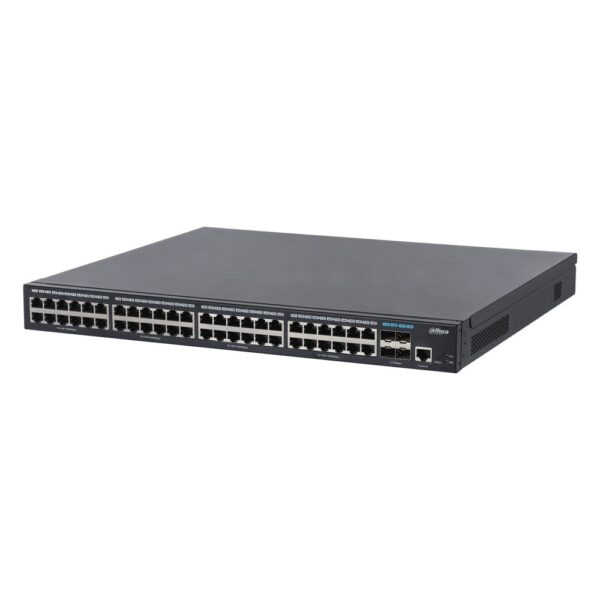

Aggregation switch managed (anche tramite Cloud) L2+ con 52 porte Gigabit (48 10/100/1000 Mbps + 4 SFP+ 1/10 Gbps), capacità switching 176 Gbps, rate inoltro pacchetti 130.944 Mpps, 100~240 Vac, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.944 Mpps Port 1-48: 48 × RJ-45 10/100/1000 Mbps |
| Description of Function Slots | Port 49-52: 4 × SFP+ 1/10 Gbps |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | Built-in power supply: 100–240 VAC, 50/60 Hz, 2 A Idling load: 17.5 W |
| Power Consumption | Full load: ≤ 60 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV |
| Lightning Protection | Differential mode: 2 kV |
| Net Weight | 4.8 kg (10.58 lb) |
| Gross Weight | 6.1 kg (13.45 lb) 440 mm × 391 mm × 44.0 mm (17.32" × 15.39" × |
| Product Dimensions | 1.73") (L × W × H) 561 mm × 513 mm × 146 mm (22.09" × 20.20" × |
| Packaging Dimensions | 5.75") (L × W × H) |
| Installation | Rack mount; desktop mount |
| Hardware | |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Performance | |
| Packet Buffer Size | 16 Mbit |
| Jumbo Frame | 12288 Byte |
| MAC Table Size | 32K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; |
| Communication Standard | IEEE 802.3z; IEEE 802.3ad |
| VLAN Number | 4094 |
| VLAN Interface | 10 |
| Feature | |
| Ethernet Loop Protection | STP/RSTP/ERPS |
| VLAN Function | Port-based VLAN LACP |
| Link Aggregation | Static link aggregation Dynamic link aggregation IEEE 802.3x flow control Unknown unicast suppression |
| Port Feature | Multicast storm control Broadcast storm control |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping |
| Reliability | LLDP |
| DHCP Function | DHCP Client 802.1X Port isolation |
| Security | Radius HTTPS SP/WRR queue scheduling |
| QoS/ACL | 802.1p and DSCP priority mapping Port speed limit Web SNMP V1/V2C/V3 |
| Equipment Management | NTP Logs Ping |
| General | |
| Packing List | 1 × List of Hazardous Substances 1 × Power Cord 1 × Rack-mounting Kit |
| Ordering Information | |
| Type | Model Gigabit RJ45 SFP Module GSFP-RJ45 Gigabit 1310/1550nm,20km,LC, Single- GSFP-1310T-20-SMF mode Gigabit 1550/1310nm,20km,LC, Single- GSFP-1310R-20-SMF mode Gigabit 1310nm,20km,LC, Single-mode GSFP-1310-20-SMF Gigabit 850nm,550m,LC, Multi-mode GSFP-850-MMF |
| SFP module | 10G 1270/1330nm,20km,LC, Single-mode TSFP-1270T-20-SMF 10G 1330/1270nm,20km,LC, Single-mode TSFP-1270R-20-SMF 10G 1310nm,20km,LC, Single-mode TSFP-1310-20-SMF 10G 1550nm,40km,LC, Single-mode TSFP-1550-40-SMF 10G 850nm,300m,LC, Multi-mode TSFP-850-MMF |
| Dimensions (Mm[Inch]) | |
| The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. | |
