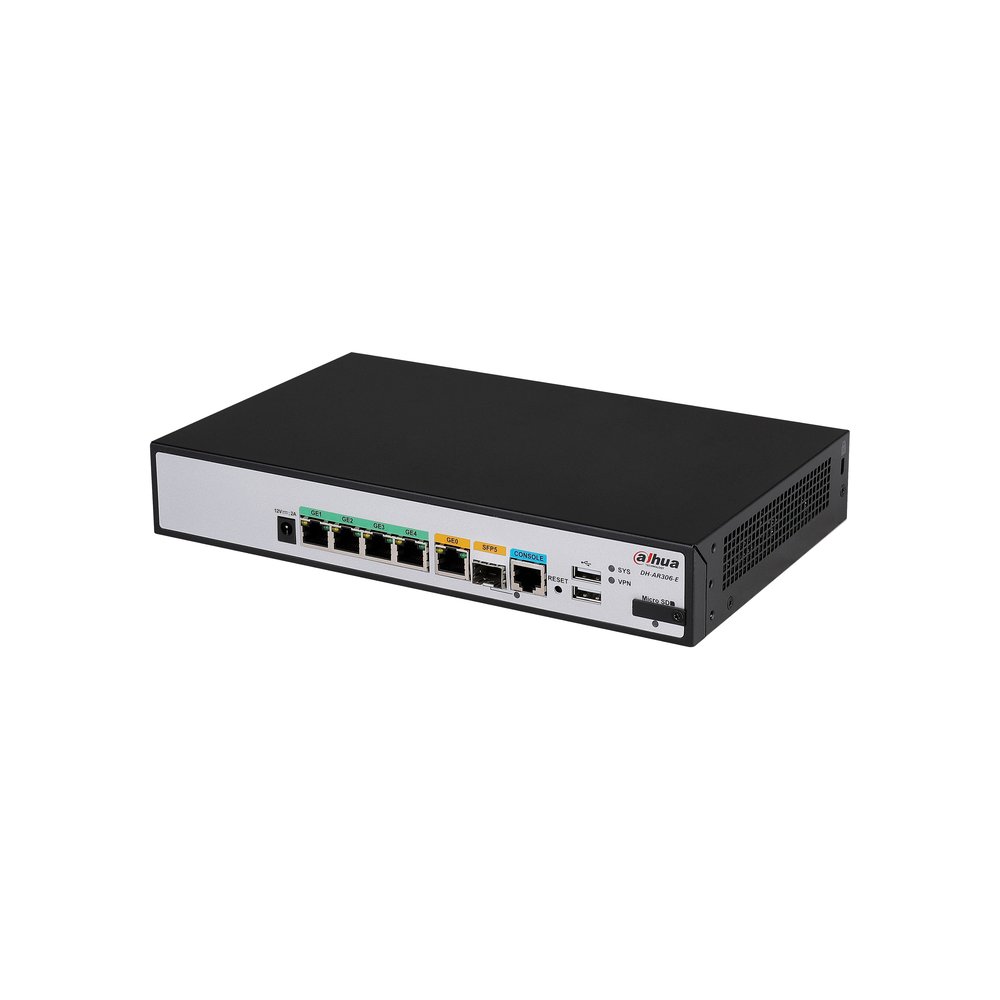

Router Enterprise gestito L3
> Dotato di un processore professionale ad altissime prestazioni e di un’architettura software avanzata, offre maggiore capacità e robuste prestazioni VPN, oltre a potenti funzionalità di sicurezza, offrendo agli utenti una nuova esperienza di rete.
Codice produttore: DH-AR306-E
| Hardware | |
| Modular Switch/Fixed | Fixed |
| PoE Power Supply | No |
| Ethernet Port | 5 |
| Ethernet Port Speed | 1 Gbps |
| Optical Port | 1 |
| Optical Port Speed | 1 Gbps Port 0: 1 × RJ-45 10/100/1000 Mbps (WAN); |
| Description of Function | Port 1–4: 4 × RJ-45 10/100/1000 Mbps (LAN, can be |
| Slots | configured as WAN ports); SFP 5: 1 × SFP 10/100/1000 Mbps (WAN) |
| LAN Port | 4 GE (all can be configured as WAN) |
| WAN Port | 1 GE+1 SFP |
| USB | 2 |
| Console Port | 1 |
| Max. External Memory | Yes |
| Reset Button | 1 |
| Power Supply | 12 VDC, 2 A |
| Dual Power Supplies | No |
| Operating Temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
| Operating Humidity | 5%-95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Power Consumption | Full load: 30 W |
| Performance | |
| Maximum Clients | 250 |
| Firewall | 800 Mbps |
| Forwarding Capability | 540 Kpps |
| MTBF | 50,000 hours |
| Memory | 1 GB |
| Storage | |
| IPv4 Forwarding | 64 Byte; 150K fps |
| IPv6 Forwarding | 78 Byte; 150K fps |
| Nat | |
| Max. Number of | 250000 |
| Ip Routing | |
| IP Routing | Policy-based routing; Multicast routing: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, and MSDP |
| Security | |
| Security | limit; and 802.1X |
| Ipv6 | |
| IPv6 | OSPF V3; IS-IS V6; BGP4 + FOR IPV6; IPv6 PIM DM; IPv6 PIM SM; VRRP V3; |
| Multicast | |
| Multicast | PIM-SM; PIM-DM; MSDP; |
| Reliability | |
| Reliability | MPLS TE, RSVP TE; VRRP, VRRPv3; Multi-link for load balancing and backup; Association between NQA and routing/VRRP/interface backup, and it realizes end-to-end link detection and backup. |
| Dhcp | |
| DHCP Function | DHCP Relay; DHCP Server; |
| Qos/Acl | |
| QoS/ACL | WFQ |
| Management & Maintenance | |
| Equipment Management | SNMP v1/v2c/v3, TR069, SYSLOG, RMON; 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
| Equipment Management | CLI management, file system management, Dual Image; Test NQA based on DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP |
| General | |
| Product Dimensions | (L × W × H) 480 mm × 370 mm × 290 mm (18.90" × 14.57" × |
| Packaging Dimensions | 11.42") (L × W × H) |
| Casing Material | Metal |
| Installation | Desktop |
| Ordering Information | |
| Type | Model Description L3 Managed Enterprise |
| Edge Router | DH-AR306-E Router |
