Aggregation switch L3 managed 48 porte Gigabit SFP + 4 SFP+

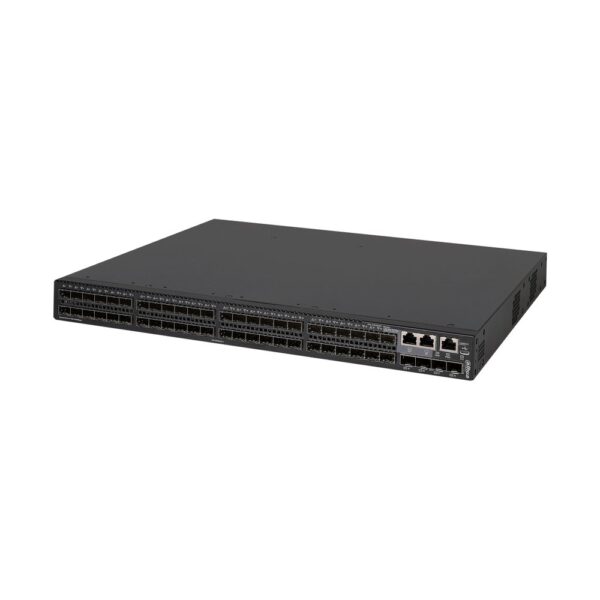

Name: Aggregation switch L3 managed 48 porte Gigabit SFP + 4 SFP+
Brand: Dahua
SKU: AS5600-48GF4XF-V2
Price: 4481.06 EUR
Availability: BackOrder

Dahua

COD: AS5600-48GF4XF-V2 Categorie: Networking, Switch di rete

4.481,06 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 8.962,12 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Aggregation switch Layer 3 managed con 48 porte SFP 100/1000 Mbps + 2 RJ45 combo 10/100/1000 Mbps + 4 SFP+ 1/10 Gbps, capacità switching 598 Gbps, rate inoltro pacchetti 222 Mpps, alimentatore incluso, necessario cavo seriale non incluso (codice R-1.2.50.05.0293)

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Hardware
Included Power Adapter	Yes
PoE	No
Ethernet Port	2
Optical Port	48
Ethernet Port Speed	10/100/1000 Mbps
Optical Port Speed	100/1000 Mbps
Optical Port Uplink Speed	1/10 Gbps Port 1-48: 48 × SFP 100/1000 Mbps;
Description of Function	Port 47-48: 2 × RJ-45 10/100/1000 Mbps (Combo);
Slots	Port 49-52: 4 × SFP+ 1/10 Gbps 1 × Console
Debugging	1 × Micro-USB
Power Supply	Built-in power: 100–240 VAC, 50/60 Hz, 2.5 A
Operating Temperature	–5 °C to +45 °C (+23 °F to +113 °F)
Operating Humidity	5%–95% (RH)
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity	5%–95% (RH) Idle: 21 W
Power Consumption	Full load: 47 W
Performance
Layer	Layer 3
Management Type	Yes
MTBF	153.41 years
Switching Capacity	598 Gbps
Packet Forwarding Rate	222 Mpps
Packet Buffer Size	1.5 Mbyte × 2
Jumbo Frame	10 KByte
MAC Table Size	16K
VLAN Number	4K
VLAN Interface	1K
IPv4 Routes	12K
Dynamic ARP	4K IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE
Communication Standard	802.3z; IEEE 802.3ad; IEEE 802.3ae
Features
Spanning Tree Protocol	PVST RRPP Static routing IPV6 policied routing RIPv1/v2/ng OSPFv2/v3
Routing	IS-ISv4/v6 BGP4/4+ ECMP Policy based routing Port-based VLAN; MAC-based VLAN; Protocol-based VLAN; Subnet-based VLAN;
VLAN Function	QinQ, ﬂexible QinQ; VLAN Mapping; Voice VLAN; MVRP Statc link aggregaton; Dynamic link aggregaton;
Link Aggregation	Cross-device link aggregaton; Gigabit Ethernet port aggregaton; 10 gigabit Ethernet port aggregaton
IEEE 802.3x Flow Control	Yes IGMP Snooping v1/v2/v3; PIM Snooping; Multcast VLAN;
Multicast	IGMP v1/v2/v3; PIM-DM, PIM-SM, PIM-SSM; MSDP IRF VRRP
Reliability	DLDP LLDP ARP source suppression
ARP	Dynamic ARP source detection ARP anti-attack DHCP Client; DHCP Snooping; DHCP Relay; DHCP Server;
DHCP Function	DHCP Snooping opton82; DHCP Relay opton82; DHCP Snooping Trust; DHCP Snooping entry backup Mult-level user management and password protecton; 802.1X; RADIUS; SSH 2.0; Port isolaton;
Security	HWTACACS; IP/Port/MAC binding; IP Source Guard; HTTPS; Triple
QoS/ACL	the same time) Two-way ACL policy (in and out) ICMP v6; TRACEROUTE V6; TELNET V6; SSH2 V6; ND/ND snooping/ND proxy/ND detecton; SAVI; IPV6 PORTAL; PMTU; DNS CLINET FOR IPV6;
IPv6	SNMP FOR IPV6; RIPng/OSPF V3/IS-ISv6/BGP4+; IPV6 policy-based routng; MLD SNOOPING v1/v2; IPv6 PIM DM/PIM SM/PIM SSM; VRRP V3; DHCPv6 snooping/DHCPv6 ;client/DHCPv6 relay/DHCPv6 server; IPv6 port binding; BFD for IPV6 (statc routng, OSFPv3, BGP+) Load update fles and update using FTP/TFTP; Confgure through CLI, Telnet, Console port; SNMPv1/v2/v3; System logs, mult-level alarms, and debug informaton;
Equipment Management	NTPPower supply, fan, and temperature alarms; Ping and Tracert; LLDP; Port loopback detecton
General
Statics Protection	Contact discharge: 6 kV
Lighting Protection	Surge: 6 kV
Net Weight	8.5 kg (18.74 lb) < 440 mm × 360 mm × 43.6 mm
Product Dimensions	(17.32" × 14.17" × 1.72") (L × W × H) 562 mm × 550 mm × 125 mm (22.13" × 21.65" × 4.92")
Packaging Dimensions	(L × W × H)
Casing Material	Sheet metal
Installation	Desktop mount; rack mount
Ordering Information
SFP module	GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode TSFP-1270T-20-SMF 10G 1270/1330nm, 20km, LC, Single-mode TSFP-1270R-20-SMF 10G 1330/1270nm, 20km, LC, Single-mode TSFP-850-MMF 10G 850nm,300m,LC, Multi-mode The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
