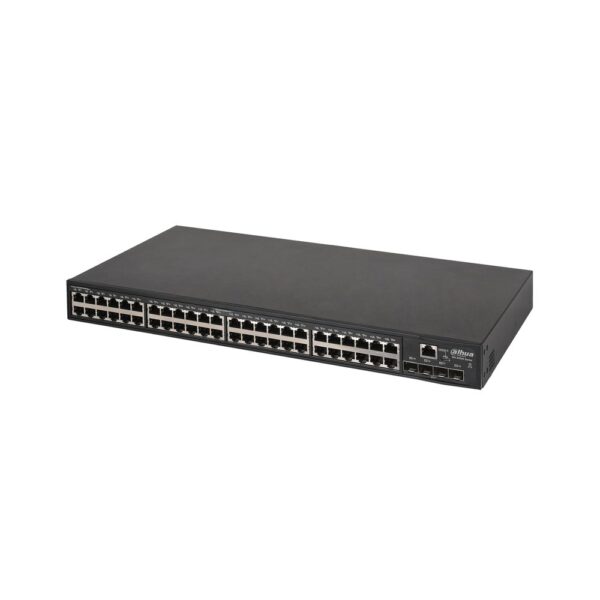

Aggregation switch L3 managed con 48 porte Gigabit (10/100/1000 Mbps) + 4 porte SFP+ 1/10 Gbps, capacità switching 176 Gbps, rate inoltro pacchetti 130.952 Mpps, IRF2, 100~240 Vac <55 W, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | Yes |
| PoE | No |
| CPU Clock Speed | 800 Mhz |
| Memory Size | 512 MB |
| Flash Size | 256 MB |
| Ethernet Port | 48 × RJ-45 10/100/1000 Mbps |
| Optical Port | 4 × SFP 1/10 Gbps |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Speed | 1/10 Gbps Port 1-48: 48 × 10/100/1000 Mbps BASE-T; |
| Description of Function Slots | Port 49-52: 4 × SFP+ 1/10 Gbps |
| Debugging | 1 × Console port |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | –5 °C to 45 °C (23 °F to 113 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing AC |
| Power Consumption | Idling: 15 W; Full load: 55 W |
| Performance | |
| Layer | Layer 3 |
| Management Type | Yes |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.952 Mpps |
| Packet Buffer Size | 1.5Mbytes |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 16K |
| VLAN Number | 4K |
| VLAN Interface | 32 |
| IPv4 Routes | 1K |
| Dynamic ARP | 1K IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; |
| Communication Standard | IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae |
| Features | |
| Ring Network Protocol | RRPP G.8032 ERPS |
| Routing | RIPv1/v2/ng OSPFv2/v3 Policy based routing Port-based VLAN MAC-based VLAN Protocol-based VLAN Subnet-based VLAN |
| VLAN Function | QinQ, flexible QinQ VLAN Mapping Voice VLAN MVRP Static link aggregation Dynamic link aggregation |
| Link Aggregation | Cross-device link aggregation Gigabit Ethernet port aggregation 10 Gigabit Ethernet port aggregation |
| IEEE 802.3x Flow Control | Yes IGMP Snooping v1/v2/v3 PIM Snooping |
| Multicast | Multicast VLAN IGMP v1/v2/v3 |
| Reliability | IRF; VRRP; DLDP; LLDP; VCT ARP source suppression Dynamic ARP source detection |
| ARP | ARP anti-attack ARP detection ARP rate limit DHCP Client DHCP Snooping DHCP Relay DHCP Server |
| DHCP Function | DHCP Snooping option 82 DHCP Relay option 82 DHCP Snooping Trust DHCP Snooping entry backup Multi-level user management and password protection 802.1X RADIUS SSH 2.0 |
| Security | Port isolation HWTACACS IP/Port/MAC binding IP Source Guard HTTPS Triple 802.1p/DSCP priority tag Packet filtering SP/WRR/SP+WRR queue scheduling |
| QoS/ACL | Port-based rate limit Traffic-based redirection Time range ICMPv6 Traceroute v6 Telnet v6 SSH2 v6 ND/ND snooping/ND proxy/ND detection SAVI IPv6 Portal DNS Client for IPv6 |
| IPv6 | SNMP for IPv6 RIPNG and OSPFv3 IPv6 policy routing MLD Snooping v1/v2 VRRP V3 DHCPv6 snooping/DHCPv6 client/DHCPv6 relay/ DHCPv6 server IPv6 port binding |
| Equipment Management | HGMPv2 NTP Ping and Tracert VCT DLDP Port loopback detection Power supply, fan, and temperature alarms BFD |
| General | |
| Lighting Protection | Differential mode: 1 kV |
| Net Weight | 3.25 kg (7.2 lb) 440 mm × 360 mm × 43.6 mm (17.32" × 14.17" × |
| Product Dimensions | 1.72" ) |
| Ordering Information | |
| Type | Model Description GSFP-1310-20-SMF 1.25G 1310nm, 20km, LC, Single-mode GSFP-1310R-20- 1.25G 1550/1310 nm, 20 km, LC, Single- SMF mode GSFP-1310T-20- 1.25G 1310/1550 nm, 20 km, LC, Single- SMF mode TSFP-1270T-20- 10G 1270/1330 nm, 20 km, LC, Single- |
| SFP Module | SMF mode TSFP-1270R-20- 10G 1330/1270 nm, 20 km, LC, Single- SMF mode GSFP-850-MMF 1.25G 850 nm, 500 m, LC, Multi-mode TSFP-850-MMF 10G 850 nm, 300m, LC, Multi-mode The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Dimensions (Mm [Inch]) | |
| 437.60 [17.23] | 231.90 [9.13] |
