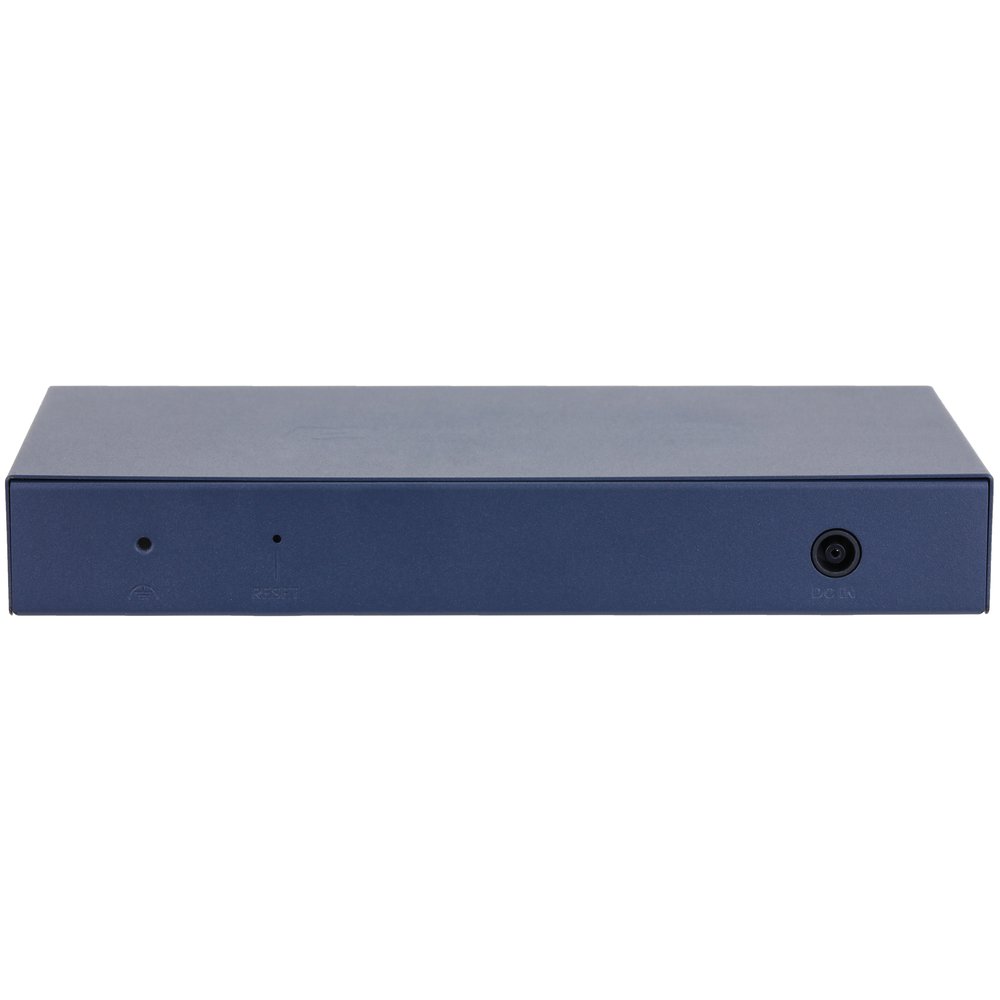

Switch Cloud managed con 9 porte (8 PoE 10/100 Mbps <110 W + 1 Gigabit (10/100/1000 Mbps) uplink), capacità switching 3.6 Gbps, rate inoltro pacchetti 2.68 Mpps, 2 red port BT 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 54 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 3.6 Gbps |
| Packet Forwarding Rate | 2.68 Mpps |
| Description of Function | Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) |
| Slots | Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External Power Adapter (54 V, 2.22 A) Idling: 5.7 W |
| Power Consumption | Full load: 115 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 6 kV |
| Lightning Protection | Differential mode: 1 kV |
| Net Weight | 0.36 kg (0.79 lb) |
| Gross Weight | 1.09 kg (2.03 lb) 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") |
| Product Dimensions | (L × W × H) 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 3-8≤30 W, port 1-2≤90 W, total≤110 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power Consumption | PoE power consumption management; PoE power on/ |
| Management | off; turns off PoE if overload is detected Port 1-2: 1,2,4,5(V+),3,6,7,8(V-) |
| PoE Pin Assignment | Port 3-8: 1,2,(V+),3,6,(V-) |
| Long Distance PoE | Yes |
| Hardware | |
| DIP Switch | when Managed Mode is Off) Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 2,566,539 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control |
| Port Feature | Broadcast Storm Control MAC+Port Binding Loop Prevention Local Port Mirroring |
| Mirror | N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation Web Management Cloud Management |
| Equipment Management | Logs Fault Alarm |
| General | |
| Packing List | 1 × Power Cord 1 × Power Adapter |
| Transmission Performance: | |
| CAT6. Max. DC resistance < 8 Ω/100 m | Load Capacity(W) |
| 100 | 71.3 |
| 150 | 62 |
| 200 | 51 |
| 250 | 40 |
| 100 | 46 |
| 150 | 42 |
| 200 | 37 |
| 250 | 32 |
| Ieee802.3At 30 W | |
| 100 | 25.5 |
| 150 | 25.5 |
| 200 | 25.5 |
| 250 | 24 |
| devices or the cable type and status. | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
