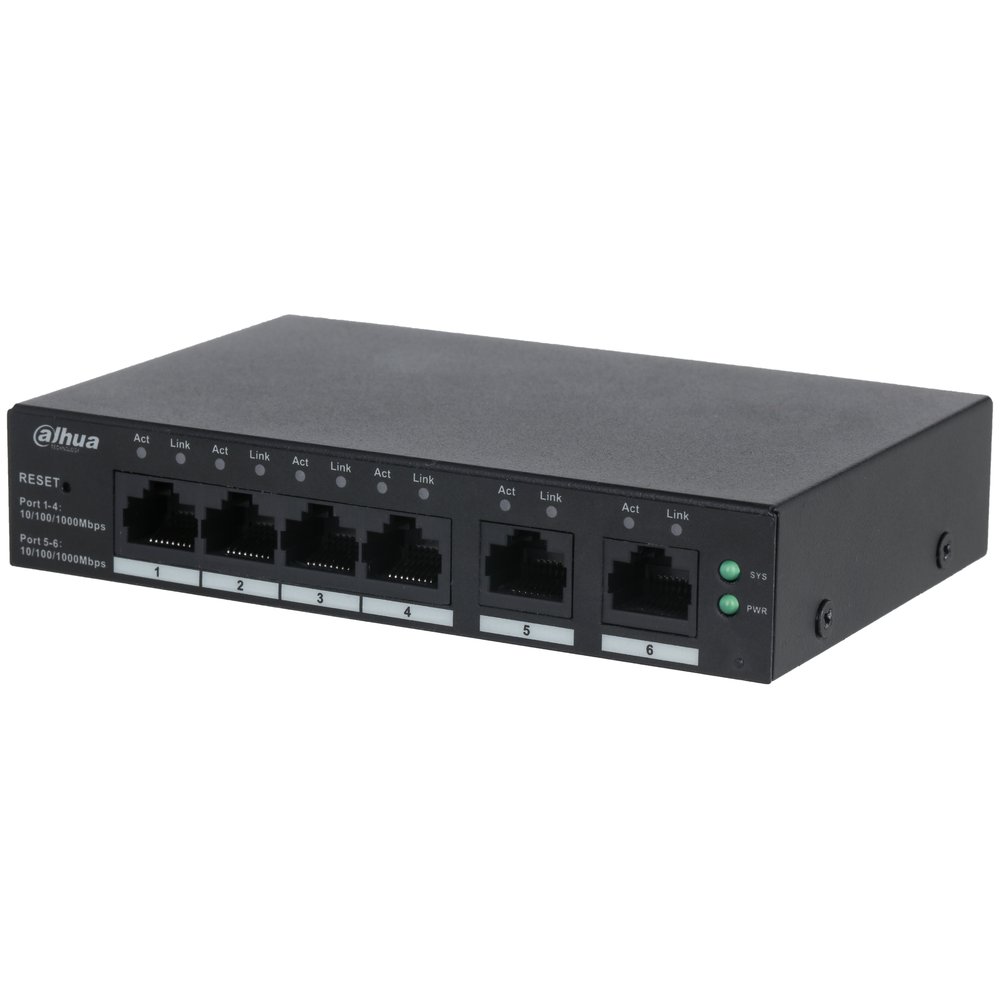

Switch Cloud managed con 6 porte Gigabit (10/100/1000 Mbps, 2 uplink), capacità switching 12 Gbps, rate inoltro pacchetti 8.93 Mpps, 12 Vdc, alimentatore incluso, case in metallo
Datasheet
Manuali
| Basic | |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| Description of Function | Port 1-4: 4 × RJ-45 10/100/1000 Mbps; |
| Slots | Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Layer | Layer 2 |
| Management Type | Yes |
| Operating Temperature | –10°C to +55°C(+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Idling: ≤2.5 W ; Full load: 6 W |
| Power Supply | External power supply: 12 VDC, 1.5 A Air discharge: 8 kV; |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV; |
| Lightning Protection | Differential mode: 2 kV |
| Net Weight | 0.5 kg (1.10 lb) 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × |
| Product Dimensions | W × H) |
| Hardware | |
| Included Power Adapter | Yes |
| Ethernet Port | 4 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Reset Button | 1 |
| Storage Temperature | 0°C to +70°C (+32 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Performance | |
| Smart Managed Switch | Yes |
| MTBF | 222.36 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| Feature | |
| Spanning Tree Protocol | STP; RSTP |
| VLAN Function | Port-based VLAN IEEE 802.3x flow control; Unknown unicast suppression; Multicast storm control; |
| Port Feature | Broadcast storm control; Port self-loop detection; Ports self-loop detection |
| IEEE 802.3x Flow Control | Yes |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port isolation |
| Equipment Management | Web management; log; fault alarm |
| General | |
| Gross Weight | 0.94 kg (2.07 lb) 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount 1 × User Manual; 1 × Legal and Regulatory Information; |
| Packing List | 1 × Power Cord; 1 × Power Adapter; 2 × Rack-mounting Kit |
| Ordering Information | |
| Type | Part Number Description 6-Port Cloud Managed |
| Ethernet Switch | DH-CS4006-4GT Desktop Switch |
