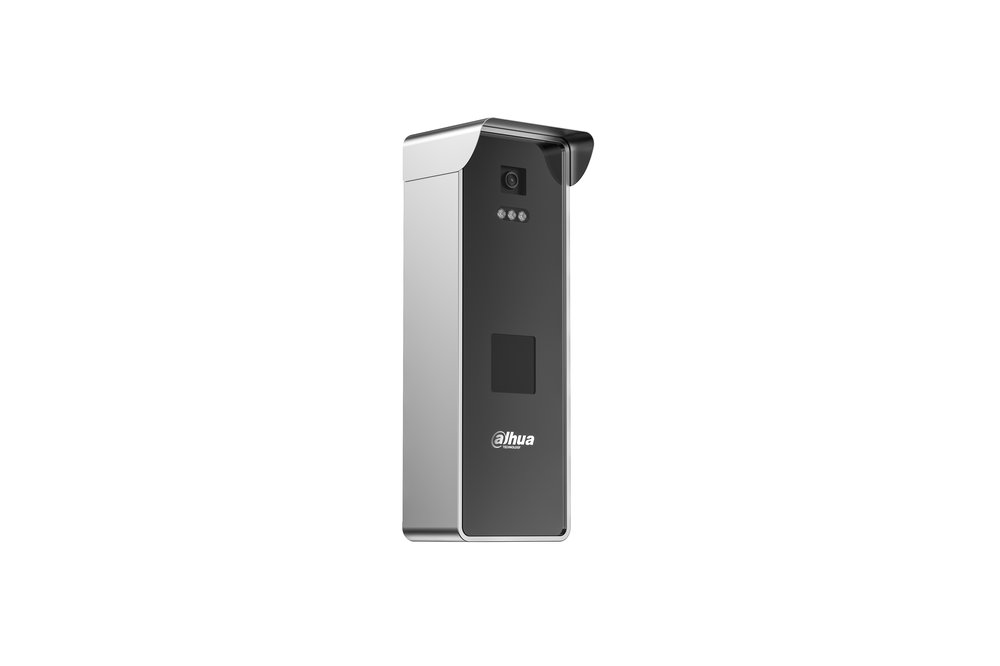

Telecamera AI access ANPR da interno IP54, sensore CMOS 1/1.8", risoluzione 4 MP a 25fps, H.265, ottica motorizzata 2.7~12 mm, IR 850 nm con portata 20 m (10 m ANPR), portata lettura targhe 2.5~6 m, ampiezza varco rilevato 3~4 m, velocità max. rilevata 20 km/h, 1 porta LAN 10/100/1000 Mbps, 1 porta RS485, 2 ingressi e 2 uscite allarme, 1 uscita audio, Wiegand, WDR 140 dB, riconoscimento veicoli, metadati video, OSD, slot TF card ( max. 256 GB), alimentazione 12 Vdc <28 W
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Image Resolution | 2688 × 1520 |
| Electronic Shutter Speed | Auto/Manual 1/25s~1/10,000s |
| Max. Detection Speed | 20 km/h 0.001 Lux@F1.8 (Color, 30 IRE) |
| Min. Illumination | 0.0002 Lux@F1.8 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| ROM | 1 GB |
| RAM | 4 GB |
| S/N Ratio | >56 dB |
| Scanning System | Progressive scanning |
| Lens | |
| Focal Length | 2.7 mm–12 mm H: 115° (W)–47° (T) |
| Field of View | V: 62° (W)–27° (T) D: 137° (W)–54° (T) |
| Focus Control | Auto, area focus, manual |
| Number of Lens | 1 |
| Lens Type | Motorized Vari-focal |
| Max. Aperture | 1.8 |
| Iris Control | DC-Iris |
| Dori | |
| Distance | 130.8 m 52.3 m 26.2 m 13.1 m T (429.13 ft) (171.59 ft) (85.96 ft) (42.98 ft) |
| Illuminator | |
| Illuminator Number | 3 (above) + 16 (below), IR |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Type | IR ANPR: 10 m (32.81 ft) |
| Illumination Distance | Video monitoring: 20 m (65.62 ft) According to the brightness of the environment, the |
| Smart Illumination | camera automatically adjusts the intensity of its light to reveal the details of moving targets. |
| Infrared Wavelength | 850 nm |
| Video | |
| Video Resolution | Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240) |
| Stream | NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps) H.264H; H.264B; H.264M by default; H.265; MJPEG; |
| Video Compression | H.264M H.264B: 2,179 kbps–13,074 kbps H.264M: 2,179 kbps–13,074 kbps |
| Video Bit Rate | H.264H: 2,179 kbps–13,074 kbps H.265: 2,179 kbps–13,074 kbps MJPEG: 6,537 kbps–39,223 kbps |
| Scene Self-adaptation | Yes |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Region of Interest (RoI) | Yes (3 ROI) |
| Image Tampering | Yes. Watermarks can be added to videos and images for |
| Prevention | verification. |
| Bit Rate Control | CBR; VBR |
| Storage | |
| Restricted List/Trusted List | Allowlist: 110,000; Blocklist: 110,000 Alarms for events of defocus, no storage card, |
| Basic Event | storage card no space, storage card error, network disconnection, IP conflict, and illegal access. Upload to FTP/Memory card, notify monitoring center, |
| Alarm Linkage | send e-mail, and trigger alert output and snapshot. |
| Automatic Network | Yes, platform/FTP |
| Capture Distance | 2.5 m–6 m (8.20 ft–19.69 ft) |
| Detected Width | 3 m–4 m (9.84 ft–13.12 ft) |
| Network | |
| Network Protocol | SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP; DDNS; SNMP; PPPoE |
| API | Yes |
| SDK | Yes |
| Interoperability | ONVIF (Profile S/Profile T/Profile M); CGI; ITSAPI; P2P |
| Management Software | DSS Pro Username and password; MAC address; HTTPS; IEEE |
| Security | 802.1×; network access control Plug in: IE 9, 10, 11. Chrome 52 and earlier versions |
| Browser | Firefox 42 and earlier versions No plug in: Chrome 92 and later versions |
| Image | |
| Image Encoding Format | JPEG Brightness; contrast; saturation; gamma; sharpness; gain; |
| Image Setting | white balance |
| Day/Night | IR filter, support three modes: color/B/W/auto |
| WDR | 140 dB |
| HLC | Yes |
| BLC | Yes Auto;Regional Custom;Manual;Outdoor;Natural;Stre |
| White Balance | et Lamp |
| Digital Detail | Yes |
| Enhancement (DDE) | Supports overlay of time; address (position of channel), |
| OSD Overlay | lane (number/direction), plate (number and color), vehicle (color, type) |
| Audio | |
| Audio Port | Yes |
| Audio | |
| Audio Output | 1 channel (RCA port) |
| Network Port | RJ-45 (10/100 Mbps Ethernet port) |
| Alarm Input | 2, optocoupler input (wet node on-off value: 5 V) 2, relay output (2A 30 VDC/0.5 A 125 VAC), which can |
| Alarm Output | connect to devices such as barriers 1 Channel (half duplex, transparent, DHRS, com port |
| RS-485 | push) |
| Reset Button | Yes |
| Wiegand | 1 Channel, SHA-1 26 bit |
| Performance | |
| Maximum Number of | 10,000 |
| Max. Number of | 10 |
| Intelligence | |
| AI Recognition | vehicle plate, plate, vehicle without plate. |
| Video Metadata | Displays the intelligent frame, plate and vehicle paths. |
| Vehicle Brand | Recognizes 147 vehicle logos. Recognizes 12 colors: Grey, black, white, silver, blue, |
| Vehicle Color | green, purple, red, orange, pink, brown, and yellow. Recognizes 9 vehicle types: Large Bus, Heavy Truck, |
| Vehicle Type Recognition | Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup |
| Country and Region | South American Economies Collection (Uruguay, |
| Supported by ANPR | Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana, Bolivia ) Mexico and other countries: Mexico, Costa Rica, Curacao, Guatemala Eurasian Collection (Russia, Ukraine, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan) North America (United States, Canada) North Africa Region Collection: Tunisia, Morocco, Algeria, Libya The baseline algorithm is supported for the following 19 countries: Republic of Korea, Indonesia, Singapore, Cambodia, Australia, Thailand, Bassett, Nigeria, Pakistan, Viet Nam, Mongolia, Bangladesh, Myanmar, Philippines, Laos, Iraq, Japan, Maldives, Nepal. In the recommended installation and lighting condition, |
| Capture Rate | the vehicle capture rate ≥ 99% In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ |
| Recognition Rate | 96%; the recognition rate for European vehicle plates ≥ 98% |
| General | |
| Power Supply | 12 VDC, 3 A No lighting <6 W |
| Power Consumption | Lighting <28 W |
| Protection | IP54 |
| Material | Metal plate + glass |
| Product Dimensions | 254.0 mm × 221.0 mm × 711.0 mm (10" × 8.70" × 27.99") 842.0 mm × 387.0 mm × 369.0 mm (33.15" × 15.24" × |
| Packaging Dimensions | 14.53") |
| Net Weight | 13 kg (28.66 lb) |
| Gross Weight | 16.6 kg (36.60 lb) |
| Storage Humidity | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Temperature | ≤ 95% (non-condensing) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (non-condensing) |
