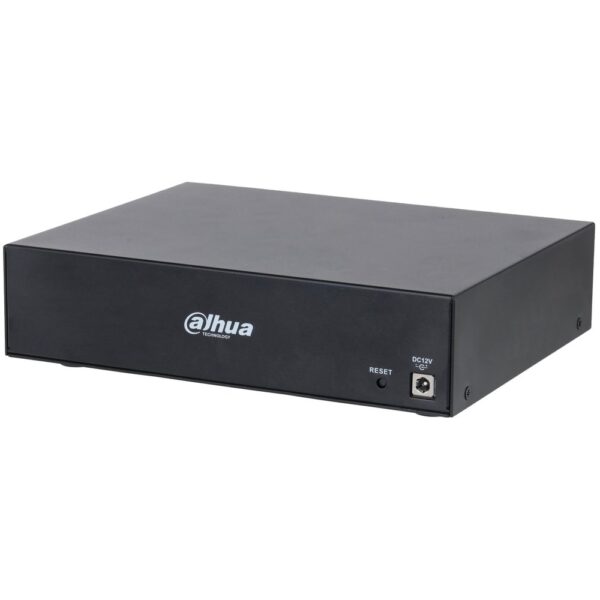

Edge storage 4/12 ch HD/ANPR
Edge storage 4 ch HD ANPR (composite) / 12 ch HD access, memoria 2 GB, interfaccia per 1 disco SATA, 1 porta RS232, 2 porte RS485, 1 porta USB 3.0, 10 porte LAN (2 Gigabit), 1 slot SIM, 3 ingressi e 3 uscite (optoaccoppiatori) allarme, 2 antenne (1x 3G/4G, 1x GPS), GPS/BDS, Dual NICs, alimentazione 12 Vdc <20 W
Datasheet
| Basic | |
| Operating System | Linux |
| Operating Interface | Web client TCP/IP; HTTP; HTTPS; SFTP; FTP; DNS; RTP; RTSP; RTC; |
| Network Protocol | NTP; DHCP; IEEE 802.1X |
| Image Encoding Format | JPEG |
| Main Processor | High-performance embedded processor |
| Memory | 2 GB 1 × on/off status indicator; 1 × operation status |
| Indicator Light | indicator |
| 3G/4G Type | GSM/WCDMA/LTE LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B38/B40 |
| 3G/4G Frequency Range | WCDMA: B1/B8 GSM: 900/1800 MHz LTE: Power class3:23 dBm ± 2 dB WCDMA: Power class3: 24 dBm+1/-3 dB |
| 3G/4G Power Transmission | GSM: Power class0: 30 dBm ± 2 dB (GSM1800) Power class5: 33 dBm ± 2 dB (GSM900) |
| Storage | |
| OSD Overlay | GPS information, remote device GPS information, section information and code, section distance and speed limit, entry and exit time, entry and exit lane, and more. |
| Positioning | GPS;BDS Supports creating composite images using 6 pictures from 1 camera or multiple cameras. The images can also be grouped and re-numbered based on their image type. It also offers 3 matching modes for verification: |
| Composite Image | ID matching, plate matching and ID first and then plate matching. It supports fuzzy match using the type, lane, color and plate color of the vehicle. You can customize the order that images appear in the composite image and the close-up images within it. |
| Automatic Network | Automatic network replenishment on the platform and |
| Replenishment (ANR) | FTP; manual upload |
| Auto Registration | Yes Yes. Allowlist and blocklist files can be imported and |
| Restricted List/Trusted List | exported, and fuzzy search can be used to find vehicles on the list based on their plate number. |
| Anti-deletion | Yes. Videos and images cannot be directly deleted. Search by time, channel, license plate, speed, lane, target type, plate color, vehicle color and violation type |
| Vehicle Search | (such as not wearing the seatbelt and calling while driving). Fuzzy search is supported and results can be exported to Excel or in CSV format. Storage full, external alarm, license plate blocklist, |
| Alarm Event | illegal access, and security issue alarm. |
| Built-in Software | Edge Storage Terminal Software |
| Port | |
| Disk Interface | Up to 1 SATA disk. |
| RS-232 | 1, for debugging data from the serial port. |
| RS-485 | 2 |
| USB | 1 USB 3.0 Port 10 (2 × RJ-45 10 M/100 M/1000 M self-adaptive |
| Network Port | Ethernet ports and 8 × RJ-45 10 M/100 M self-adaptive Ethernet ports |
| SIM Card | 1 |
| Antenna | 2 (1 × 3G/4G antenna port, 1 × GPS antenna port) Supports 12-ch network compression HD video input while in video access mode, and 4-ch network |
| Video Input | compression HD video input while in ANPR Composite mode. |
| Alarm Input | 3 |
| Alarm Output | 3 (opto-isolated output) |
| General | |
| Power Supply | 12 VDC |
| Power Consumption | < 20 W |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing 240.0 mm × 198.0 mm × 71.0 mm (9.45" × 7.80" × |
| Product Dimensions | 2.80") (L × W × H) |
| Net Weight | 1.6 kg (3.53 lb) |
| Gross Weight | 2.0 kg (4.41 lb) |
| Installation | Desktop mount |
| Ordering Information | |
| Type | Model Description Dahua Edge Storage |
| Edge Storage Terminal | DHI-ITSE0400-TA-G04 Terminal |
