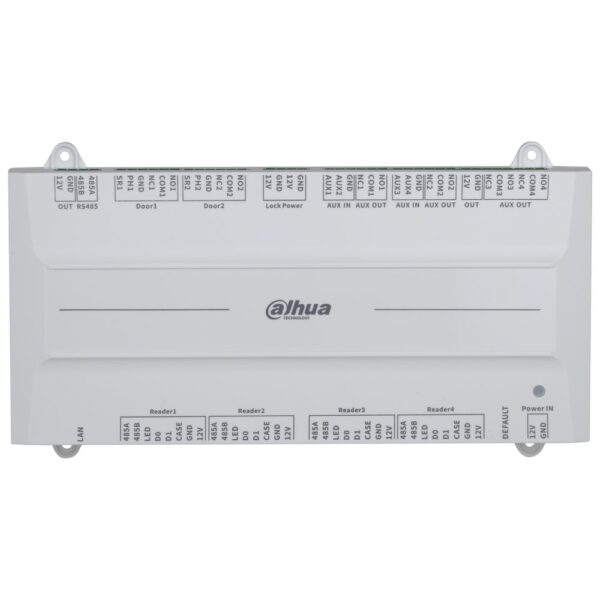

Controller 2 varchi e doppio lettore 4/4 I/O allarme

Name: Controller 2 varchi e doppio lettore 4/4 I/O allarme
Brand: Dahua
SKU: ASC4202B-D
Price: 222.65 EUR
Availability: BackOrder

Dahua

COD: ASC4202B-D Categorie: Controller controllo accessi, Controllo Accessi

222,65 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 445,30 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Centralina per controllo accessi a 2 varchi e doppio lettore per varco (entrata-uscita), 1 porta RJ-45 10/100 Mbps, 2 pulsanti apertura porta, 2 ingressi per sensore stato porta, 4 ingressi e 4 uscite allarme, 4 ingressi lettore RS-485 e 4 Wiegand, allarme anti-pass back, tamper, duress (anche impronta), timeout sensore porta, intrusione, sblocco tramite card, password, impronta digitale, QR code e da remoto, 100000 utenti, 100000 card, 10000 impronte e 500000 record, alimentazione 12 Vdc/PoE <3 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

System
Main Processor	Embedded Processor
Network Protocol	IPv4;UDP;P2P;IPv6;TCP
OSDP Protocol	Yes
Interoperability	ONVIF PROFILE C
SDK	Yes
API	Yes
Basic
Product Type	Controller
Buzzer	Yes
Casing Material	PC+ABS
Function
Verification Method	Card;Password;Fingerprint;Remote;QR Code
Period List	128 groups
Holiday Period	128 groups
Network Update	Yes
First User Unlock	Yes
Remote Verification	Yes
Restricted List/Trusted List	Yes Supports 4-channel RS-485 card readers and 4-channel
Peripheral Card Reader	Wiegand card readers.
Multi-door Interlock	Yes
Multi-user Authentication	Yes
Real-time Monitoring	Yes
Multi-factor Authentication	Yes
Web Configuration	Yes
Unidirectional or	Bidirectional
User
User (Card) Type	user, other users, custom user 1 and custom user 2
Capacity
User Capacity	100,000
Fingerprint Capacity	10,000
Card Capacity	100,000
Record Capacity	500,000
Port
RS-485	extension port.
Wiegand	4-channel input
Network Port	1 RJ-45, 10 Mbps/100 Mbps self-adaptive 4 channels; expandable to 8 channels when connected
Alarm Input	to an external alarm module.
Alarm Output	to an external alarm module.
Alarm Linkage	Yes
Exit Button	2 channels
Door Status Detection	2 channels
Lock Control	2 channels
Alarm
Anti-pass Back	Yes
Tamper Alarm	Yes
Duress Alarm	Yes
Door Sensor Timeout	Yes
Intrusion	Yes
Illegal Card Exceeding	Yes
Duress Fingerprint	Yes
General
Power Supply	（） 12 VDC 1A no peripheral devices
Power Consumption	≤ 3 W; it might alter if other devices are connected 210.0 mm × 106.0 mm × 34.1 mm (8.27" × 4.17" ×
Product Dimensions	1.34") (L × W × H) 255 mm × 166 mm × 87 mm (10.04" × 6.54" × 3.43") (L × W × H, 1 in inner carton)
Packaging Dimensions	512 mm × 269 mm × 196 mm (20.16" × 10.59" × 7.72") (L × W × H, carton)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	5%–95% (RH), non-condensing
Operating Environment	Indoor
Gross Weight	0.54 kg (1.19 lb)
Installation	Surface Mount;Guide Rail Mount
Ordering Information
Type	Model Description Dahua Double Door two-way
Access Controller	DHI-ASC4202B-D Access Controller
/n	Pictures in the document are for reference only, and the actual product shall prevail.
