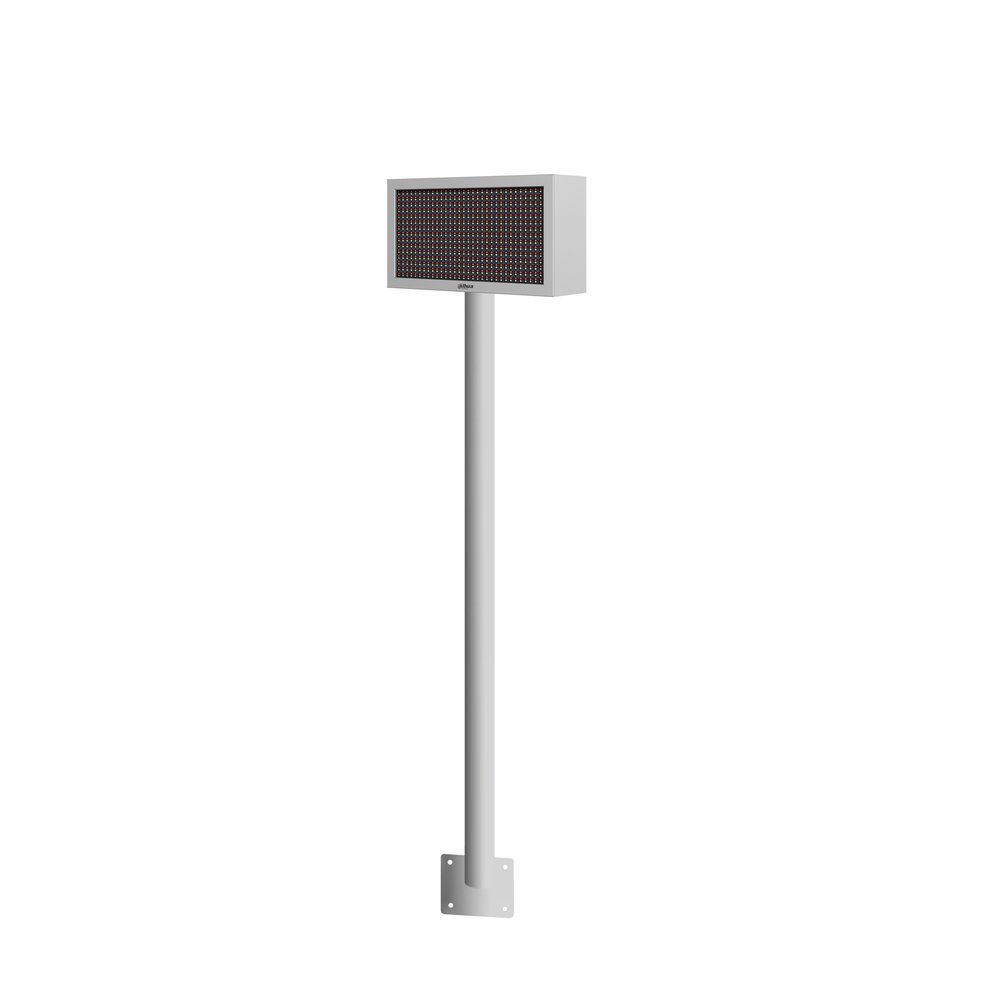

Schermo LED per indicazioni parcheggio da esterno IP54, 1 layer con numeri e frecce, luminosità 6000 nit (regolabile), 1 porta RJ45 100 Mbps, alimentazione 100~240 Vac <30 W
| Basic | |
| Monitor | 320 mm × 160 mm (12.60" × 6.30") (L × W) |
| Dimensions | 320 mm × 320 mm (12.60" × 12.60") (L × W) 320 mm × 480 mm (12.60" × 18.90") (L × W) Chinese characters, letters, numbers, arrows, the |
| Display Content | handicap parking sign, and more |
| Pixels Configuration | 1R1PG 512 dots (32 × 16); 1 line; pixel pitch: 10 mm (0.39") 1024 dots (32 × 32); 2 line; pixel pitch: 10 mm |
| Resolution | (0.39") 1536 dots (32 × 48); 3 lines; pixel pitch: 10 mm (0.39") |
| Service Life | 100,000 hours |
| Screen Brightness | 6000 cd/m (adjustable) 2 |
| Port | |
| Network Port | 1 × 100 Mbps Ethernet port (RJ-45) |
| Product Dimensions | 14.25") (L × W × H) 362 mm × 110 mm × 522 mm (14.25" × 4.33" × 20.55") (L × W × H) |
| Net Weight | 5 kg (11.02 lb), 7.3 kg (16.09 lb), 9.5 kg (20.94 lb) |
| Gross Weight | 6 kg (13.23 lb), 8.3 kg (18.3 lb), 10.5 kg (23.15 lb) |
| Installation | Pole mount; Pole mount bracket |
| Ordering Information | |
| Type | Model Description DHI-ITSXS-1301-12 Outdoor guidance screen (one way) |
| Outdoor | DHI-ITSXS-1301-22 Outdoor guidance screen (two ways) |
| guidance screen | DHI-ITSXS-1301-32 Outdoor guidance screen (three ways) ITSXS-1301-0F Pole mount |
| Installation | |
| 4-M8 × 25 screw | 120.0 [4.72] 120.0 [4.72] |
| 4-M8 × 70 expansion bolt | Cement base The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
