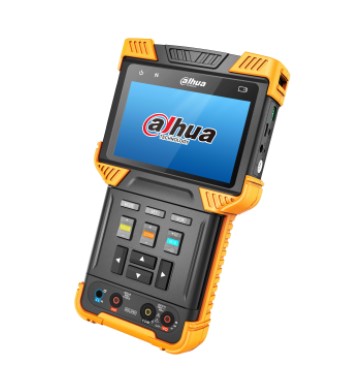

Tester 4" IP/analog
Tester multifunzione, display TFT 4" 800×480 e tastiera, 2 indicatori LED, IP, HDCVI/TVI/AHD/CVBS, 1 porta RS485, 2 porte LAN 1000 Mbps, 3 porte per multimetro digitale, alimentazione 12Vdc/PoE/batteria
Datasheet
| System | |
| Operation System | Multi-language interface: English, Chinese, Spanish, French, German, Turkish, Russian, Czech, Serbian, Portuguese, |
| Language | Polish, Romanian, Hebrew, Japanese, and Persian Button and keyboard |
| Operation Mode | Yes |
| Auto Standby/Shutdown | Enable/Disable |
| Keyboard Sound | 4.0" TFT screen, 800 × 480 resolution |
| Screen | Controlling keyboard: 13 keys of the main keyboard, and 45 keys of the flip keyboard |
| Keyboard | Others: Power button, reset button 2 * 35lm lights |
| LED Indicator Light | Online and local update |
| Update | ONVIF |
| Camera Access | 1MP, 1.3MP, 2MP, 3MP, 4MP, 5MP, 6MP, 8MP, and 12MP |
| Resolution | Yes |
| Camera Initialization | Live view, snapshots, records, digital zoom, and H.264/H.265 decoding |
| Video Display | Support IPC modifications such as resolution, IP, and account password, and restoring IPC to factory settings |
| Format | HDCVI, HDTVI, AHD, and CVBS (NTSC, PAL) HDCVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps, 6MP@20 fps, 4K@12.5 fps/15 fps HDTVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps |
| Resolution | AHD: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps CVBS: NTSC, PAL OSD menu display and PTZ control |
| Function Control | Live view, snapshots, records, and digital zoom |
| Video Display | Generate PAL and NTSC video test signals |
| Video Signal Generator | Generate HDCVI, HDTVI, and AHD video test signals with 720/1080P |
| Communication Protocol | More than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan |
| Baud Rate | 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, and 19200 bps Air discharge: ±8KV |
| ESD | Contact discharge: ±6KV |
| Others | |
| Audio Test | 1 channel audio input test and 1 channel audio output test |
| Camera Power Supply | 12V/2A DC power output to the camera |
| Network Test | IP address scanning, and Ping test |
| Voltage Test | Display voltage, data transmission, and signal strength of PoE/PSE device |
| Data Monitor | Receive and display protocol data with a RS–485 cable Test the length and attenuation of a network cable |
| Network Cable Test | Test range: 1–130 m (3.28–426.51 ft) (The maximum length varies depending on the material of the cable) |
| Digital Multimeter | Tests of AC/DC voltage, AC/DC current, resistance, capacitance, diode, and circuit conductivity |
| Audio | |
| USB | 1 USB Mini-B |
| Ethernet | 2 RJ45 10M/100M/1G |
| RS–485 | 1 |
| Digital Multimeter Port | 3 |
| Power | |
| Charging | PoE 48V-0.32A |
| Battery | Dedicate battery, replaceable, 7.4V polymer lithium ion batteries, up to 22.2Wh, working for about 8 hours |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 30%–95% (RH) |
| Appearance Color | Yellow |
| Dimensions | 193.0 × 115.0 × 37.1 mm (7.8" × 4.53"× 1.48") |
| Net Weight | 0.54 kg (1.19 lb) |
| Gross Weight | 1.40 kg (3.09 lb) |
