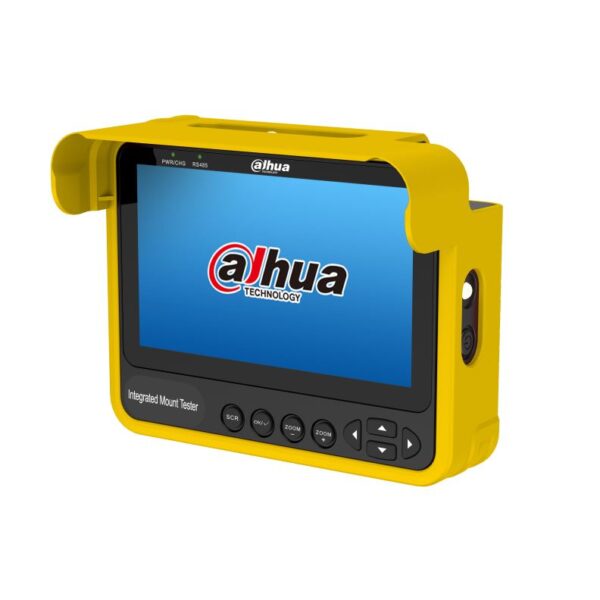

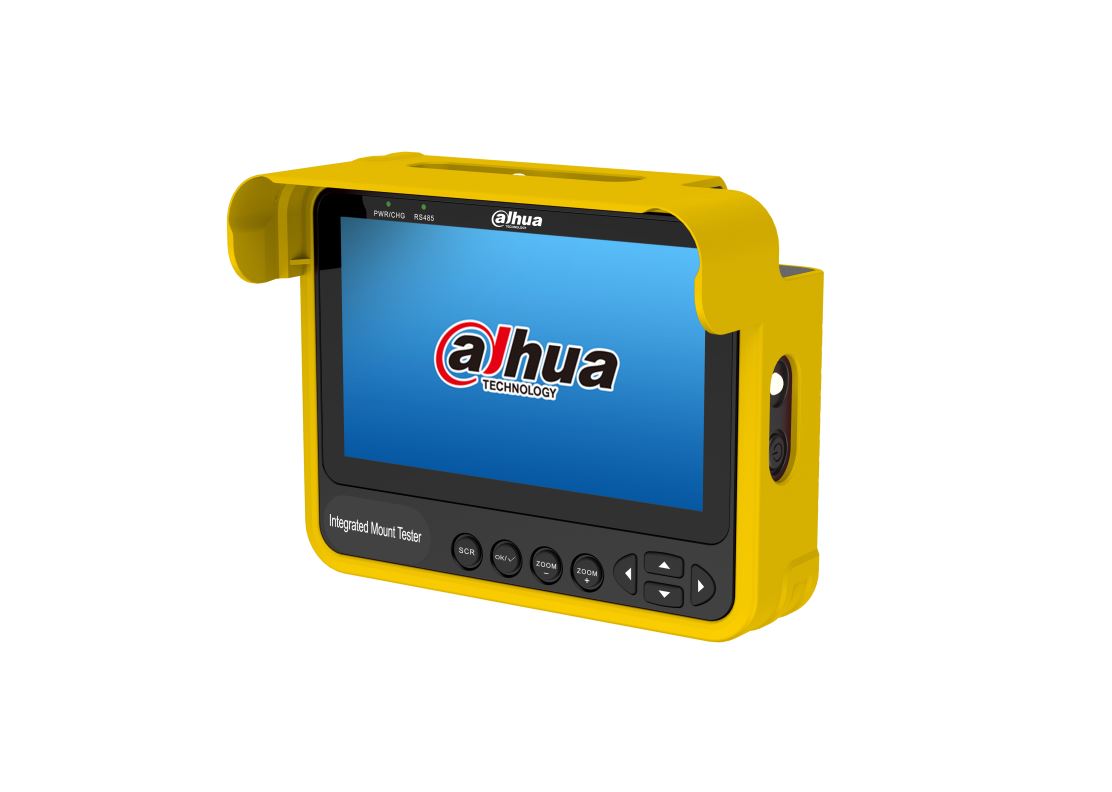

Tester 4.3" analog
Tester multifunzione, display TFT 4.3" 480×272 e tastiera, 3 indicatori LED, HDCVI/TVI/AHD/CVBS, 1 porta RS485, alimentazione 12 Vdc/batteria
Datasheet
| System | |
| Operation System | Multi-language interface |
| Language | Keyboard |
| Operation Mode | Yes |
| Auto Standby/Shutdown | Enable/disable |
| Keyboard Sound | 4.3" TFT screen, 480 × 272 resolution |
| Screen | Controlling keyboard: 8 keys |
| Keyboard | Others: power button 3* 35lm lights |
| LED Indicator Light | Local update |
| Format | HDCVI; HDTVI; AHD; CVBS (NTSC; PAL) HDCVI: 1MP: 1080 × 720@25/30/50/60 fps, 2MP: 1920 × 1080@25/30 fps, 4MP: 2560 × 1440@25/30 fps, 5MP: 2880 × 1620@25 fps, 5MP: 2592 × 1944@20 fps, 6MP: 2880 × 1920@20 fps, 8MP: 3840 × 2160@15 fps HDTVI: 1MP: 1080 × 720@25/30 fps, 2MP: 1920 × 1080@25 fps/30 fps, 4MP: 2560 × 1440@25/30 fps, 5MP: 2592 × 1944@20 fps |
| Resolution | AHD: 1MP: 1080 × 720@25/30/50/60 fps, 2MP: 1920 × 1080@25/30 fps, 4MP: 2560 × 1440@25/30 fps, 5MP: 2592 × 1944@20 fps CVBS: PAL: 720 × 576@25 fps, NTSC: 720 × 480@30 fps OSD menu display; PTZ |
| Function Control | Live view |
| Communication Protocol | More than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan |
| Baud Rate | 150 bps; 300 bps; 600 bps; 1200 bps; 2400 bps; 4800 bps; 9600 bps; 19200 bps Air discharge: ±8KV |
| ESD | Contact discharge: ±6KV |
| Others | |
| Audio Test | 1 channel audio input test |
| Camera Power Supply | 12V/1A DC power output to the camera |
| Audio | |
| USB | 1 USB micro-B, charging/data |
| RS–485 | 1 |
| Power | |
| Charging | Micro USB 5V/1A |
| Battery | 2* 18650 lithium iron batteries, up to 14.8Wh, working about 8 hours |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 30%–95% (RH) |
| Appearance Color | Yellow |
| Dimensions | 125.0 mm × 100.0 mm × 65.0 mm (4.92" × 3.94"× 2.56") (L × W × H) |
| Net Weight | 0.34 kg (0.75 lb) |
| Gross Weight | 0.74 kg (1.63 lb) |
