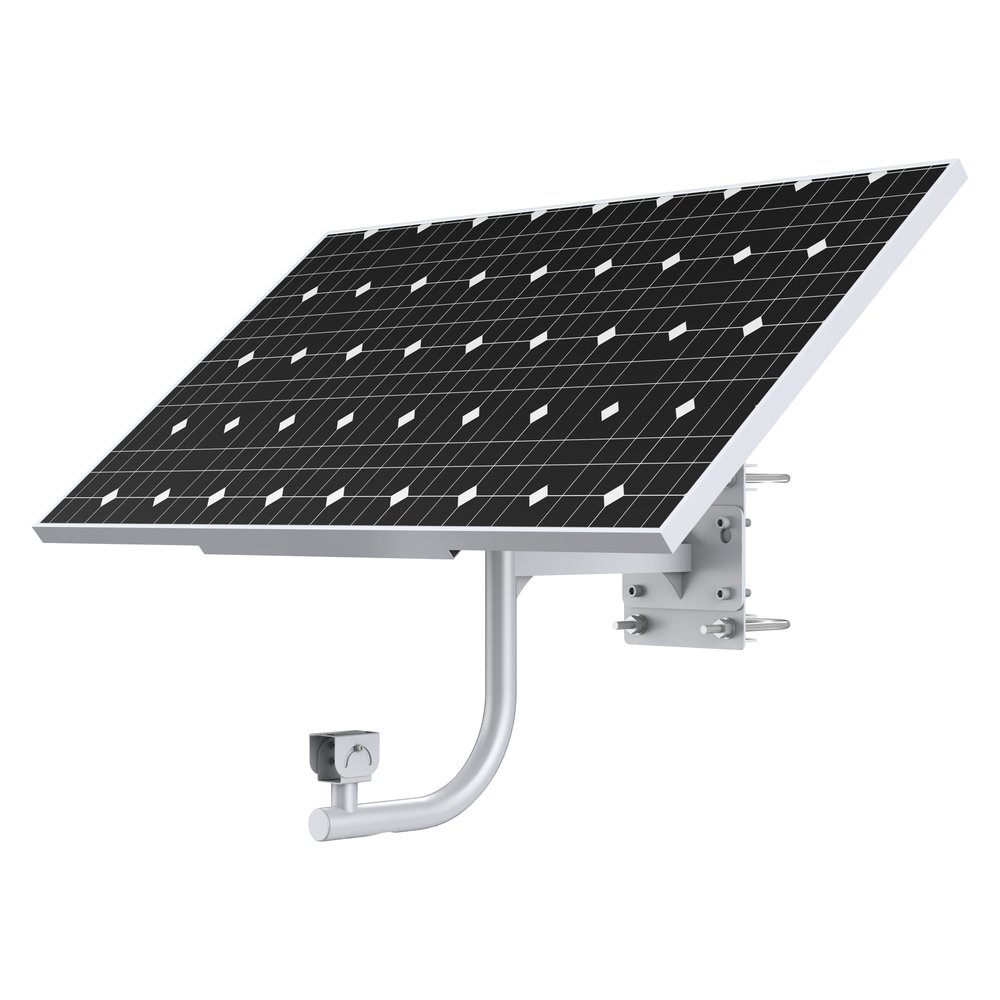

Sistema monitoraggio integrato a energia solare che include pannello solare monocristallino <100 W, regolatore di carica MPPT e staffa con predisposizione per 1x IPC-HFW3441DG-AS-4G-EAU-B, batteria compatibile PFM372-L45-4S14P (NON inclusa)
| Solar Panel | |
| Type | Monocrystalline silicon |
| Max. Power | 100 W |
| Output Voltage | 18.8 VDC |
| Solar Cell Efficiency | 21% |
| Max. Mechanical Load | 5400 Pa |
| Controller | |
| Type | MPPT |
| Operating Voltage | 12 VDC |
| Rated Charging Current | 10 A |
| Rated discharge current | 10 A |
| MPPT Tracking Efficiency | ≥ 99% |
| Communication Mode | RS485 |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Rated Charging Power | 130 W |
| Over-discharge Protection | 11.1 VDC |
| Voltage | Over-temperature ,over-discharge,overa-voltage |
| Port | |
| Power Output | (Φ0.22" × Φ0.08" × 0.47") Red: RS485-A |
| RS–485 | Black: RS485-B CSA authorized M15 2-core waterproof connector |
| Output Port | (connected to lithium battery) |
| General | |
| Main Body Material | Q235 |
| IP Rating | IP65 |
| Installation | Pole mount, Φ80mm~Φ150mm Solar panel: H: 360°, V: 20°/40°/60° |
| Adjustable Angle | Camera: H: 360°, V: 0°–75° |
| Product Dimensions | (32.1” x 33.3” x 35.2”) 880 mm × 765 mm × 275 mm (34.65" × 30.12" × |
| Packaging Dimensions | 10.83") |
| Packaging Method | 1 pc in each carton |
| Net Weight | 20.1 kg (44.31 lb) |
| Gross Weight | 23.8 kg (52.47 lb) |
| Environment | |
| Operating Altitude | < 3000 m (9842.5 ft) Areas with daily exposure to solar radiation for |
| Applicable Area | more than 3.5 hours |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | < 95% (RH) |
| Storage Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Humidity | < 95% (RH) |
| Ordering Information | |
| Type | Model Description Integrated solar power system |
| Solar Series | DH-PFM378-B100-WB (Without Lithium Battery) Integrated Solar Lithium PFM372-L45-4S14P Battery |
| Accessories | |
| (Optional) | IPC-HFW3241DF-AS-4G 4G Bullet Network Camera |
