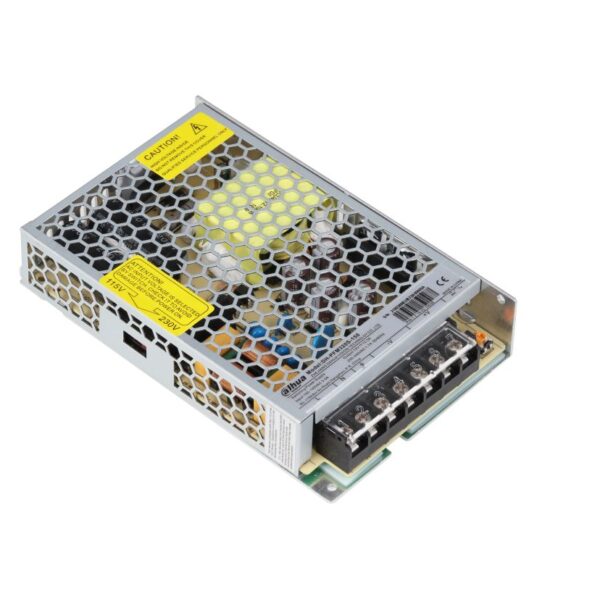

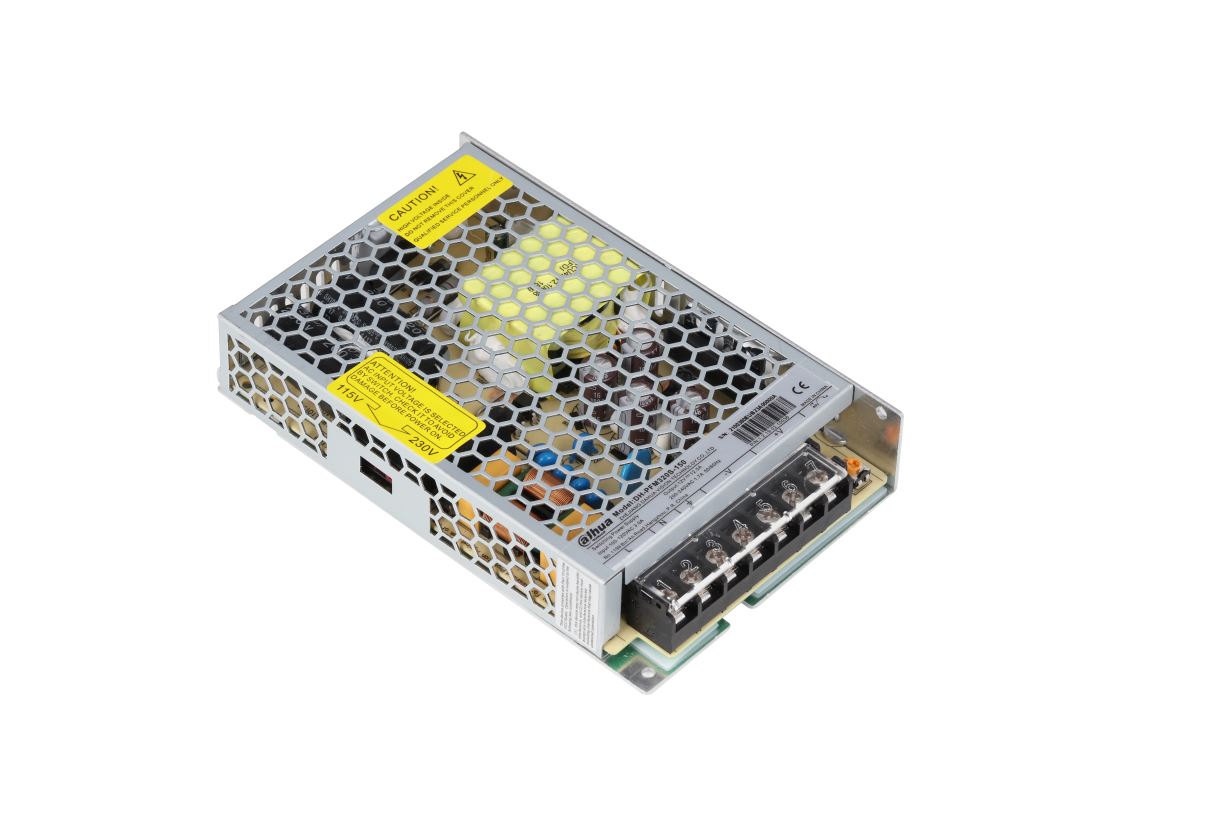

Alimentatore switching 12 Vdc 12.5A 150 W
Datasheet
| Model | DH-PFM320S-150 |
| Input Voltage Range | 88~132Vac/176~264Vac |
| Efficiency | 85.0% (@230Vac) |
| Output Voltage | 12Vdc ( terminal output ) |
| Out Voltage Tolerance | ±5% |
| Adjustable Range for DC Voltage | ±10% (10.8Vdc~13.2Vdc) |
| Rated Output Current | 12.5A |
| Output Power | 150W |
| No Load Power Consumption | <0.5W |
| Surge Protected | Line to ground: ± 2000V Line to line: ± 1000V |
| ESD | Contact discharge: ± 6000V Air discharge: ± 8000V |
| Working Temperature | – 20 ℃ ~ +50 ℃ ( 60% output at +70 ℃ ) -4 ℉ ~+ 122 ℉ ( 60% output at +158 ℉ ) |
| Working Humidity | <90% RH |
| Weight | 0.4kg(0.88lb) |
| Dimension(LxWxH) | 159mmx97mmx30mm (6.26”x3.82“x1.18”) |
| Installation | Wall mount/Ceiling mount |
| Color | Metallic silver |
| Certification | CE, FCC |
