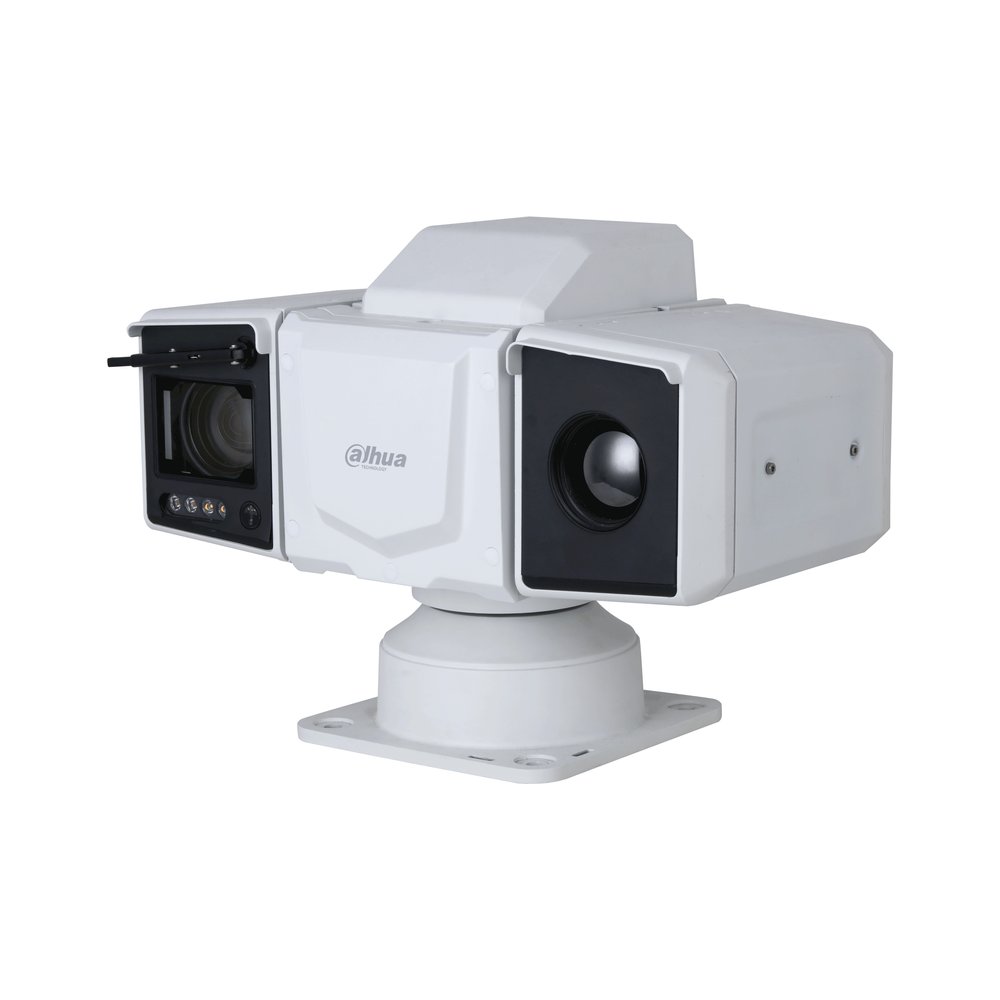

Mini PTZ termica ibrida IP AI 640x512/4 MP 35 mm/zoom 45x - immagine 1

Mini PTZ termica ibrida IP AI 640×512/4 MP 35 mm/zoom 45x

Name: Mini PTZ termica ibrida IP AI 640x512/4 MP 35 mm/zoom 45x
Brand: Dahua
SKU: TPC-PT8641MA-B35Z45
Price: 18845.34 EUR
Availability: BackOrder

Dahua

COD: TPC-PT8641MA-B35Z45 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

18.845,34 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 37.690,68 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera termica ibrida brandeggiata IP AI da interno/esterno IP66 con heater, risoluzione termica 640×512 a 25fps, sensibilità 35 mK, ottica termica 35 mm, spettro visivo 8~14 µm, sensore standard 1/1.8" 4 MP, ottica standard 5.5~248 mm, zoom ottico 45x, luminosità 0.001 lux F1.4, portata illuminazione fino a 100 m, ICR, PAN 360° endless, TILT -90°~+90° con 300 preset, 5 scan, 8 tour e 5 pattern, 1 porta LAN 10/100 Mbps, 1 porta RS485, 1 porta CVBS/BNC, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, WDR, 2/3D NR, IVS (protezione perimetrale), rilevamento calore, traccia punti caldi/freddi, classificazione persone/veicoli, slot micro SD card (512 GB), alimentazione 10~36 Vdc <50 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	640 (H) × 512 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤35 mK (@f/1.0)
Focal Length	13 mm; 25 mm; 35 mm; 50 mm 13 mm: H: 32.91°; V: 26.59° 25 mm: H: 17.46°; V: 14.01°
Field of View	35 mm: H: 12.52°; V: 10.03° 50 mm: H: 8.78°; V: 7.03°
Thermal Focus Control	Fixed-focal 13 mm: 3.5 m (11.48 ft) 25 mm: 13 m (42.65 ft)
Close Focus Distance	35 mm: 26 m (85.3 ft) 50 mm: 52 m (170.6 ft)
Digital Detail Enhancement	Yes
Thermal Image	Electronic Image Stabilization (EIS)
Digital Zoom	24 levels
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180° 18 (white hot/black hot/fusion/rainbow/golden autumn/
Color Palettes	midday/iron red/amber/jade/sunset/icefire/painting/ pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Pixel	4 MP Center ≥ 1200 TVL
Horizontal Definition	Edge ≥ 900 TVL Color: 0.001 lux@F1.4
Min. Illumination	Black & white: 0.0001 lux@F1.4 0 lux (IR on)
Visible AGC	Auto/Manual
Visible Noise Reduction	2D NR/3D NR
S/N Ratio	>55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp;
White Balance	street lamp; natural
Defog
Image Stabilization	Electronic Image Stabilization (EIS)
Electronic Shutter Speed	1 s–1/30,000 s (auto/manual)
BLC	Yes
WDR	Yes
HLC	Yes
Day/Night	Auto (ICR); Color; B/W
Iris Control	Manual/Auto
Image Flip	180°
Exposure Compensation	Yes
Visible Focus Control	Auto/semi-auto/manual
Focal Length	5.5 mm–248 mm H: 63.5°–1.9°
Field of View	V: 37.4°–1.1°
Close Focus Distance	0.5 m–2 m (1.64 ft–6.56 ft)
Illuminator On/Off Control	Manual/Auto
Illumination Distance	100 m (328.08 ft)
Audio And Video
Video Compression	H.265; H.264M; H.264H; H.264B Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default) Sub stream: 640 × 512; 320 × 256; 640 × 512 (default)
Resolution	Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default) Sub stream: 704 × 576; 352 × 288; 352 × 288 (default) Thermal (50 Hz): Main stream: 1 fps–50 fps, 50 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default
Video Frame Rate	Thermal (60 Hz): Main stream: 1 fps–60 fps, 60 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Image Encoding Format	JPEG
Ptz
Pan/Tilt Range	Tilt: –90° to +90° Pan: 0.1°/s –100°/s
Manual Control Speed	Tilt: 0.1°/s –80°/s Pan: 0.1°/s –100°/s
Preset Speed	Tilt: 0.1°/s –80°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Privacy Masking	4 blocks
Idle Motion	Preset; tour; scan; pattern; pan
Function
Two-way Audio	Yes HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
Network Protocol	FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI)	Yes
Storage
Micro SD Card (Max.)	512 GB
Interoperability	ONVIF; CGI; Dahua SDK IE: IE8 and later (includs the browsers with IE kernel, such as 360 Explorer, Sougou Explorer)
Browser	Chrome: 42 and earlier Firefox: 42 and earlier
User/Host	Up to 12 (total bandwidth: 64 MB) Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 20 users; supports multi-level user permissions (2
User Management	levels): management group and user group Network disconnection detection; IP conflict detection;
Malfunction Detection	memory card state detection; memory space detection
PIP	Yes
Intelligence
Heat Detection	Yes. Marks the detected anomaly.
Cold/Hot Spot Trace	Yes
IVS (Perimeter Protection)	Yes. Supports tripwire and intrusion.
Target Distinction	Human/Vehicle Classification
Port
Analog Output	1 × CVBS output; BNC port
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	2
Audio Input	1
Audio Output	1
RS-485	1
Power
Power Supply	Wide input voltage 10–36 VDC Basic: 30 W (illuminator off, heater off)
Power Consumption	Max: 43 W (illuminator on, heater off); 50 W (illuminator on, heater on)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +80 °C (–40 °F to +176 °F)
Physical Characteristics
Protection	IP66 Surge protection: 6 kV
Reliability	Air discharge: 15 kV Contact discharge: 8 kV
Structure
Product Dimensions	10.9") (L × W × H) 485 mm × 360 mm × 390 mm (19.09" × 14.17" × 15.35")
Packaging Dimensions	(L × W × H)
Net Weight	≤9 kg (19.84 lb)
Gross Weight	≤12 kg (26.46 lb)
Heat Detection Distance
Focal Length	Max. Distance
13 mm	900 m (2,952.76 ft)
25 mm	1,500 m (4,921.26 ft)
35 mm	2,100 m (6,889.76 ft)
50 mm	3,000 m (9,842.52 ft)
Focal Length	Distance (Vehicle) Distance (Human)
13 mm	273 m (895.67 ft) 91 m (298.56 ft)
25 mm	525 m (1,722.44 ft) 175 m (574.15 ft)
35 mm	735 m (2,411.42 ft) 245 m (803.81 ft)
50 mm	1,050 m (3,444.88 ft) 350 m (1,148.29 ft)
Dri Distance
Focal Length	Distance Distance Distance ① ② ③ Vehicle: 208 m Vehicle: 1,661 m Vehicle: 415 m (682.41 ft); (5,449.48 ft); (1,361.55 ft);
13 mm	Human: 542 m Human: 135 m Human: 68 m (1,778.22 ft) (442.91 ft) (223.10 ft) Vehicle: 3,194 m Vehicle: 799 m Vehicle: 399 m (10,479.00 ft); (2,578.74 ft); (1,309.06 ft);
25 mm	Human: 260 m Human: 130 m Human: 1,042 m (857.98 ft) (426.51 ft) (3,418.64 ft) Vehicle: 4,472 m Vehicle: 1,118 m Vehicle: 559 m (14,671.92 ft); (3,667.98 ft); (1,833.99 ft);
35 mm	Human: 1,458 m Human: 365 m Human: 182 m (4,783.46 ft) (1,197.51 ft) (597.11 ft) Vehicle: 1,597 m Vehicle: 6,389 m Vehicle: 799 m (5,239.50 ft); (20,961.29 ft); (2,621.39 ft)
50 mm	Human: 2,083 m Human: 260 m Human: 521 m (6,833.99 ft) (853.02 ft) (1,709.32 ft)
Ordering Information
Type	Model Description Thermal: 13 mm; DHI-TPC-PT8641MA-B13Z45V1- Visible: 5.5 mm–248 mm; DC-IR-S22 PTZ outlet: side; Illuminator type: IR Thermal: 25 mm; DHI-TPC-PT8641MA-B25Z45V1- Visible: 5.5 mm–248 mm; DC-IR-S22 PTZ outlet: side; Illuminator type: IR
