Saldi

Bullet termica IP AI 400x300 7.5 mm - immagine 1

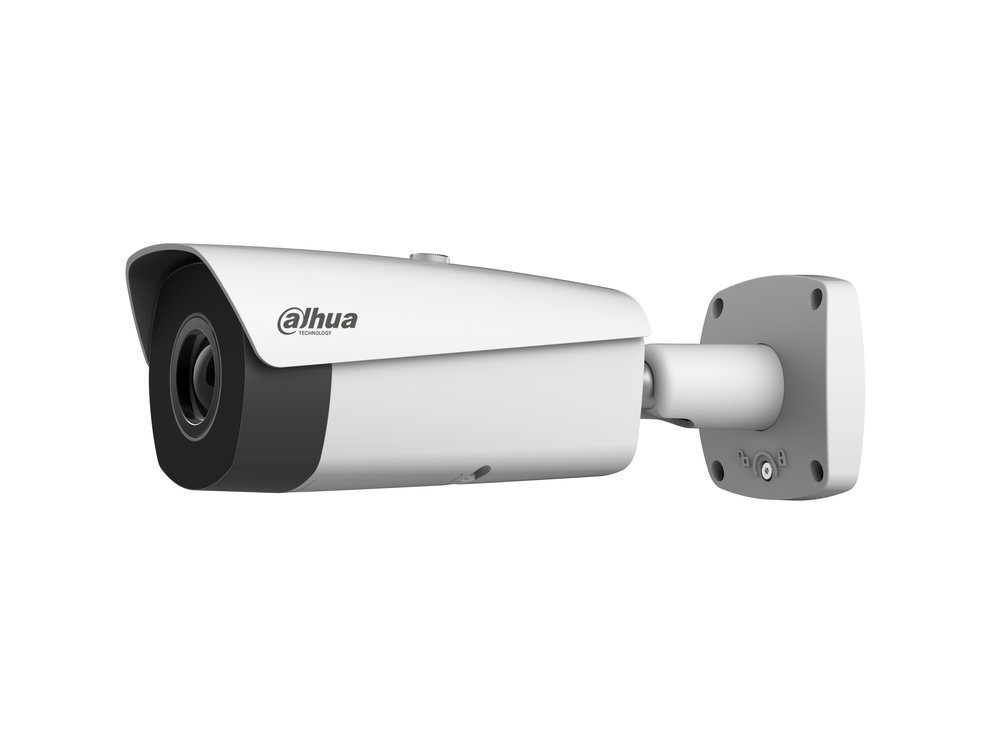

Bullet termica IP AI 400×300 7.5 mm

Name: Bullet termica IP AI 400x300 7.5 mm
Brand: Dahua
SKU: TPC-BF5401-B7-S2
Price: 3998.55 EUR
Availability: BackOrder

Dahua

COD: TPC-BF5401-B7-S2 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

3.998,55 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 7.997,10 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet termica IP AI da interno/esterno IP67, risoluzione termica 400×300 a 25fps, sensibilità 35 mK, ottica termica 7.5 mm, spettro visivo 8~14 µm, 1 porta LAN 10/100 Mbps, 1 porta CVBS/BNC, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 RS485, IVS (protezione perimetrale), rilevamento calore, traccia punti caldi/freddi, classificazione persone/veicoli, micro SD card (512 GB), alimentazione 12 Vdc/ePoE <14 W

Thermal Camera
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	400 (H) × 300 (V)
Pixel Size	17 μm
Thermal Sensitivity (NETD)	40 mK
Spectral Range	8 μm–14 μm
Image Setting	Brightness/Sharpness/ROI/AGC/FFC/3D DNR 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/
Color Palettes	painting/pomegranate/emerald /spring/summer/ autumn/winter)
Thermal Lens
Lens Type	Fixed/F1.0
Focus Control	Athermalized, Focus-free
Focal Length	7.5 mm; 13 mm; 25 mm; 35 mm 7.5 mm H: 53.7°; V: 39.7° : 13 mm: H: 30.2°; V: 22.6°
Angle of View	25 mm:H: 15.5°; V: 11.6° 35 mm:H: 11.1°; V: 8.3°
Video
Compression	H.265 H.264; MJPEG ; Main Stream: Thermal: 1280 × 1024; 720p; 400 × 300@25/30 fps
Frame Rate	Sub Stream: Thermal: 640 × 512; 400 × 300@25/30 fps CBR/VBR
Bit Rate Control	H.264: 640–8192 Kbps
Motion Detection	Off/On (4 zone, Rectangle)
Region of Interest	Off/On (4 zone)
Digital Zoom	4 × (19 levels)
Flip	180°
Mirror	Off/On
Privacy Masking	Off/On (4 area, Rectangle)
Audio
Compression	G.711A; G.711Mu; AAC; PCM
Intelligence
IVS	Tripwire, Intrusion Heat detection & alarm, Cold/Hot spot trace,
Advanced Intelligent Functions	Human/Vehicle classification
Network
Ethernet	RJ-45 IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP;
Protocol
Interoperability	ONVIF Profile S & G, API
Streaming Method	Unicast/Multicast
Max. User Access	10 Users/20 Users Micro SD (256GB) Memory status display (Normal / Error / Active /
Edge Storage	Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording
Web Viewer	IE8; <Chrome42; <Firefox42 >
Management Software	SmartPSS; DSS
Smart Phone	Android; iOS
Certifications
Certification	CE (EN 60950: 2000); FCC (FCC Part 15 SubpartB )
Port
Video Interface	1 Port (CVBS/BNC)
Audio Interface	1/1 In/Out
RS485	Yes
Electrical
Power Supply	12 VDC/PoE ePoE /
Power Consumption	Max. 13 W
Environmental
Operating Condition	* Start up should be done at above -40°C (-40°F)
Storage Conditions	–40°C to +70°C (–40°F to +158°F)/Less than 95% RH
Ingress Protection	IP67
Construction
Casing	Metal 291 mm × 103 mm × 97 mm (11.46" × 4.06" × 3.82")
Dimensions	(L × W × H)
Net Weight	1.5 Kg (3.31 lb)
Gross Weight	1.9 Kg (4.19 lb)
Dri Distance
Focal Length	Distance Distance Distance ① ② ③ Vehicle: 676 m Vehicle: 169 m Vehicle: 85 m (2,217.85 ft); (554.46 ft); (278.87 ft);
7.5 mm	Human: 221 m Human: 55 m Human: 28 m (725.07 ft) (180.45 ft) (91.86 ft) Vehicle: 1,173 m Vehicle: 293 m Vehicle: 147 m (3,848.43 ft); (961.29 ft); (482.28 ft);
13 mm	Human: 382 m Human: 96 m Human: 48 m (1,253.28 ft) (314.96 ft) (157.48 ft) Vehicle: 2,255 m Vehicle: 564 m Vehicle: 282 m (7,398.29 ft); (1,850.39 ft); (925.20 ft);
25 mm	Human: 735 m Human: 184 m Human: 92 m (2,411.42 ft)1 (603.67 ft) (301.84 ft) Vehicle: 3,157 m Vehicle: 789 m Vehicle: 395 m (10,357.61 ft); (2,588.58 ft); (1,295.93 ft);
35 mm	Human: 1,029 m Human: 257 m Human: 129 m (3,375.98 ft) (843.18 ft) (423.23 ft)
of Perimeter Protection Distance (IVS Distance) above.	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Ordering Information
Type	Part Number Description DH-ITPC-BF5401-B7 Thermal:400 300; 7.5 mm lens × DHI-TPC-BF5401-B13 Thermal:400 300; 13 mm lens ×
BF5401	DHI-TPC-BF5401-B25 Thermal:400 300; 25 mm lens × DHI-TPC-BF5401-B35 Thermal:400 300; 35 mm lens × PFA121 Junction box
Accessories
(Optianal)	PFM320D Power Adapter
Accessories
：	PFA152-E PFM320D
PFA121	Power Adapter Pole Mount
