Saldi

Bullet termica ibrida IP AI 256x192/4 MP 3.5/4 mm - immagine 1

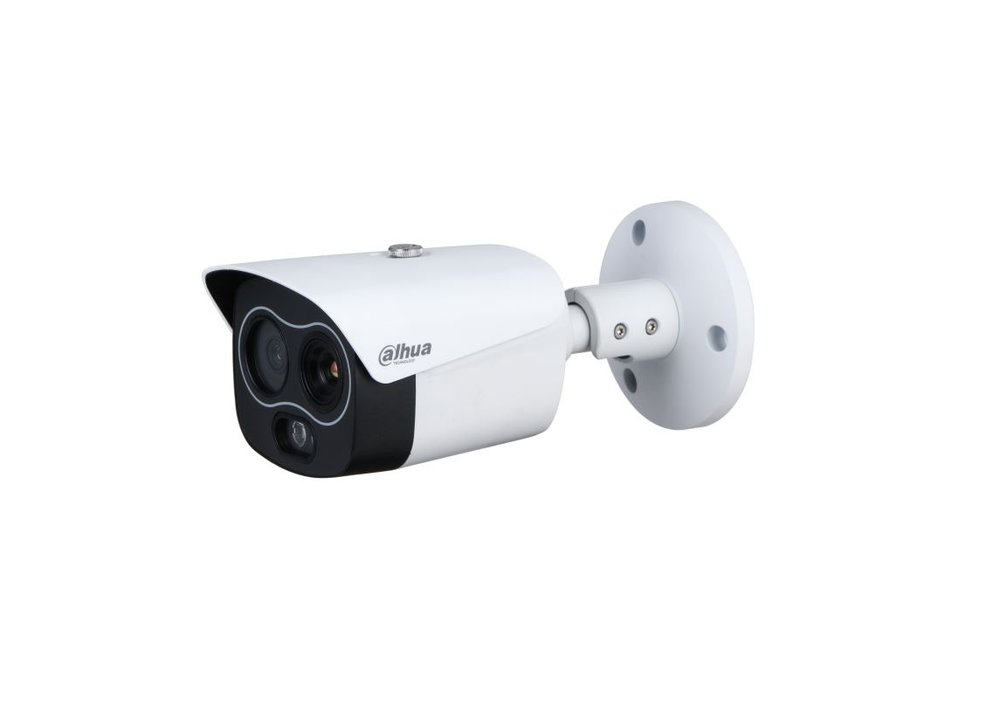

Bullet termica ibrida IP AI 256×192/4 MP 3.5/4 mm

Name: Bullet termica ibrida IP AI 256x192/4 MP 3.5/4 mm
Brand: Dahua
SKU: TPC-BF1241-B3F4-DW-S8
Price: 747.25 EUR
Availability: BackOrder

Dahua

COD: TPC-BF1241-B3F4-DW-S8 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

747,25 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.494,50 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

TPC-BF1241-B3F4-DW-S8 – Telecamera di videosorveglianza Termica – IP PoE ONVIF – Eureka – Rilevamento fumo, incendi e allarme – Doppia ottica: termica (3.5mm) / visibile (4mm) – Risoluzione 4MP per l’ottica visibile / 25

Descrizione Dettagli Prodotto Scheda tecnica Ulteriori Dettagli Download

ONVIF® PoE IP – Telecamera Termica Professionale – Dahua – TPC-BF1241-B3F4-DW-S8

Tecnologia Dual-Lens, doppia ottica (Termica 3.5mm / Visibile 4mm 4MP )

Tecnologia Dual-Sensor , doppio sensore (Vanadium Oxide Uncooled Focal Plane Detector – Termica / 1/2.7″ 4MP CMOS – Visibile)

Risoluzione 256×192 (ottica termica) / 4MP (ottica visibile)

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Max. Resolution	256 (H) × 192 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Thermal Sensitivity	< 40 mK (@f/1.0, 25 Hz, 300 K)
(NETD)	3.5 mm: H: 50.6°; V: 37.8°
Field of View	7 mm: H: 24°; V: 18° 10 mm: H: 17.3°; V: 13.1° 3.5 mm: 0.5 m (1.64 ft)
Close Focus Distance	7 mm: 1 m (3.28 ft) 10 mm: 2 m (6.56 ft)
Aperture	F1.0
Digital Detail	Yes
Digital Zoom	16 levels
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
Image Flip	180° 18 (white hot/black hot/fusion/rainbow/golden autumn/
Color Palettes	midday/iron red/amber/jade/sunset/icefire/painting/ pomegranate/emerald /spring/summer/autumn/winter)
Fusion Mode	3 (Warm color; Cool color; Ironred)
Visible
Image Sensor	1/2.7'' CMOS
Max. Resolution	2336 (H) × 1752 (V)
Pixel	4 MP
Electronic Shutter Speed	1/30,000 s–1 s Color: 0.05 lux
Min. Illumination	Black & white: 0.005 lux 0 lux (IR on)
IR Illumination Distance	30 m (98.43 ft)
IR Illuminator On/Off	Auto; Manual
Control	4 mm: F1.6
Aperture	8 mm: F2.0 12 mm: F2.0 4 mm: H: 71.2°; V: 52°
Field of View	8 mm: H: 33.4°; V: 25° 12 mm: H: 22°; V: 16.6°
Focus Control	Fixed 4 mm: 1 m (3.28 ft)
Close Focus Distance	8 mm: 2.5 m (8.2 ft) 12 mm: 2.5 m (8.2 ft)
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	DWDR
HLC	Yes Auto; Manual; Indoor; Outdoor; Tracking; Street lamp;
White Balance	Natural
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
S/N Ratio	≥55 dB
Region of Interest (RoI)	Yes
Image Flip	180°
Exposure Compensation	Yes
Intelligence
General Intelligence	Tripwire; Intrusion Heat Detection & Alarm Cold & Hot Spot Trace
Advanced Intelligence	Human & Vehicle Classification Smoking Detection Call Detection
Video And Audio
Video Compression	H.265; H.264; H.264H; MJPEG Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default)
Resolution	Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)
Thermal
Frame Rate	Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Protocol
Edge Storage	Micro SD card (256 G)
Interoperability	ONVIF; CGI; DaHua SDK IE: IE 8 and later
Browser	Google: 42 and earlier Firefox: 42 and earlier
User/Host	10 Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access
Network
Audio Input	1
Audio Output	1
Alarm Input	2
Alarm Output	2
RS-485	1 pair Standard No.: 802.11b/g/n(1×1) Frequency: 2.4 GHz Transmission rate: 150 Mbps
Wi-Fi Optional	Transmission distance: 150 m (no shield, no disturbance) Transmission power (Max.): at fc +/-22 MHz -20 dBr; at fc +/-40 MHz -28 dBr; at fc > +/-60 MHz -45 dBr
Power
Power Supply	12 VDC ± 20%; PoE Basic: <5.7 W (12 VDC, illuminator off); 6.8 W (PoE)
Power Consumption	Max: <8.2 W (12 VDC, illuminator on, speaker on); 9.4 W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage Temperature	–30 °C to +70 °C (–22 °F to ﹢158 °F)
Operating Humidity	≤95%
Protection	IP67
Structure
Product Dimensions	(L × W × H) 279 mm × 187 mm × 138 mm (10.98'' × 7.36'' × 5.43'')
Packaging Dimensions	(L × W × H)
Net Weight	≤ 0.9 kg (1.98 lb)
Gross Weight	≤ 1.3 kg (2.87 lb)
Heat Detection Distance
Focal Length	Max. Distance
3.5 mm	45 m (147.64 ft)
7 mm	86 m (282.15 ft)
10 mm	123 m (403.54 ft)
Focal Length	Distance (Vehicle) Distance (Human)
3.5 mm	73.5 m (241.14 ft) 24.5 m (80.38 ft)
7 mm	146.5 m (480.64 ft) 49 m (160.76 ft)
10 mm	209 m (685.70 ft) 70 m (229.66 ft)
Dri Dsitance
Focal Length	Distance Distance Distance ① ② ③ Vehicle: 447 m Vehicle: 112 m Vehicle: 56 m (1,466.54 ft); (367.45 ft); (183.73 ft);
3.5 mm	Human: 146 m Human: 36 m Human: 18 m (479.00 ft) (118.11 ft) (59.06 ft) Vehicle: 894 m Vehicle: 224 m Vehicle: 112 m (2,933.07 ft); (734.91 ft); (367.45 ft);
7 mm	Human: 292 m Human: 73 m Human: 36 m (958.01 ft) (239.50 ft) (118.11 ft) Vehicle: 1,278 m Vehicle: 319 m Vehicle: 160 m (4,192.91 ft); (1,046.59 ft); (524.93 ft);
10 mm	Human: 417 m Human: 104 m Human: 52 m (1,368.11 ft) (341.21 ft) (170.60 ft)
Ordering Information
Type	Model Description Thermal: 256 × 192 3.5 mm lens DHI-TPC-BF1241-B3F4-DW-S8 Visible: 4 MP 4 mm lens Thermal: 256 × 192 7 mm lens DHI-TPC-BF1241-B7F8-DW-S8 Visible: 4 MP 8 mm lens DHI-TPC-BF1241-B10F12- Thermal: 256 × 192 10 mm lens DW-S8 Visible: 4 MP 12 mm lens
Accessories
(Optional)	PFM320D Power Adapter The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Optional:
Pole-mount bracket	Junction box Power adapter

Informazioni addizionali

Prodotti Correlati

Saldi

Anteprima rapida

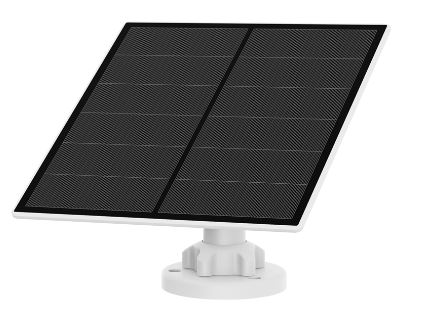

Pannello Solare Isiwi SOLAR3 ISW-PLS3 per alimentazione telecamera con attacco Type-C. Compatibile con telecamere FRI+, REDI, REDI+
