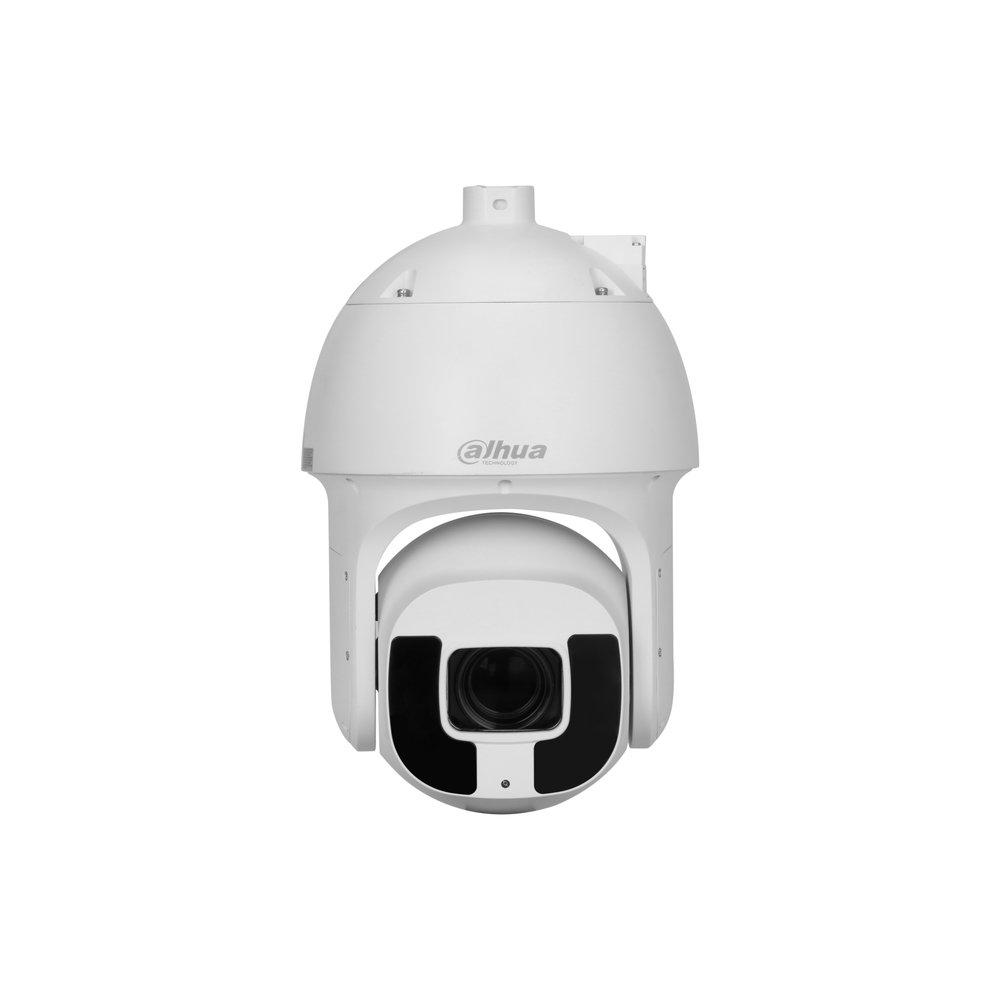

PTZ IP AI 8 MP zoom 33x IR

Name: PTZ IP AI 8 MP zoom 33x IR
Brand: Dahua
SKU: SD8A3833GA-HNV
Price: 3041.46 EUR
Availability: BackOrder

Dahua

COD: SD8A3833GA-HNV Categorie: Telecamere IP, Videosorveglianza Tag: 8MP

3.041,46 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 6.082,92 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI WizMind Starlight+ 8" da interno/esterno IP67 antivandalo IK10, sensore CMOS Starvis progressivo 1/1.8", risoluzione 8 MP a 25fps, rotazione PAN 360° endless / TILT -30°~90°, auto flip 180°, H.265+, ICR, zoom ottico 33x (6.5~214.5 mm ƒ1.6~4.9) / 16x digitale, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 500 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati video, face detection, auto tracking 3.0, SMD 4.0, Quick Pick, micro SD card (512 GB), alimentazione 36 Vdc/Hi-PoE <33 W, alimentatore e staffa da parete PFB306W inclusi

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Camera
Image Sensor	1/1.8" CMOS
Pixel	8 MP
Max. Resolution	3840 (H) × 2160 (V)
ROM	4 GB
RAM	2 GB
Electronic Shutter Speed	1 s–1/30,000 s
Scanning System	Progressive 0.001 lux@F1.6 (Color, 30 IRE);
Min. Illumination	0.0001 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)
Illumination Distance	500 m (1640.42 ft) (IR)
Illuminator On/Off Control	Zoom Prio; Manual; Auto; Off
Illuminator Number	10 (IR light)
Lens
Focal Length	6.5 mm–214.5 mm
Max. Aperture	F1.6–F4.9
Field of View	H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4°
Optical Zoom	33 ×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	1 m–8 m (3.28 ft–26.25 ft)
Iris Control	Auto; manual; iris prio Detect Observe Recognize Identify 3,808 m 1504.2 m 761.6 m 380.8 m (12493.44 ft) (4935.04 ft) (2498.69 ft) (1249.34 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	180° Pan: 0°/s–240°/s;
Manual Control Speed	Tilt: 0°/s–100°/s Pan: 0°/s–240°/s;
Preset Speed	Tilt: 0°/s–100°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Pattern; Preset; Scan; Tour
PTZ Protocol	DH-SD Pelco-P/D (Auto recognition)
Intelligence
Video Metadata	snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles. Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving;
IVS (Perimeter Protection)	parking detection; people gathering; human alarm classification; linkage tracking. Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you
Face Detection	can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto Tracking	Auto tracking 3.0
SMD	SMD4.0
Quick Pick	Yes
Active Deterrence
Sound Warning	custom sound alarms. Play time can be set from 1 to 10.
Video
Video Compression	H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability	3 streams 4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 720p
Resolution	(1280 × 720); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 8M/4M/1080p/960p/720p@(1–25/30
Video Frame Rate	fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/960p/720p@(1-25/30 fps)
Bit Rate Control	CBR/VBR H264: 128 Kbps–16,384 Kbps
Video Bit Rate	H265: 51 Kbps–11,776 Kbps
Day/Night	Auto; Color; B/W; Electronic
BLC	Yes
WDR	120 dB
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium
White Balance	lamp; natural light; street lamp
Gain Control	Auto; manual; gain prio
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Image Stabilization	Electronic Image Stabilization (EIS)
Defog
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the
Privacy Masking	same view; Multiple colors available
S/N Ratio	≥55 dB
Audio
Audio Compression	G722.1; G729; G723
Network
Network Port	RJ-45 (10/100 Base-T) FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RT
Network Protocol	P;802.1x;QoS;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;IC MP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;RTSP;ARP
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI; SDK
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 52 and later versions; Safari 10 and later versions
Management Software	DMSS; DSS Pro
Mobile Client	iOS; Android
Port
RS-485	1 (baud rate: 1200 bps–9600 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire)
Alarm Input	7 (on-off value input: 0–5 VDC)
Alarm Output	2 channels Capture; recording; send email; preset; tour; pattern;
Alarm Linkage	alarm digital output; audio Motion/tampering detection; audio detection; network disconnection detection; IP conflict
Alarm Event	detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply	HI-PoE Basic: 17 W;
Power Consumption	Max: 33 W (illuminator +Heater+ PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95% TVS 8000 V lightning proof;IK10;IP67; surge
Protection	protection; voltage transient protection
Structure
Product Dimensions	415.9 mm × Φ 262.0 mm (16.37" × Φ 10.31")
Net Weight	8.5 kg (18.74 lb)
Gross Weight	13.1 kg (28.88 lb)
Ordering Information
Type	Model Description DH-SD8A3833GA-HNV 8MP 33x Starlight+ IR Network PTZ Camera
PTZ Camera	SD8A3833GA-HNV 8MP 33x Starlight+ IR Network PTZ Camera DC36V/2.23A Power Adapter PFA118 Mount Adapter PFB306W Wall Mount Bracket PFA126 Junction Box
Included:
DC36V/2.23A	Wall Mount
Power Adapter	Bracket
Optional:
PFA118	PFA151 PFA126
Mount Adapter	Corner Mount Junction Box Bracket PFA150
PFB301C	PFB710C Pole Mount
Ceiling Mount	Ceiling Mount Bracket
Bracket	Bracket
Plane Mount Bracket	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
