PTZ IP AI 8 MP zoom 40x IR
3.856,42 € IVA inclusa

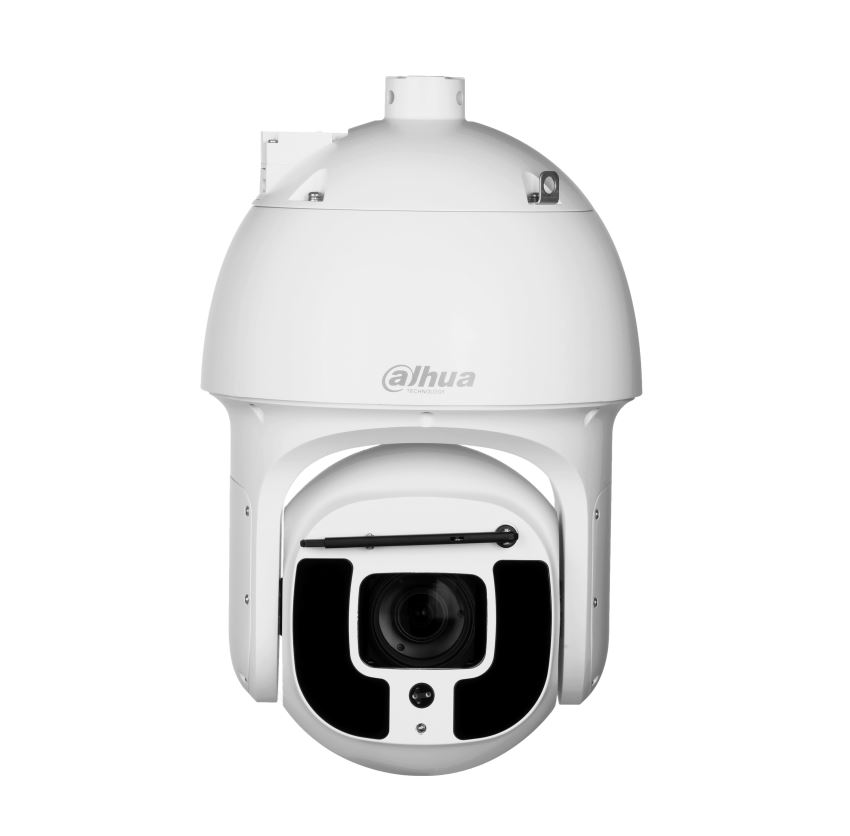

Speed dome IP AI WizMind Starlight 8" da interno/esterno IP67, sensore CMOS Starvis progressivo 1/1.8", risoluzione 8 MP a 25fps, rotazione PAN 360° endless / TILT -30°~90°, auto flip 180°, H.265+, ICR, zoom ottico 40x (5.6~233 mm ƒ1.4~4.8) / 16x digitale, luminosità 0.005 lux ƒ1.4 (0 con IR On), portata IR fino a 500 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 140 dB, privacy mask 24 aree, IVS, auto tracking, protezione perimetrale, metadati, micro SD card (256 GB), tergiottica smart, alimentazione 36 Vdc/Hi-PoE <48 W, alimentatore e staffa da parete PFB306W inclusi
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) x 2160 (V) |
| ROM | 8 GB |
| RAM | 2 GB |
| Electronic Shutter | 1/1 s–1/30,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.4 |
| Min. Illumination | B/W: 0.0005 lux@F1.4 0 lux@F1.4 (illuminator on) |
| Illumination Distance | 500 m (1640.42 ft) |
| Illuminator On/Off | Zoom Prio; Manual; Smart IR |
| Illuminator Number | 10 IR lights |
| Lens | |
| Focal Length | 5.6 mm–223 mm |
| Max. Aperture | F1.4–F4.5 |
| Field of View | H: 63.9°–2.0°; V: 37.3°–1.1 °; D: 71.2°–2.3 ° |
| Optical Zoom | 40x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Iris Control | Auto; manual Detect Observe Recognize Identify 4,400 m 1,740 m 880 m 440 m (14,435.70 ft) (5,708.66 ft) (2,887.14 ft) (1,443.57 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard |
| DORI Distance | system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –30° to +90°, auto flip 180° |
| Manual Control | Pan: 0.1°/s–240°/s |
| Speed | Tilt: 0.1°/s–100°/s |
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Yes |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour; Pattern; Scanning DH-SD |
| PTZ Protocol | Pelco-P/D (auto recognition) |
| Smart Event | |
| Event Trigger | disconnection, IP address conflict, illegal access, and storage anomaly |
| IVS | Object Abandoned/Missing |
| Intelligence | |
| Video Metadata | motor vehicle image capture and attributes extraction. Tripwire; intrusion; climbing fences; loitering detection; |
| IVS (Perimeter | abandoned/missing object; fast moving; parking detection; |
| Protection) | people gathering; vehicle/human alarm classification |
| Face Recognition | Yes |
| Auto Tracking | Yes |
| Video | |
| Video Compression | Stream 1) |
| Streaming Capability | 3 streams 4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); |
| Resolution | 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) Main stream: 4K/4M/1080p/1.3M/720p (1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR H264: 512 kbps–16384 kbps |
| Video Bit Rate | H265: 256 kbps–10240 kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; natural |
| White Balance | light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest | Yes |
| Defog | |
| Digital Zoom | 16x |
| Image Rotation | 0°; 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP |
| Network Protocol | v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP |
| Interoperability | ONVIF (Profile S&G&T); CGI |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 52 and earlier versions Safari |
| Management | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Mobile Client | iOS; Android |
| Port | |
| Analog Output | 1 BNC |
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | Hi-PoE Basic: 30 W |
| Power Consumption | Max.: 48 W (illuminator + PTZ + Heater + Fan) |
| Operating | |
| Operating Humidity | ≤95% (RH) IP67; TVS 6000 V lightning protection; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Casing | Metal |
| Product Dimensions | 415.6 mm × Φ26 2 mm (16.36" × Φ10.31") |
| Net Weight | 10 kg (22.05 lb) |
| Gross Weight | 12 kg (26.46 lb) |
| Ordering Information | |
| Type | Model Description 8 MP 40x Starlight WizMind Network DH-SD8A840-HNF-PA PTZ Camera, PAL 8 MP 40x Starlight WizMind Network DH-SD8A840N-HNF-PA |
| 8M | PTZ Camera, NTSC |
| WizMind | 8 MP 40x Starlight WizMind Network |
| PTZ Camera | SD8A840-HNF-PA PTZ Camera, PAL 8 MP 40x Starlight WizMind Network SD8A840N-HNF-PA PTZ Camera, NTSC DC36V/2.23A Power Adapter PFB306W Wall Mount Bracket PFA118 Mount Adapter PFB710C Ceiling Mount Bracket |
| Included: | |
| DC36V/2.23A | PFB306W |
| Power Adapter | Wall Mount Bracket |
| Optional: | |
| PFA118 | PFB710C PFA150 |
| Mount Adapter | Ceiling Mount Pole Mount Bracket Bracket PFA120 PFB301C |
| PFB301S-E | Junction Box Ceiling Mount |
| Plane Mount Bracket | Bracket |
