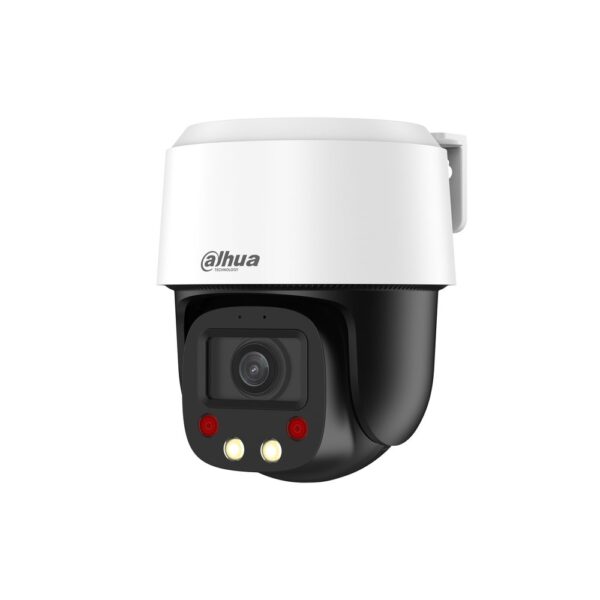

PTZ IP AI 4 MP zoom 5x IR/LED mic

Name: PTZ IP AI 4 MP zoom 5x IR/LED mic
Brand: Dahua
SKU: SD2C405NB-GNY-A-PV-S2
Price: 226.92 EUR
Availability: BackOrder

Dahua

COD: SD2C405NB-GNY-A-PV-S2 Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

226,92 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 453,84 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera PTZ IP AI WizSense Smart Dual Light a deterrenza attiva da interno/esterno IP66, sensore CMOS progressivo 1/2.8", risoluzione 4 MP a 25fps, H.265+, rotazione PAN 345° / TILT 0°~90°, ICR, ottica motorizzata 2.7~13.5 mm F1.6~3.0, zoom ottico 5x, luminosità 0.005 lux F1.6, portata IR/warm light fino a 30 m, 1 porta RJ-45 10/100 Mbps, 1 ingresso e 1 uscita audio con microfono e speaker integrati, allarme sonoro e luminoso, 2/3D NR, WDR 120 dB, IVS, human e vehicle detection, SMD 3.0, auto tracking lite, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc/PoE <12.95 W

Datasheet

Scheda Tecnica

Manuali

Camera
Image Sensor	1/2.8" CMOS
Pixel	4 MP
Max. Resolution	2560 (H) × 1440 (V)
ROM	128 MB
RAM	128 MB
Electronic Shutter Speed	1 s–1/30,000 s
Scanning System	Progressive 0.05 lux@F1.6 (Color, 30 IRE);
Min. Illumination	0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance	30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)
Illuminator On/Off Control	Manual; auto; off
Illuminator Number	2 (IR light); 2 (warm light)
Lens
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.6–F3.0
Field of View	H: 96.73°–24.76°; V: 51.98°–13.91°; D: 110.58°–29.74°
Optical Zoom	5×
Focus Control	Auto; Semi-auto; Manual
Close Focus Distance	0.6 m (1.97 ft)
Iris Control	Fixed Recognize
Lens
DORI Distance	a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Tilt: 0° to +90° Pan: 0.1°–74°/s;
Manual Control Speed	Tilt: 0.1°–36.4°/s Pan: 0.1°–62°/s;
Preset Speed	Tilt: 0.1°–36.3°/s
Preset	300
Power-off Memory	Yes
Idle Motion	Preset
Smart Event
IVS	Tripwire and intrusion
Human Detection	YES
Vehicle Detection	YES
Intelligence
Smart Tracking	Auto Tracking Lite
SMD	SMD 3.0
Active Deterrence
Light Warning	Flash duration: 5 s–30 s; Flash frequency: high, medium, low Offers 1 sound alarm and supports importing 10 custom sound alarms.
Sound Warning	Sound: 0–100 Play times can be set from 1 to 10.
Video
Video Compression	H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability	2 streams 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960);720p (1280 × 720); D1 (704 ×
Resolution	576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps)
Video Frame Rate	Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Bit Rate Control	CBR/VBR H264: 96 kbps–8,192 kbps
Video Bit Rate	H265: 38 kbps–8,192 kbps
Day/Night	Auto (ICR); Color/B/W
BLC	Yes
WDR	120 dB
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Image Stabilization	Electronic Image Stabilization (EIS)
Defog
Digital Zoom	5.5x
Image Rotation	180°
S/N Ratio	≥55 dB
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726
Built-in MIC	YES
Built-in Speaker	YES
Network
Network Port	RJ-45 (10/100 Base-T) HTTP;HTTPS;TCP/
Network Protocol	IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL; FTP;ARP;RTCP;RTP;IP Filter;RTMP
Interoperability	ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software	DMSS;DSS Pro
Mobile Client	iOS;Android
Port
Audio Input	1 channel (built-in mic)
Audio Output	1 channel (built-in speaker)
Alarm Linkage	Capture; preset; recording; audio; sending email Motion/Tampering detection; audio detection; network
Alarm Event	disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply	PoE (802.3af)
Power Consumption	Basic: 5 W; Max: 12.95 W (illuminator + PTZ)
Power Adapter	Optional
Environment
Operating Temperature	–30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity	≤95% IP66;TVS 2000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Product Dimensions	155.5 mm × Φ129.6 mm (6.12" × Φ5.10")
Net Weight	0.65 kg (1.43 lb)
Gross Weight	0.715 kg (1.58 lb)
Filter
Remarks	requirements on the precision, contact your local sales representative for assistance with selecting the model. 2025 Dahua. All rights reserved. Design and speciﬁcatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail.
Ordering Information
Type	Model Description 4MP 5x Smart Dual Light DH-SD2C405NB-GNY-A-PV-
Network PTZ Camera	WizSense Network PTZ S2
