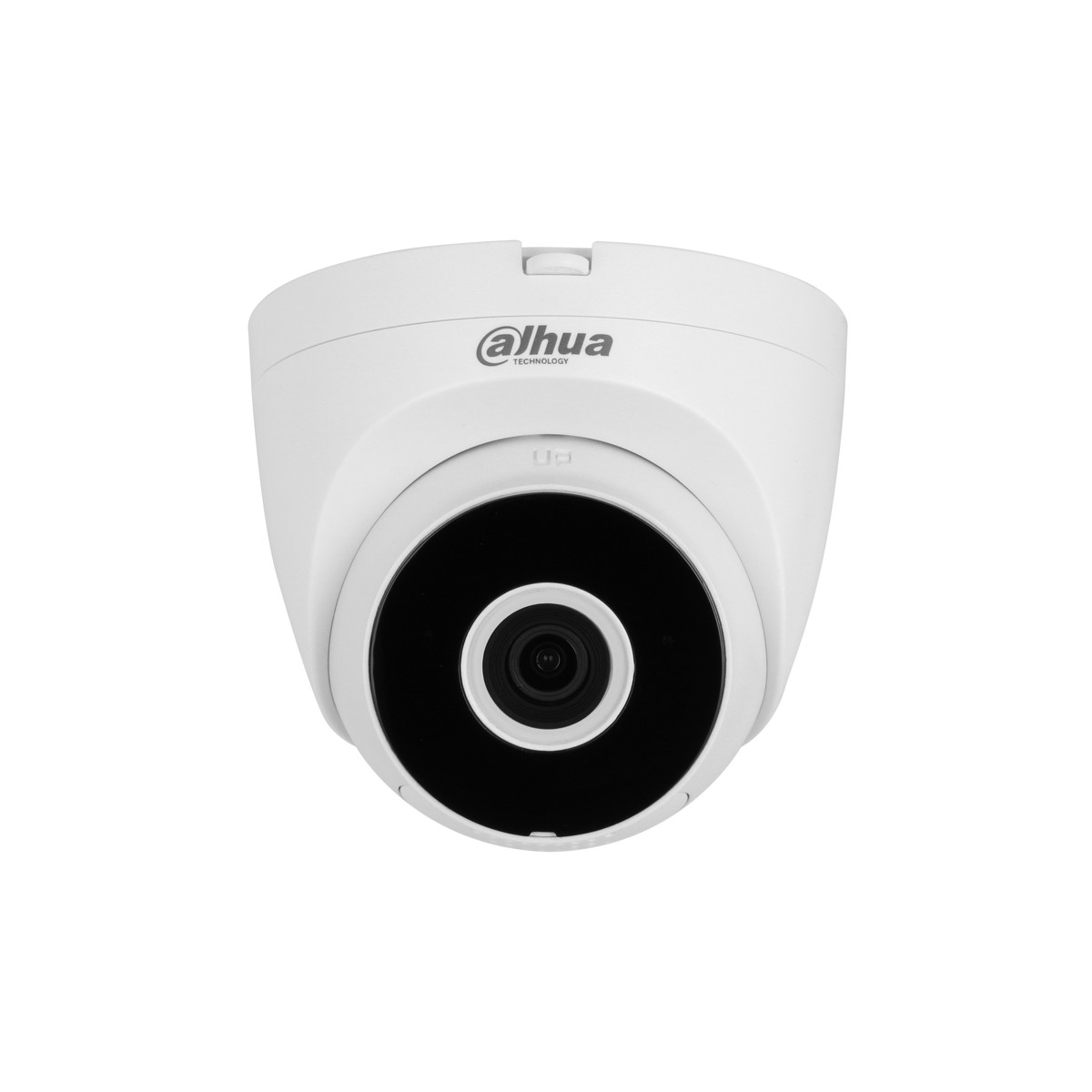

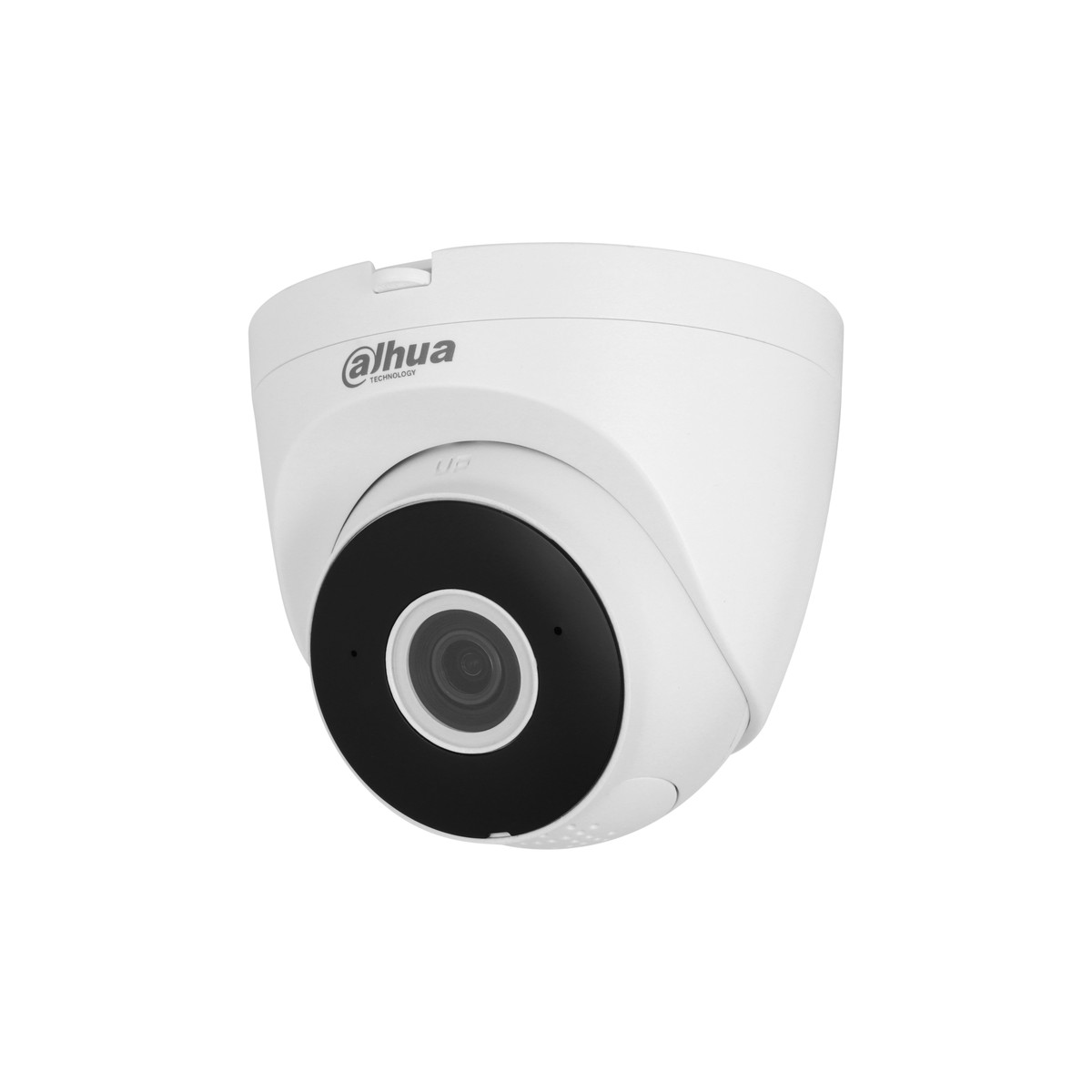

Telecamera eyeball IP/Wi-Fi da interno/esterno IP67, sensore CMOS progressivo 1/3″, risoluzione 4 MP (2560×1440) a 20fps o 3 MP (2304×1296) a 25/30fps, H.265+, ottica fissa 2.8 mm F2.0 (H 90°), luminosità 0.03 lux F2.0 (0 lux con IR acceso), portata IR fino a 30 m, Wi-Fi 2.4 GHz con doppia antenna integrata (fino a 120 m in campo aperto), microfono e speaker integrati, DWDR, 3D NR, BLC, motion detection, micro SD card (256 GB), alimentazione 12 Vdc
Datasheet
Disegni
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.03 Lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.003 Lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107° |
| Field of View | 3.6 mm: Horizontal: 76°; Vertical: 40°; Diagonal: 92° |
| Iris Control | Fixed 2.8 mm: 1.0 m (3.28 ft) |
| Close Focus Distance | 3.6 mm: 1.4 m (4.59 ft) |
| Dori | |
| Distance | 85.2 m 34.1 m 17.0 m 8.5 m 3.6 mm (279.53 ft) (111.88 ft) (55.77 ft) (27.89 ft) |
| Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+; Smart H.264+ Main stream: 2560 × 1440 (1–20 fps) Sub stream: 640 × 480@(1–25 fps) |
| Video Frame Rate | 640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); |
| Resolution | 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720) |
| Bit Rate Control | CBR/VBR H264: 24 kbps–4096 kbps |
| Video Bit Rate | H265: 9 kbps–4096 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Audio | |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a; G.711Mu |
| Alarm | |
| Alarm Event | detection; video tampering; audio detection; intensity change |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G Up to 120 m (The performance varies based on |
| Wireless Range | actual environment) |
| SDK and API | Yes Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and |
| Cyber Security | importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; |
| Network Protocol | NTP; Multicast; RTMP |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Power | |
| Power Supply | 12 VDC Basic: 2 W (12 VDC) |
| Power Consumption | Max. (H.265 + IR intensity): 6.1 W (12 VDC) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Cover: Plastic |
| Product Dimensions | Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02") |
| Net Weight | 352 g (0.77 lb) |
| Gross Weight | 530 g (1.17 lb) |
| Ordering Information | |
| Type | Model Description DH-IPC-HDW1430DTP-STW- 4 MP IR Fixed-focal WiFi Eyeball 0280B Network Camera, PAL, 2.8 mm DH-IPC-HDW1430DTN-STW- 4 MP IR Fixed-focal WiFi Eyeball 0280B Network Camera, NTSC, 2.8 mm |
| 4MP Camera | DH-IPC-HDW1430DTP-STW- 4 MP IR Fixed-focal WiFi Eyeball 0360B Network Camera, PAL, 3.6 mm DH-IPC-HDW1430DTN-STW- 4 MP IR Fixed-focal WiFi Eyeball 0360B Network Camera, NTSC, 3.6 mm ADS-12AM-12 12012EPG 12V DC/1A Power Adapter PFA13G Junction Box PFB205W Wall Mount |
| Optional: | |
| PFA13G | PFB205W PFA152-E Wall Mount Pole Mount |
| Junction Box | TF-P100 PFA109+PFB220C |
| PFM900-E | MicroSD Ceiling Mount |
| Integrated | Memory Card |
| Mount Tester | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
