Eyeball IP AI TiOC Duo 2x4 MP 2.8 mm IR/LED mic - immagine 1

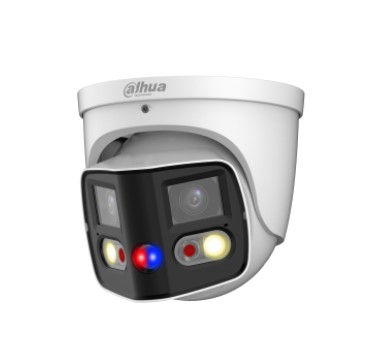

Eyeball IP AI TiOC Duo 2×4 MP 2.8 mm IR/LED mic

Name: Eyeball IP AI TiOC Duo 2x4 MP 2.8 mm IR/LED mic
Brand: Dahua
SKU: IPC-PDW3849-A180-AS-PV
Price: 419.68 EUR
Availability: BackOrder

Dahua

COD: IPC-PDW3849-A180-AS-PV Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

419,68 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 839,36 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera eyeball IP AI WizSense TiOC Duo (180°) Full-color con Smart Dual Light e deterrenza attiva da interno/esterno IP67, doppio sensore CMOS progressivo 1/2.7", risoluzione 8 MP a 20fps, AI coding, H.265+, ICR, ottica fissa M12 2.8 mm ƒ1.6, luminosità 0.005 lux ƒ1.6, portata IR/LED fino a 20 m, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono e speaker integrati, sirena e luci rosse e blu, 1 porta di rete 10/100 Mbps, IVS (protezione perimetrale), SMD 4.0, Quick Pick, privacy mask 4 aree, 3D NR, WDR 120 dB, micro SD card (256 GB), alimentazione 12 Vdc/PoE <10.3 W

Camera
Image Sensor	Dual 1/2.7" CMOS
Max. Resolution	4096 (H) × 1860 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F1.4 (Color, 30 IRE)
Min. Illumination	0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB Up to 25 m (82.02 ft) (IR LED)
Illumination Distance	Up to 20 m (65.62 ft) (Warm light)
Illuminator On/Off Control	Auto; Manual
Illuminator Number	2 (IR LED); 2 (Warm light) Pan: 0°–360°
Angle Adjustment	Tilt: 0°–77° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm
Field of View	Horizontal: 180°; Vertical: 86°
Max. Aperture	F1.4
Iris Control	Fixed
Close Focus Distance	0.8 m (2.62 ft)
Dori
Distance	(EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.
Intelligence
IVS (Perimeter Protection)	classification and accurate detection of vehicle and human), stay detection, loitering detection
SMD	SMD 4.0 With AI NVR, quickly pick up the human/vehicle targets
Quick Pick	that users are interested in from SMD events. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos.
EPTZ	Enlarge and track the targets of intelligent alarms
Video
Video Compression	by the sub stream) AI H.265; AI H.264
AI Coding	*Includes smart codec technology, Smart H.265+ and Smart H.264+ Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams 8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368);
Resolution	1200 × 530; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480)
Bit Rate Control	CBR/VBR H.264: 6 kbps –16384 kbps
Video Bit Rate	H.265: 6 kbps –16384 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Privacy Masking	4 areas
Audio
Built-in MIC	Yes, built-in dual Mic Yes, built-in speaker Max power consumption: 2 W; max sound level at 10
Built-in speaker	cm: 110 dB * Test results from laboratory
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; loitering detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Security	syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
Network Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI
User/Host	20 (Total bandwidth: 64 M)
Storage
Browser	Chrome Firefox
Management Software	Smart PSS Lite; DSS; DMSS
Mobile Client	iOS; Android
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: wet contact, 5 mA 3 V–5 VDC
Alarm Output	1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply	12 VDC (±30%); PoE (802.3af) Basic: 3.95 W (12 VDC); 4.95 W (PoE) Max. (H.265+WDR+ warm light+siren and light active
Power Consumption	deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Structure
Casing	Metal
Product Dimensions	Φ122 mm × 135.2 mm (Φ4.80" × 5.32" )
Net Weight	990 g (2.18 lb)
Gross Weight	1150 g (2.54 lb)
Ordering Information
Type	Model Description 2x4MP TiOC Duo Splicing Fixed- DH-IPC-PDW3849-A180- focal Eyeball WizSense Network AS-PV
Camera
8MP Camera	2x4MP TiOC Duo Splicing Fixed- IPC-PDW3849-A180-AS-PV focal Eyeball WizSense Network
Accessories
(Optional)	PFA152-E Pole Mount Bracket PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card PFM321D 12 VDC 1A Power Adapter
Optional:
PFA137	Ceiling Mount Bracket Wall Mount Bracket
PFA109	PFA152-E PFM900-E
Mount Adapter	Pole Mount Bracket Integrated Mount Tester
TF-P100	PFM321D
MicroSD	12V DC 1A
Memory Card	Power Adapter
