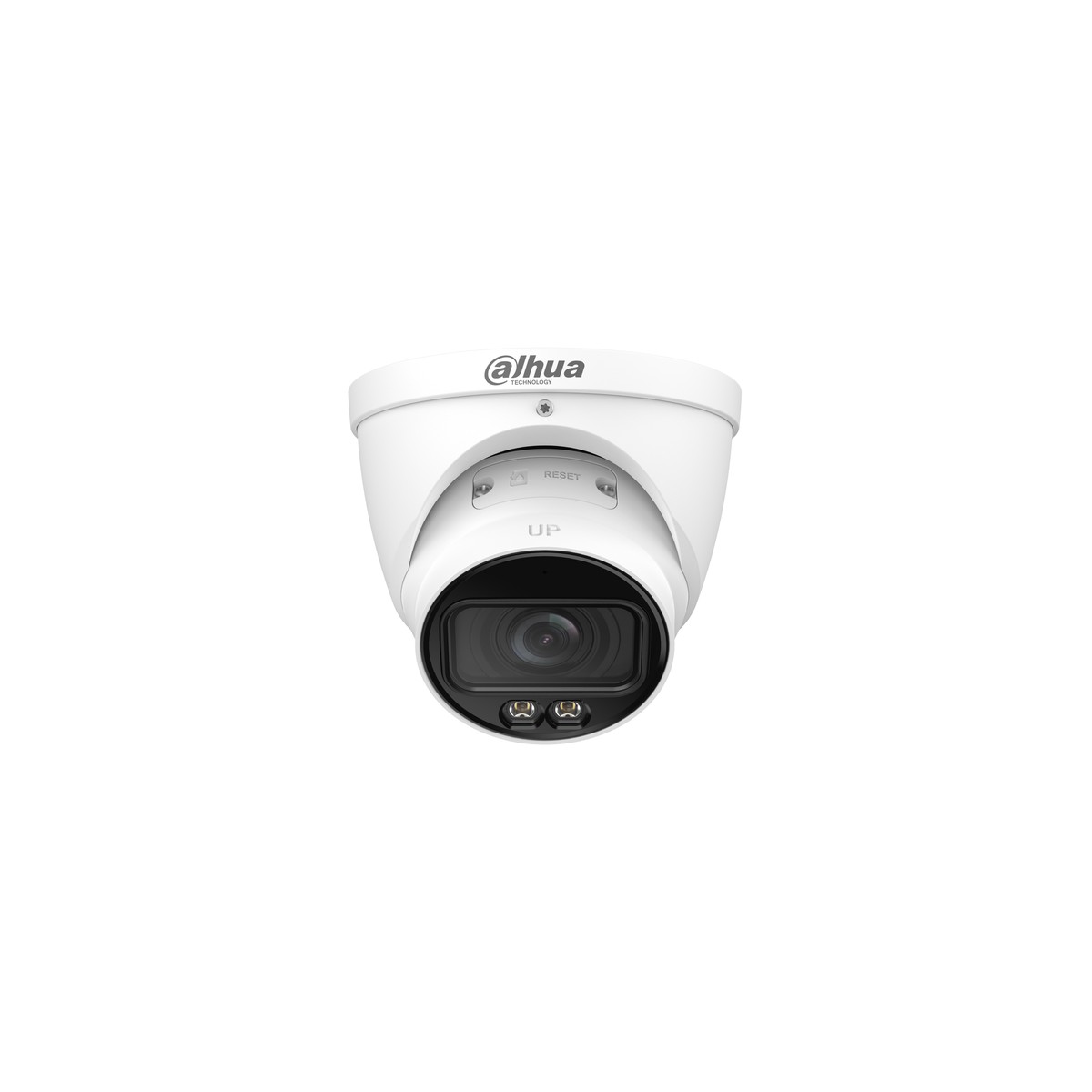

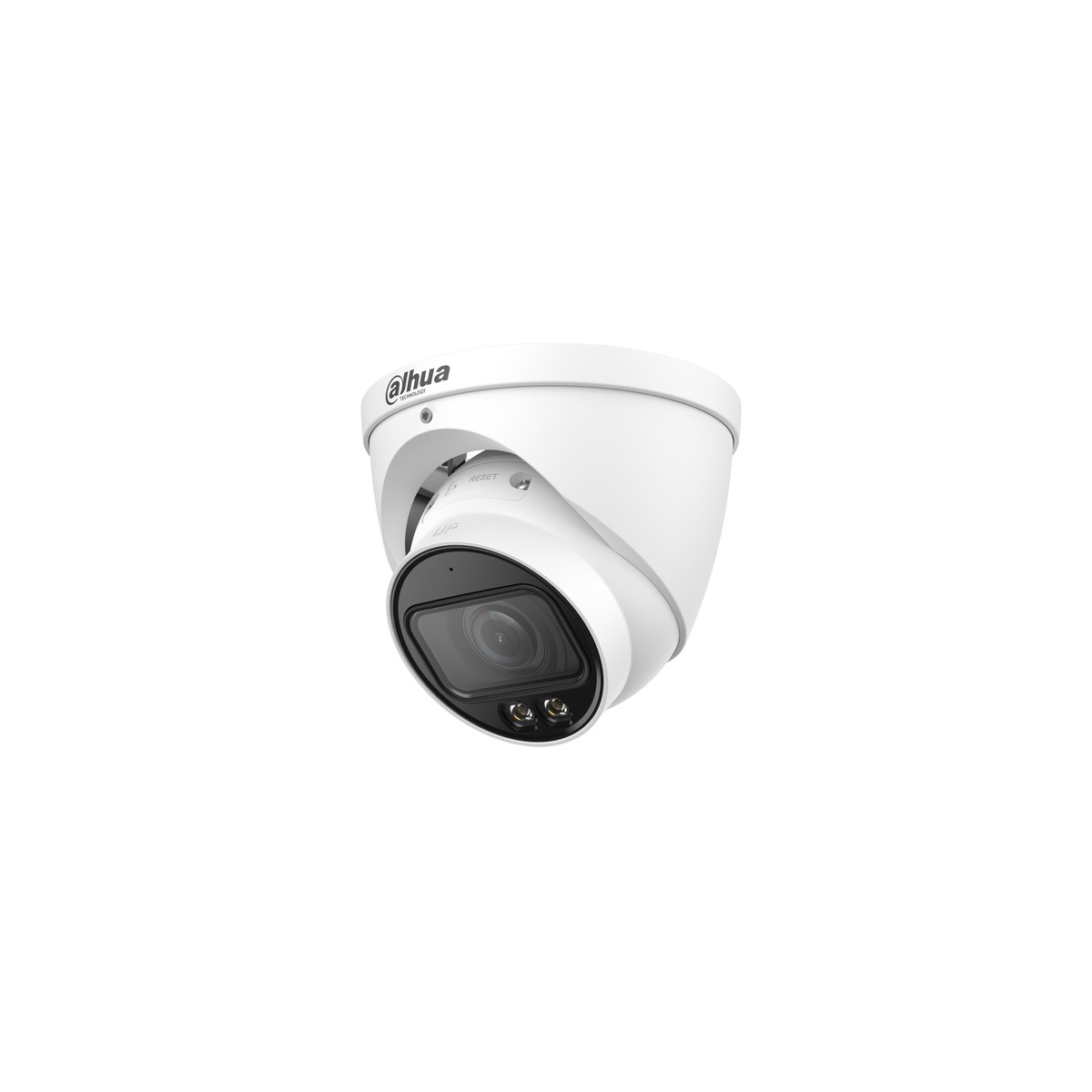

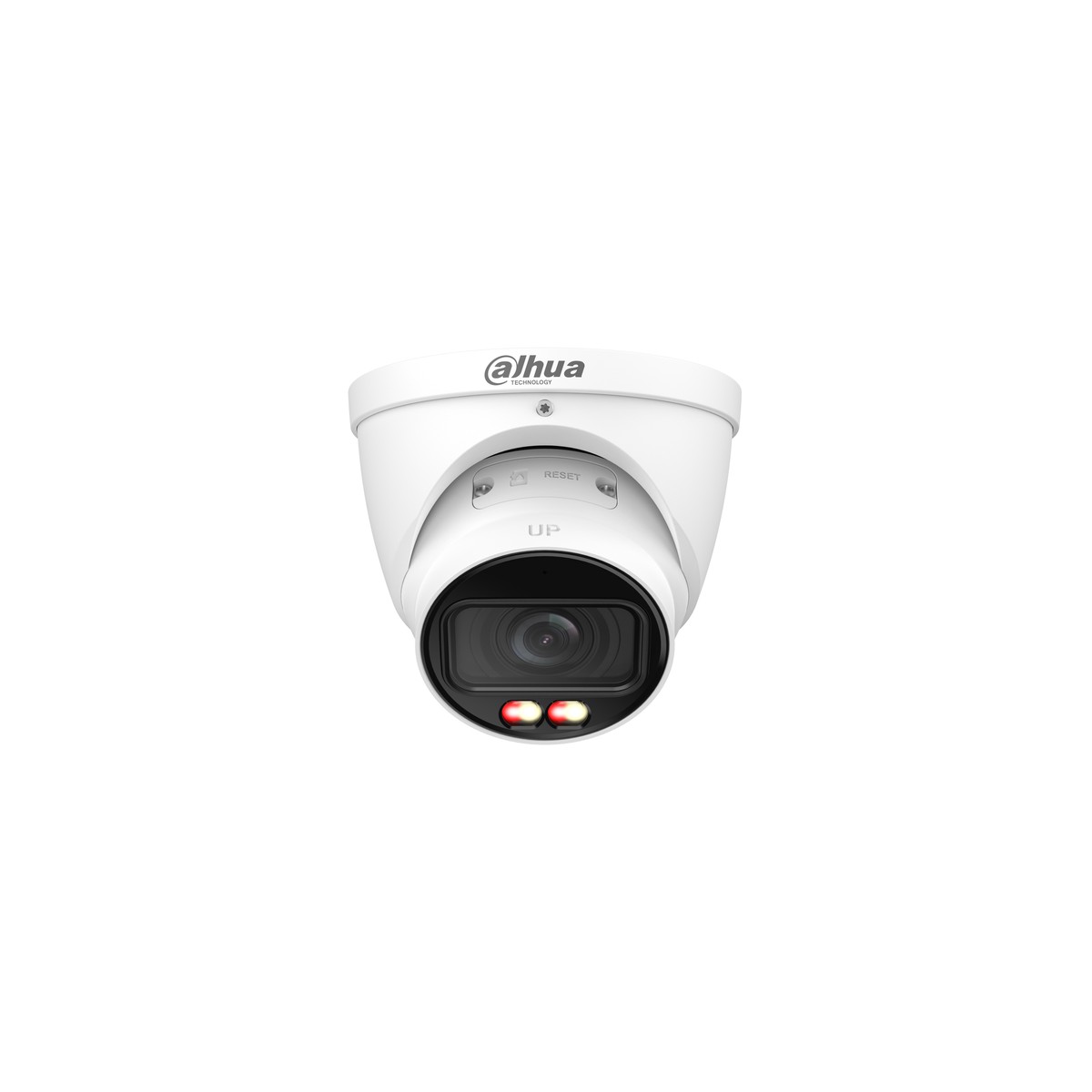

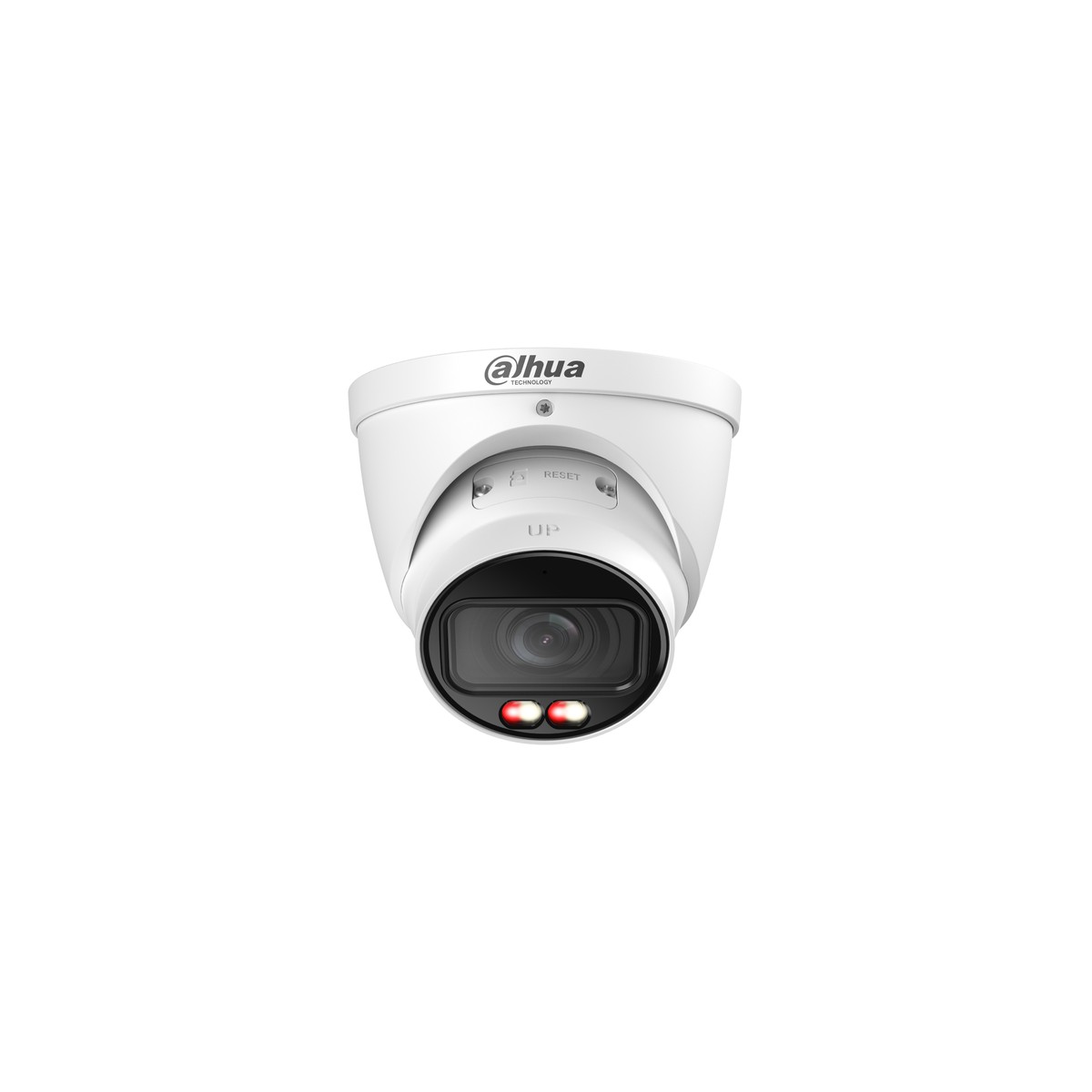

Telecamera eyeball IP AI WizSense Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/2.7″, risoluzione 8 MP (3840×2160) a 20fps (2688×1520 a 25/30fps), AI coding, H.265+, ottica motorizzata varifocale 2.7~13.5 mm F1.5 (H 114°~32°), luminosità 0.008 lux F1.5 (0 lux con illuminatore acceso), illuminatore multi-core IR e luce calda fino a 40 m, microfono integrato, IVS (protezione perimetrale con classificazione persone/veicoli), SMD Plus, WDR, 3D NR, HLC, BLC, micro SD card (512 GB), alimentazione 12 Vdc/PoE
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.008 lux@F1.5 (Color, 30 IRE) |
| Min. Illumination | 0.0008 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 40 m (131.23 ft) (IR LED) |
| Illumination Distance | Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) Pan: 0° to 360° |
| Angle Adjustment | Tilt: 0° to 78° Rotation: 0° to 360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 114°–32°; V: 58°–17°; D: 138°–36° |
| Iris Control | Fixed |
| Close Focus Distance | 0.1 m (0.33 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Video | |
| Video Compression | by the sub stream) AI H.265; AI H.264 (Super AI Coding) |
| AI Coding | *Includes smart codec technology, Smart H.265+ and Smart H.264+ Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Video Frame Rate | Third stream: 352 × 288@1 fps/352 × 240@1 fps *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams 8M (3840 × 2160); 6M (3072 × 2048/3072 × 1728); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × |
| Resolution | 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR H.264: 32 kbps–8192 kbps; |
| Video Bit Rate | H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes 0°/90°/180°/270° (supports 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; |
| Network Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile T & Profile G); CGI |
| User/Host | 6 (Total bandwidth: 48 M) |
| Storage | |
| Browser | IE; Chrome; Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS; DoLynk Care Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;SSL/TLS1.2;AES 256 |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 2 W (12 VDC); 3 W (PoE); |
| Power Consumption | Max.: 7.8 W (12 VDC); 9.4 W (PoE) (H.265 + intelligence + WDR + warm light intensity + motor) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 Basic Protection *The products are designed for general use and are |
| Anti-corrosion Level | applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| Net Weight | 0.69 kg (1.52 lb) |
| Gross Weight | 0.86 kg (1.90 lb) |
| Ordering Information | |
| Type | Model Description 8MP Smart Dual Light |
| IP CAMERA | DH-IPC-HDW2849T-ZS-IL Vari-focal Eyeball WizSense Network Camera DH-PFA117 Ceiling Mount Bracket DH-PFA106 Mount Adapter DH-PFB220C Ceiling Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFA152-E Pole Mount Bracket DH-PFB2203W Wall Mount Bracket |
| Accessories (Optional) | DH-PFA137 Junction Box DH-PFM320-010EN DC12V 1A Power Adapter DH-PFM325D-1210EN DC12V 1A Power Adapter DH-PFM325D-1215EN DC12V 1.5A Power Adapter DH-PFM320-020EN DC12V 2A Power Adapter DH-PFM320D-EN DC12V 2A Power Adapter PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card |
| Accessories | |
| DH-PFA117 | DH-PFA106 DH-PFB220C |
| Ceiling Mount Bracket | Mount Adapter Ceiling Mount Bracket |
| DH-PFA151 | DH-PFB305W DH-PFA150 |
| Corner Mount Bracket | Wall Mount Bracket Pole Mount Bracket |
| DH-PFA152-E | DH-PFB2203W DH-PFA137 |
| Pole Mount Bracket | Wall Mount Bracket Junction Box |
| Optional: | DH-PFM325D-1215EN |
| DH-PFM320-010EN | DH-PFM325D-1210EN DC12V 1.5A Power |
| DC12V 1A Power Adapter | DC12V 1A Power Adapter Adapter |
| DH-PFM320-020EN | DH-PFM320D-EN PFM900-E |
| DC12V 2A Power Adapter | DC12V 2A Power Adapter Integrated Mount Tester |
