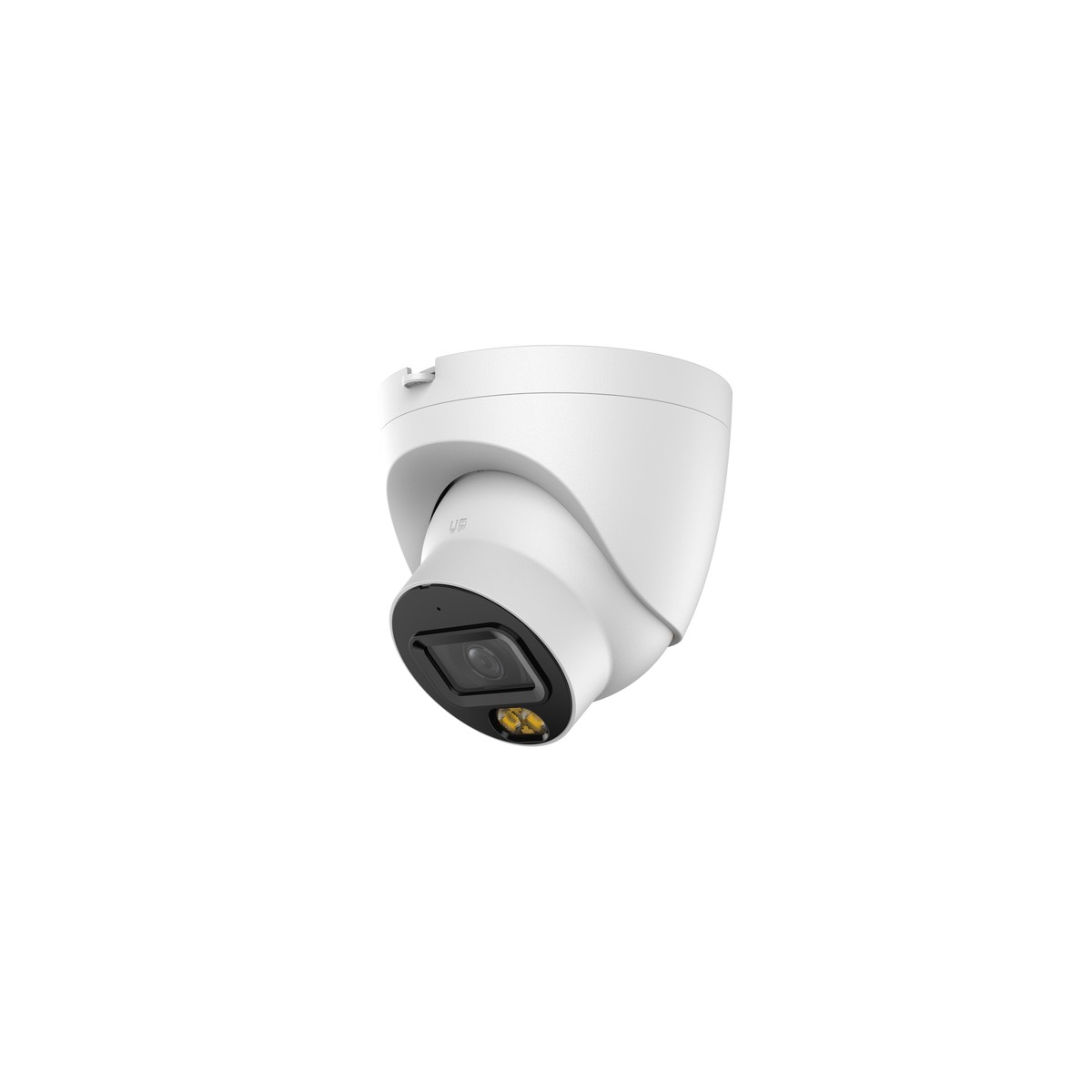

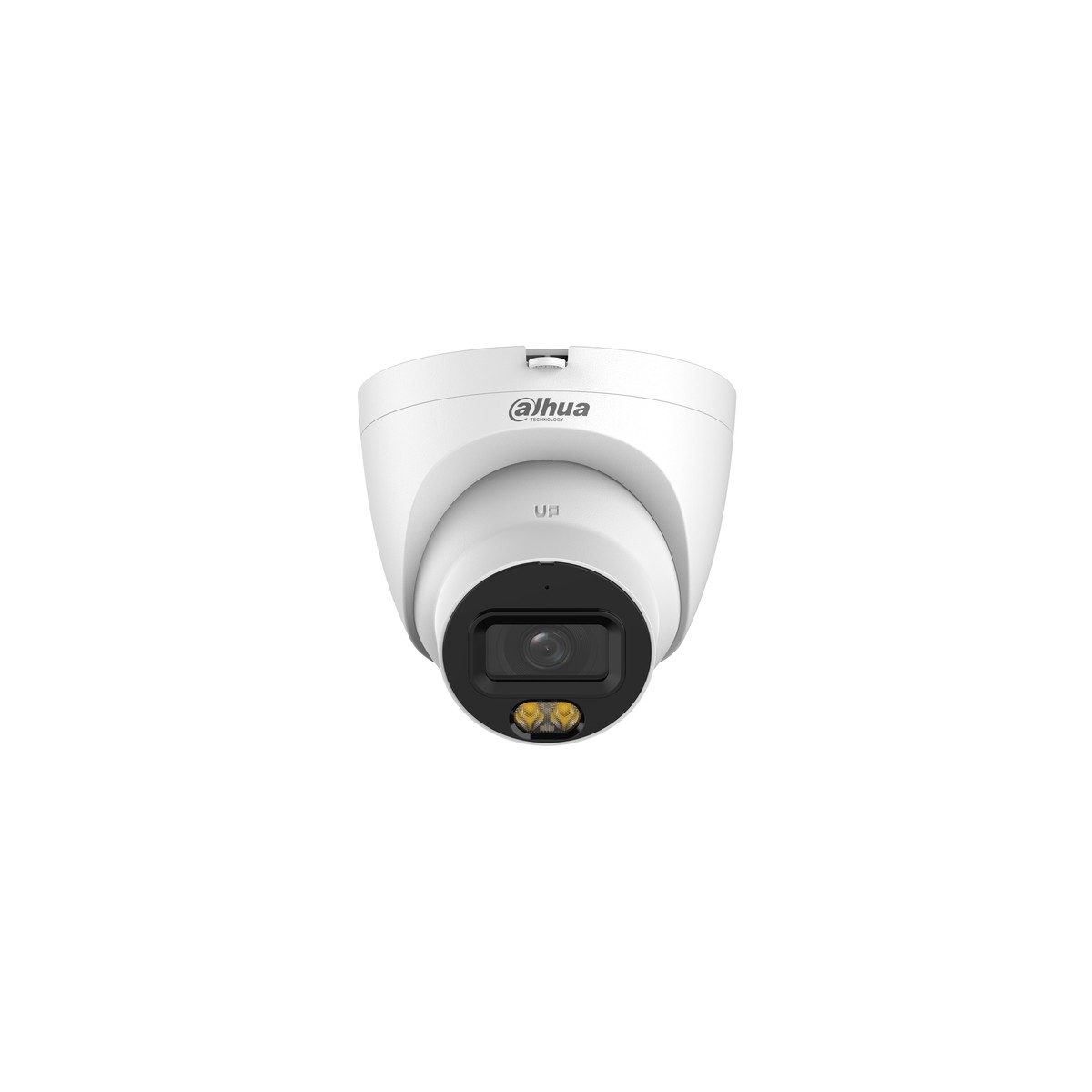

Telecamera eyeball IP AI WizSense Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/2.5″, risoluzione 12 MP (4480×2512) a 15fps o 5 MP (3072×1728) a 25/30fps, H.265+, ottica fissa 2.8 mm o 3.6 mm F1.6, luminosità 0.008 lux F1.6 (0 lux con illuminatore acceso), illuminatore multi-core IR e luce calda fino a 30 m, microfono integrato, IVS (protezione perimetrale con classificazione persone/veicoli), SMD Plus, ROI, DWDR, 3D NR, HLC, BLC, micro SD card (256 GB), alimentazione 12 Vdc/PoE
Datasheet
Disegni
| Camera | |
| Image Sensor | 1/2.5" CMOS |
| Max. Resolution | 4480 (H) × 2512 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.008 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 30 m (98.43 ft) (Warm light) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 112°; V: 58°; D: 136° |
| Field of View | 3.6 mm: H: 95°; V: 53°; D: 109° |
| Iris Control | Fixed 2.8 mm: 3.5 m (11.48 ft) |
| Close Focus Distance | 3.6 mm: 4 m (13.12 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) |
| SMD | SMD Plus Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ Main stream: 4480 × 2512@(1–15 fps)/3072 × 1728@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 |
| Video Frame Rate | fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 2 streams 12M (4480 × 2512); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × |
| Resolution | 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR H.264: 32 kbps–8192 kbps; |
| Video Bit Rate | H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | |
| Browser | Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) Basic: 3.1 W (12 VDC); 3.5 W (PoE); |
| Power Consumption | Max.: 6.2 W (12 VDC); 7.8 W (PoE) (H.265 + intelligence on + illuminator intensity) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 Basic Protection *The products are designed for general use and are |
| Anti-corrosion Level | applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Cover: Plastic |
| Product Dimensions | 109.5 mm × Φ109.9 mm (4.31" × Φ4.33") |
| Net Weight | 0.38 kg (0.84 lb) |
| Gross Weight | 0.52 kg (1.15 lb) |
| Ordering Information | |
| Type | Model Description 12MP Smart Dual |
| IP CAMERA | DH-IPC-HDW21249T-S-IL Light Fixed-focal Eyeball WizSense Network Camera |
| Accessories (Optional) | DH-PFB220C Ceiling Mount Bracket |
| Type | Model Description DH-PFA109 Mount Adapter DH-PFB305W Wall Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFB2203W Wall Mount Bracket DH-PFA152-E Pole Mount Bracket |
| Accessories (Optional) | DH-PFA13G Junction Box DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-W100-256GB MicroSD Card DHI-TF-P100/256GB MicroSD Card |
| Accessories | |
| Optional: | DH-PFA13G DH-PFA150 |
| Mount Adapter | Junction Box Pole Mount Bracket |
| DH-PFA151 | DH-PFA152-E DH-PFB2203W |
| Corner Mount Bracket | Pole Mount Bracket Wall Mount Bracket |
| DH-PFB220C | DH-PFB305W DH-PFM320D-EN |
| Ceiling Mount Bracket | Wall Mount Bracket DC12V2A power adapter |
| DH-PFM321-EN | DHI-TF-P100/256GB DHI-TF-W100-256GB |
| DC12V1A power adapter | MicroSD Card MicroSD Card |
