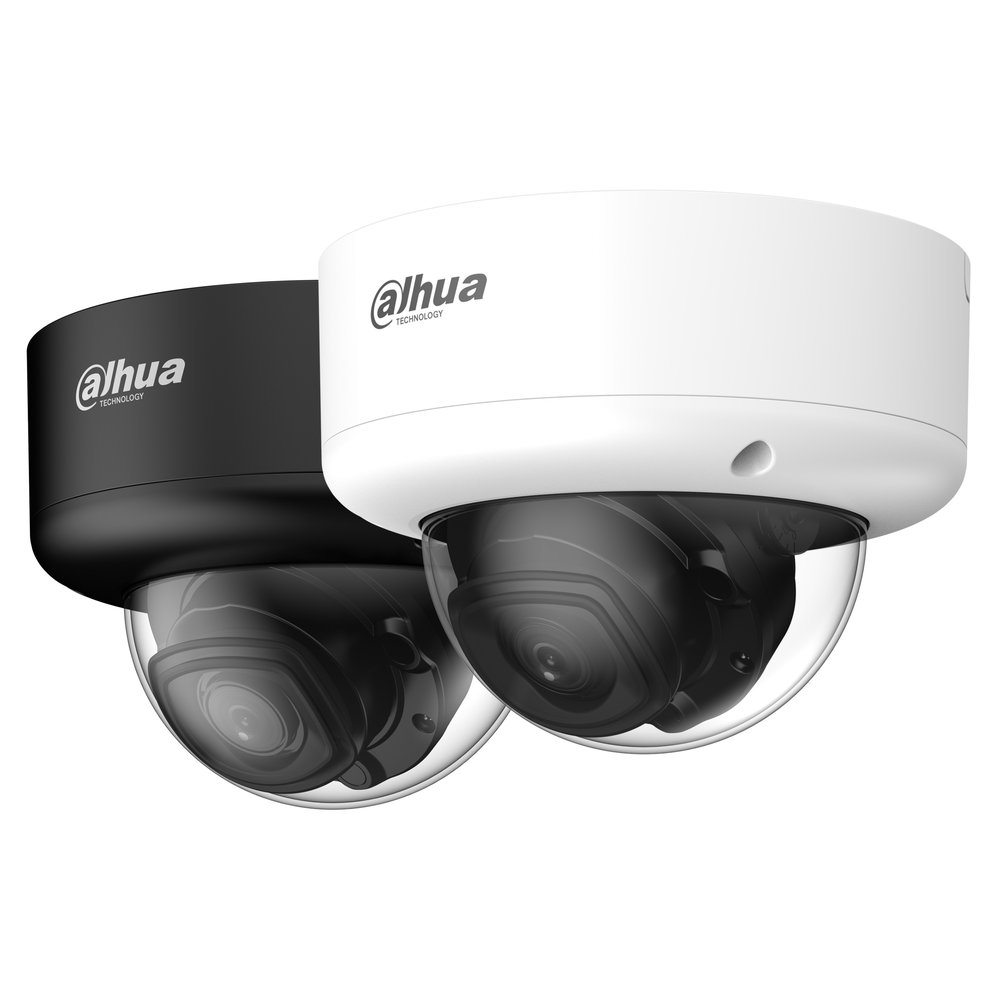

Dome IP AI 12 MP 2.7~12 mm IR mic
1.196,21 € IVA inclusa
Telecamera dome IP AI WizMind X Deeplight da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.7", risoluzione 12 MP a 25fps, H.265+, ICR, ottica motorizzata f14 2.7~12 mm ƒ1.6, luminosità 0.0009 lux ƒ1.6 (0 con IR On), portata IR fino a 40 m, 1 porta LAN 10/100/1000 Mbps, 1 uscita CVBS, 3 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con doppio microfono integrato, 1 porta RS485, privacy mask 8 aree, 3D NR, IVS (oggetto abbandonato/mancante), IVS (protezione perimetrale), AcuPick (con NVR AcuPick), face detection/recognition, PPE detection, people counting, ANPR, Parking Space Management, metadati video, micro SD card (512 GB), alimentazione 12 Vdc/24 Vac/ePoE <25.2 W
| Camera | |
| Image Sensor | 1/1.7" CMOS |
| Max. Resolution | 4000 (H) × 3000 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.0009 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.0005 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 40 m (131.23 ft) (IR) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 3 (IR LED) Pan: 0°–355° |
| Angle Adjustment | Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 106°–45°; V: 77°–34°; D: 140°–56° |
| Iris Control | Auto |
| Iris Control Type | P-Iris |
| Close Focus Distance | 1.8 m (5.91 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| EPTZ | Yes Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of |
| IVS (Perimeter Protection) | vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes |
| Face Detection | and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization |
| Face Recognition | time setting. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. Triggers alarms when the detected object matches or does not match all of the configured attributes (workwear, safety helmet, cap, face mask, apron, gloves, |
| PPE Detection | shoe covers, boots, safety vest, and seatbelt). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting |
| People Counting | report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management |
| Heat Map | Yes ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. |
| ANPR | Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple |
| Parking Space | areas; display the total number of parking spaces and |
| Management | parking spaces that are available; trigger alarms based on a predefined number of vehicles. |
| Video Metadata | non-motor vehicles based on the direction, and exports reports. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, |
| Acupick | animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ Main stream: 4000 × 3000@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
| Video Frame Rate | Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 5 streams 12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 |
| Resolution | × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–16384 kbps |
| Video Bit Rate | H.265: 32 kbps–12288 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Defog | |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Dual MICs |
| Built-in Speaker | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/ Profile M); CGI |
| User/Host | 20 (Total bandwidth: 340 M) |
| Storage | |
| Browser | Chrome: Chrome 88.0.4324.190 and later Firefox: Firefox 47.0.2 and later |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; |
| Security | Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 3 channels in: wet contact, 5mA 3V–5V DC 2 channels out: dry contact, 1,000mA 30V DC/500mA |
| Alarm Output | 50V AC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE Basic: 6.6 W (12 VDC); 9.3 W (24 VAC); 9.8 W (PoE) Max. (ICR switch + IR intensity+ zoom): 18.7 W (12 VDC); 24.8 |
| Power Consumption | W (24 VAC); 25.2 W (PoE) Heating: 3 W (12 VDC); 4.6 W (24 VAC); 5.47 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Storage Humidity | 10–95% |
| Protection | IP67; IK10; Anti-Corrosion Protection (optional) Moderate Protection(Only supported by -ATC model) *The products feature high-grade anti-corrosion protection, making them well-suited for environments |
| Anti-corrosion Level | with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure . |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | 118.0 mm × Φ159.0 mm (4.65" × Φ6.26") |
| Net Weight | 1.16 kg (2.56 lb) |
| Gross Weight | 1.36 kg (3.00 lb) |
| Ordering Information | |
| Type | Model Description 12MP IR Dome WizMind Network DH-IPC-HDBW71242E1-Z-X |
| Accessories | |
| (Optional) | PFA138 Junction Box PFM320D 12 VDC 2 A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFB211W | PFA156 PFA101 |
| Wall Mount Bracket | Pole Mount Bracket Mount Adapter |
| PFB300C | PFB5201C PFA138 |
| Ceiling Mount Bracket | In-ceiling Mount Bracket Junction Box |
| PFM320D | PFM900-E TF-P100 |
| 12 VDC 2A Power | Integrated Mount Tester MicroSD Memory Card |
