Bullet IP WizColor 4 MP 3.6 mm LED

Name: Bullet IP WizColor 4 MP 3.6 mm LED
Brand: Dahua
SKU: IPC-HFW2449TL-S-PRO
Price: 170.19 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW2449TL-S-PRO Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

170,19 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 340,38 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

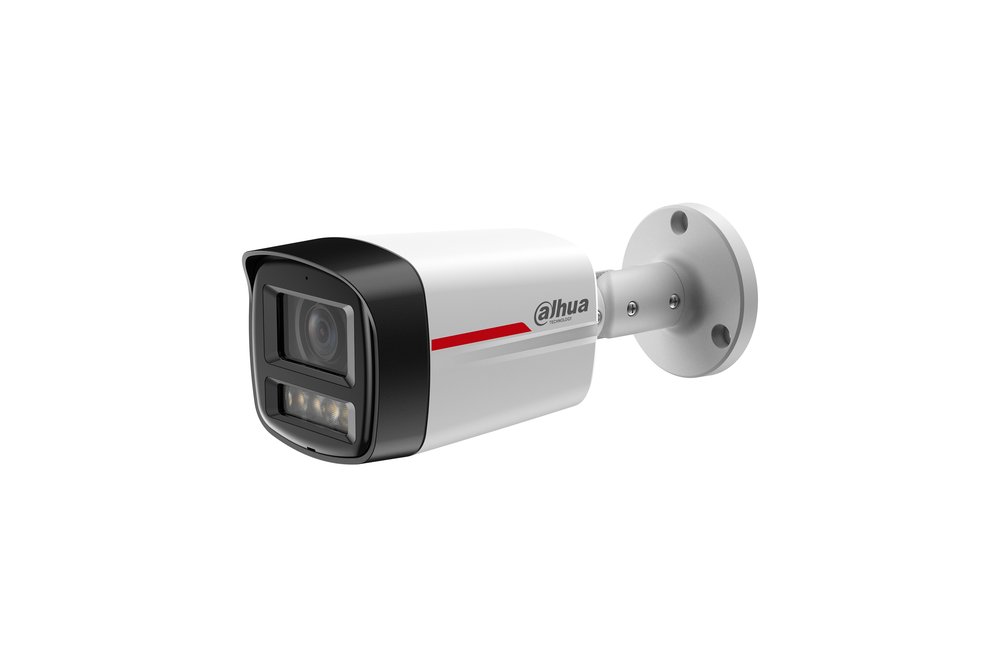

Telecamera bullet IP AI WizSense WizColor da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 4 MP a 20fps, H.265+, ottica fissa M16 3.6 mm F1.0, luminosità 0.0005 lux ƒ1.4, portata warm light fino a 50 m, microfono integrato, 1 porta RJ-45 10/100 Mbps, IVS (protezione perimetrale), SMD Plus, privacy mask 4 aree, 3D NR, WDR 120 dB, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc/PoE <7.2 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	128 MB
RAM	256 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0001 lux@F1.0
S/N Ratio	>56 dB
Illumination Distance	Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	4 (Warm light) Pan: 0°–360°
Angle Adjustment	Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M16
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.0 2.8 mm: H: 105°; V: 57°; D: 125°
Field of View	3.6 mm: H: 89°; V: 48°; D: 105° 6 mm: H: 55°; V: 29°; D: 64°
Iris Control	Fixed 2.8 mm: 2.0 m (6.56 ft)
Close Focus Distance	3.6 mm: 3.0 m (9.84 ft) 6 mm: 6.0 m (19.69 ft)
Dori
Distance	( 382.55 ft) ( 152.89 ft) ( 76.44 ft) ( 38.39 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)	classification and accurate detection of vehicle and human);
SMD	SMD Plus
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+ Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30
Video Frame Rate	fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	2 streams 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×
Resolution	720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR H.264: 32 kbps–6144 kbps;
Video Bit Rate	H.265: 12 kbps–6144 kbps
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Defog
Image Rotation	resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
LDC	Yes
Audio
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event	detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host	20 (Total bandwidth: 48 M)
Storage
Browser	IE; Chrome; Firefox
Management Software	Smart PSS Lite; DSS; DMSS
Mobile Client	iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509
Security	certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Power
Power Supply	12 VDC (±30%); PoE (802.3af) Basic: 1.4 W (12 VDC); 1.7 W (PoE);
Power Consumption	Max.: 5.4 W (12 VDC); 6.3 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67 Basic Protection *The products are designed for general use and are
Anti-corrosion Level	applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material	Metal 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00")
Product Dimensions	(L × W × H)
Net Weight	0.56 kg (1.23 lb)
Gross Weight	0.70 kg (1.54 lb)
Ordering Information
Type	Model Description 4MP WizColor Fixed-focal
IP CAMERA	DH-IPC-HFW2449TL-S-PRO Bullet WizSense Network
Camera
Accessories (Optional)	DH-PFA130-E Water-proof Junction Box
Type	Model Description G3416GW G3/4" Water Joint DH-PFA151 Corner Mount Bracket DH-PFA157 Pole Mount Bracket DH-PFA134 Junction Box
Accessories (Optional)	DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-W100-256GB MicroSD Card DHI-TF-P100/256GB MicroSD Card
Accessories
Optional:	DH-PFA134 DH-PFA151
Water-proof Junction Box	Junction Box Corner Mount Bracket
DH-PFA157	DH-PFM320D-EN DH-PFM321-EN
Pole Mount Bracket	DC12V2A power adapter DC12V1A power adapter
DHI-TF-P100/256GB	DHI-TF-W100-256GB G3416GW
MicroSD Card	MicroSD Card G3/4" Water Joint
