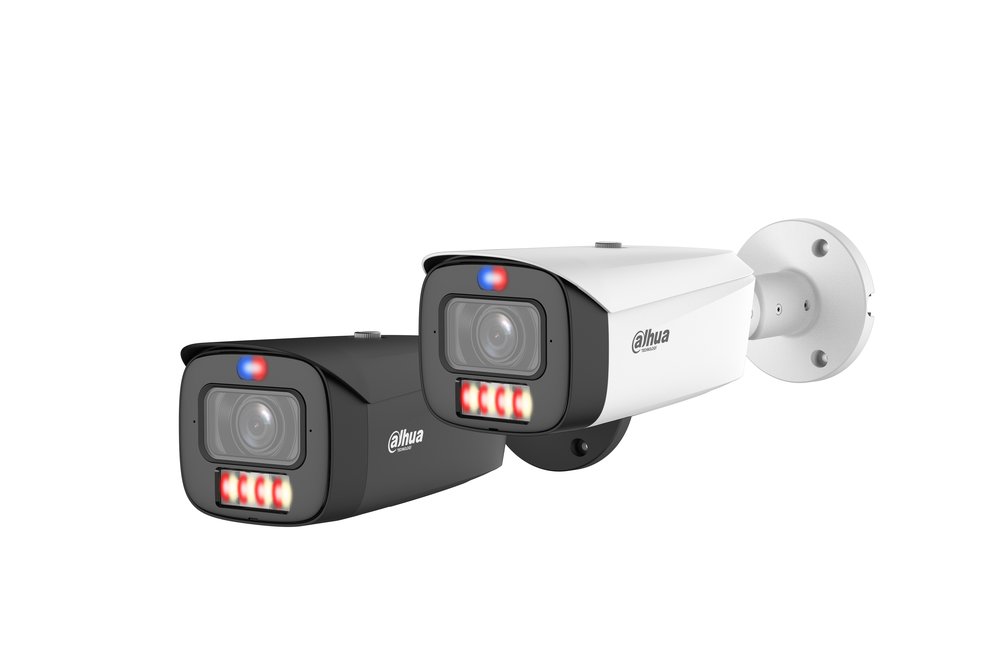

Telecamera bullet IP AI WizSense TiOC PRO WizColor con Smart Dual Light e deterrenza attiva da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 25fps, AI coding, H.265+, ICR, ottica motorizzata φ16 2.7~12 mm F1.2, luminosità 0.001 lux F1.2, portata IR/warm light fino a 60 m, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, sirena e luci rosse e blu, 1 porta di rete 10/100 Mbps, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), AI SSA, privacy mask 8 aree, 3D NR, WDR 120 dB, slot micro SD card (fino a 512 GB), alimentazione 12 Vdc/PoE+ <18.3 W
| Camera | |
| Image Sensor | 1/1.8" CMOS 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive Auto/Manual 1/3 s–1/100,000 s |
| Electronic Shutter Speed | 0.0006 lux@F1.2(Color,30IRE) 0.0003 lux@F1.2(B/W,30IRE) |
| Min. Illumination | 0 lux (Illuminator on) > 56 dB |
| S/N Ratio | Up to 60 m (196.85 ft) (IR) |
| Illumination Distance | Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) Pan: 0°–360° Tilt: 0°–90° |
| Angle Adjustment | Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ16 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.2 H: 112°–48° V: 58°–27° |
| Field of View | D: 137°–55° |
| Iris Control | Fixed/Auto iris W: 1.75 m (5.74 ft) |
| Close Focus Distance | T: 5.21 m (17.09 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | human), stay detection, loitering detection. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies |
| Face Detection(Full Image) | (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| SMD | SMD 4.0 Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event |
| Smart Search | videos |
| AcuPick | motor vehicles, and search through live and recorded videos to quickly locate targets. Adopt deep learning algorithms to adjust the parameters |
| AI SSA | of the image to suit the conditions. |
| Video | |
| Video Compression | by sub stream) AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and |
| AI Coding | Smart H.264+ Main stream: 3840 × 2160@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1 fps–25/30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams 8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × |
| Resolution | 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR H.264: 3 kbps–16384 kbps |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic(optional) Yes, built-in speaker Max power consumption: 2 W; max sound level at 10 |
| Built-in Speaker | cm: 110 dB * Test results from laboratory |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; |
| Network Protocol | Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; |
| Security | Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC 1 channel out: dry contact, 1,000 mA 30 VDC/500 mA |
| Alarm Output | 50 VAC |
| Power | |
| Power Supply | 12 VDC/PoE+ (802.3at) When the power adapter and PoE provide power at the same time, disconnect one of them. The device will |
| Dual Power Backup | continue to work, but will not restart. Basic: 4.1 W (12 VDC); 6.5 W (PoE) Max. (H.265 + WDR+ warm light + siren and light active |
| Power Consumption | deterrence + intelligence on): 14.5 W (12 VDC); 18.3 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67, IK10 |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Structure | |
| Casing Material | Metal + plastic 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72"× 3.33") |
| Product Dimensions | (L × W × H) |
| Net Weight | 1.00 kg (2.20 lb) |
| Gross Weight | 1.30 kg (2.87 lb) |
| Ordering Information | |
| Type | Model Description 8MP WizColor TiOC PRO Vari- DH-IPC-HFW3849T1-ZAS- focal Bullet WizSense Network |
| 8MP Camera | PV-PRO |
| Accessories | |
| (Optional) | PFM320D-EN 12 VDC 2A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA135 | PFA130-E PFA152-E |
| Junction Box | Water-proof Junction Box Pole Mount Bracket |
| PFM320D-EN | PFM900-E TF-P100 |
| 12 VDC 2A Power Adapter | Integrated Integrated Mount Tester Mount Tester |
