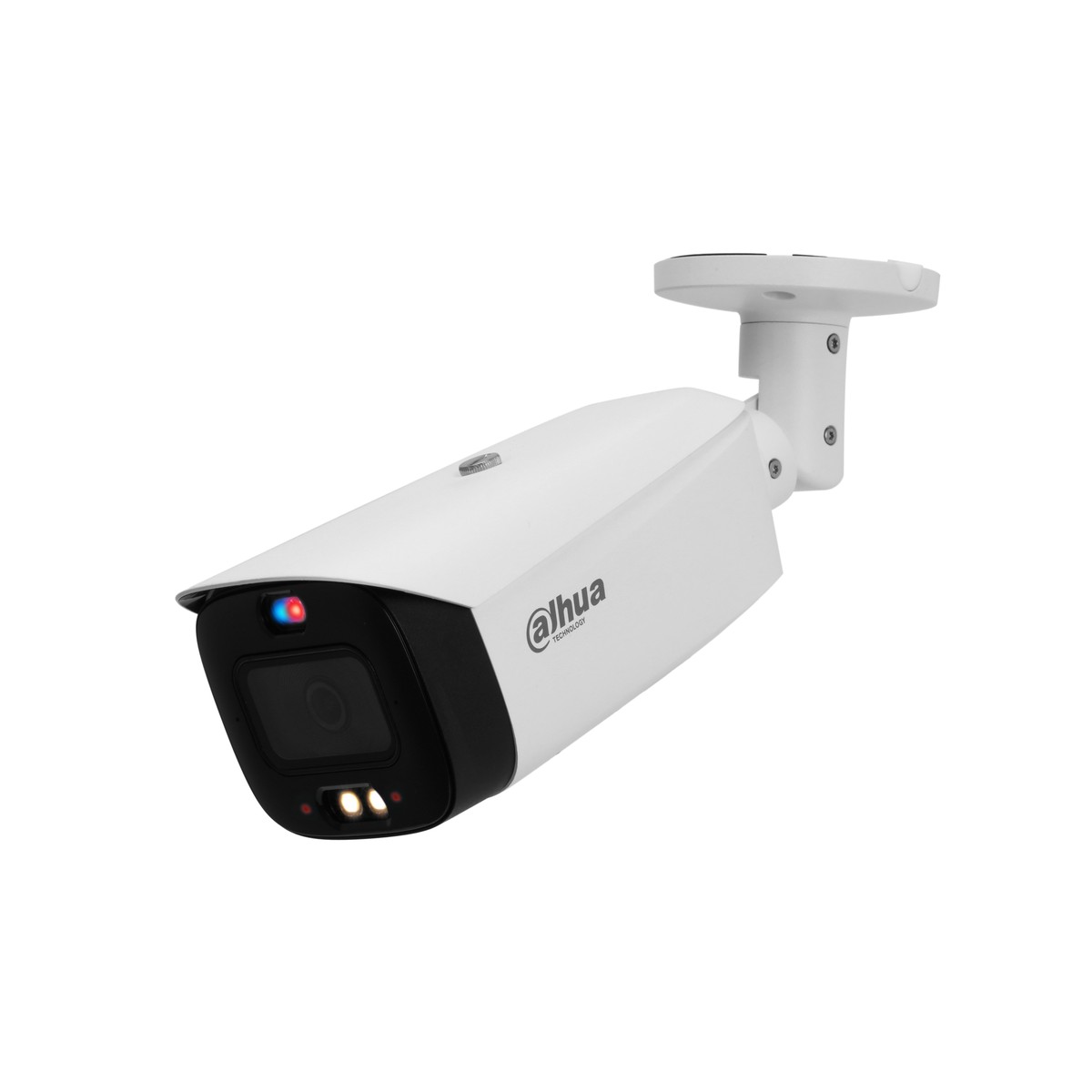

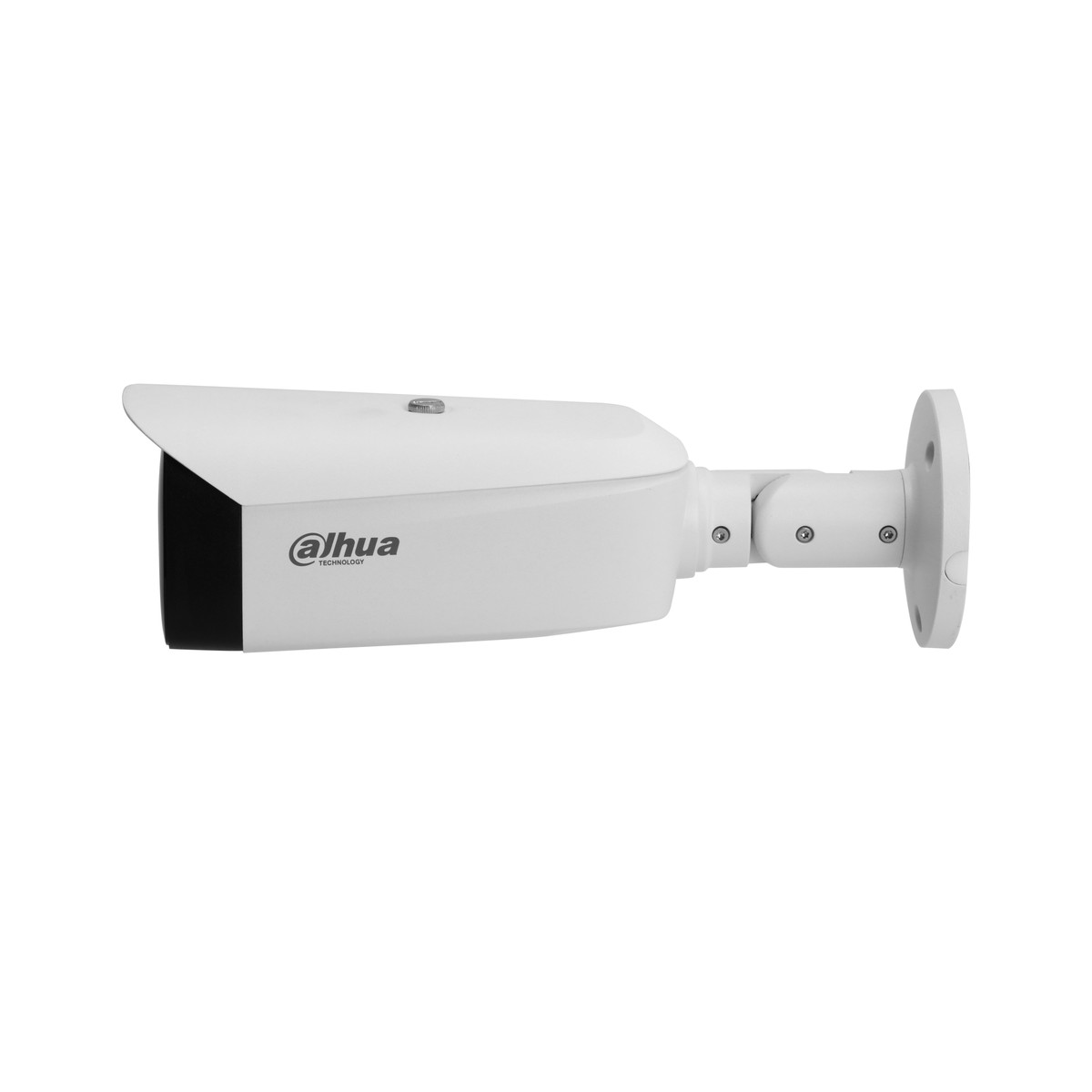

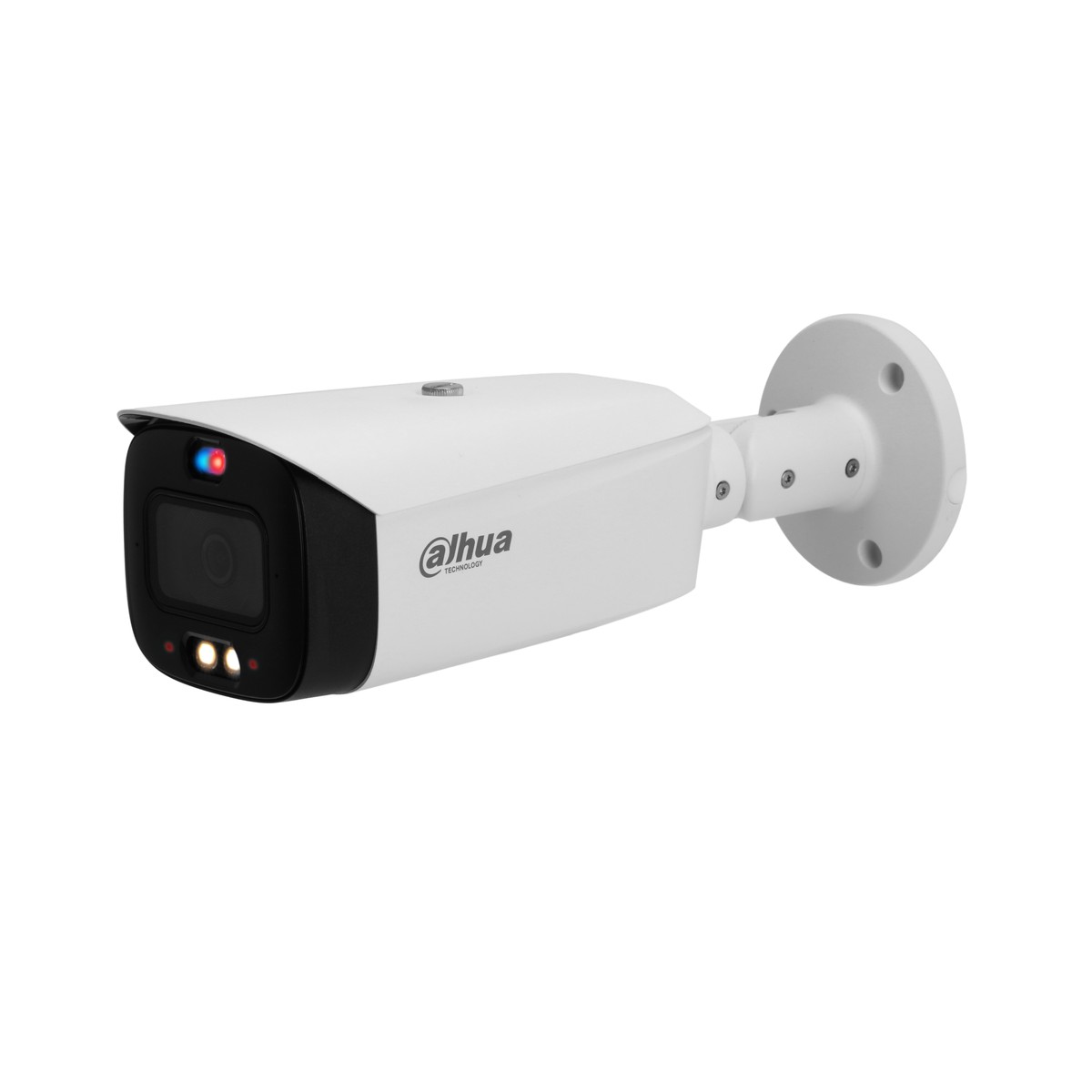

Telecamera bullet IP AI WizSense Smart Dual Light con deterrenza attiva (allarme sonoro e luci rosse e blu) da interno/esterno IP67, sensore CMOS progressivo 1/2.7″, risoluzione 5 MP a 20fps, AI coding, H.265+, ottica fissa 2.8 mm o 3.6 mm F1.0, luminosità 0.003 lux F1.0, portata IR e luce calda fino a 30 m, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio, doppio microfono e speaker integrati, IVS (protezione perimetrale, stazionamento, loitering), face detection, SMD 4.0, AcuPick, AI SSA, WDR, 3D NR, micro SD card (512 GB), alimentazione 12 Vdc/PoE
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2960 (H) × 1688 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.003 lux@F1.0 (Color, 30 IRE); |
| Min. Illumination | 0.0003 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | 56 dB > Up to 30 m (98.43 ft) (IR) |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max. Aperture | F1.0 2.8 mm: H: 97°; V: 70°; D: 128° |
| Field of View | 3.6 mm: H: 78°; V: 58°; D: 102° |
| Iris Control | Fixed 2.8 mm: 1.5 m (4.92 ft) |
| Close Focus Distance | 3.6 mm: 2.2 m (7.22 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human), stay detection, loitering detection Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot |
| Face Detection (Full | set as face or one-inch photo; snapshot strategies |
| Image) | (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| SMD | SMD 4.0 Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| AcuPick | motor vehicles, and search through live and recorded videos to quickly locate targets. Adopt deep learning algorithms to adjust the parameters |
| AI SSA | of the image to suit the conditions. |
| Video | |
| Video Compression | by sub stream) AI H.265; AI H.264 |
| AI Coding | *Includes smart codec technology, Smart H.265+ and Smart H.264+ Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) |
| Video Frame Rate | Third stream: 1920 × 1080@ (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2304×1296/2048 |
| Resolution | × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR H.264: 3 kbps–16384 kbps |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic Yes, built-in speaker Max power consumption: 2 W; max sound level at 10 |
| Built-in Speaker | cm: 110 dB * Test results from laboratory |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/ MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active |
| Power Consumption | deterrence + intelligence on): 8.3 W (12 VDC); 8.8 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | (L × W × H) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
| Ordering Information | |
| Type | Model Description 5MP Smart Dual Light Active |
| 5MP Camera | DH-IPC-HFW3549T1-AS-PV Deterrence Fixed-focal Bullet WizSense Network Camera PFA135 Junction Box PFA130-E Water-proof Junction Box PFA152-E Pole Mount Bracket |
| Accessories | |
| (Optional) | PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA135 | PFA130-E PFA152-E |
| Junction Box | Water-proof Junction Box Pole Mount Bracket TF-P100 |
| PFM321D | PFM900-E Integrated |
| 12 VDC 1A Power Adapter | Integrated Mount Tester Mount Tester |
