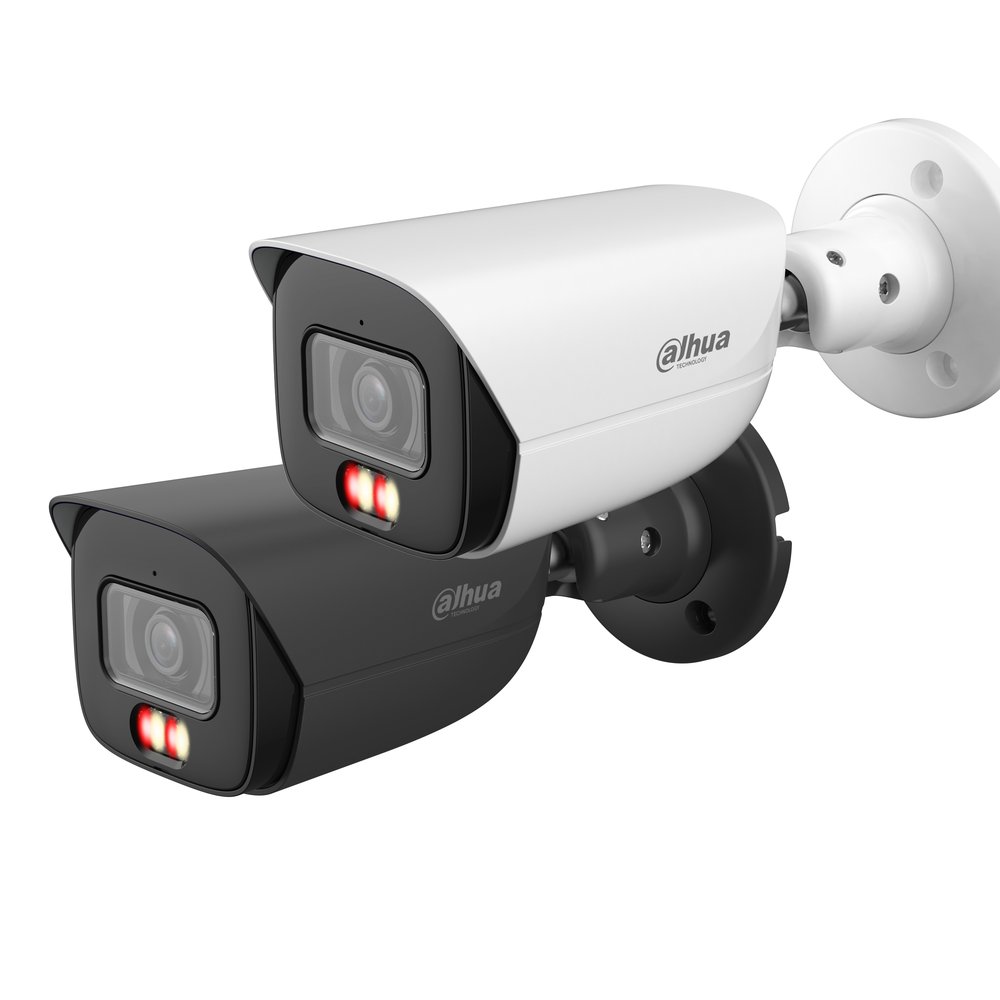

Bullet IP AI Smart Dual Light 4 MP 3.6 mm IR/LED mic nera

Name: Bullet IP AI Smart Dual Light 4 MP 3.6 mm IR/LED mic nera
Brand: Dahua
SKU: IPC-HFW3449E-S-IL-B
Price: 204.96 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW3449E-S-IL-B Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

204,96 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 409,92 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP AI WizSense Smart Dual Light da interno/esterno IP67 nera, sensore CMOS progressivo 1/2.9", risoluzione 4 MP a 25fps, AI coding, H.265+, ICR, ottica fissa M12 3.6 mm F1.4, luminosità 0.005 lux ƒ1.4, portata IR/warm light fino a 50 m, microfono integrato, 1 porta LAN 10/100 Mbps, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), AI SSA, privacy mask 8 aree, 3D NR, WDR 120 dB, slot micro SD card (fino a 512 GB), alimentazione 12 Vdc/PoE <9.7 W

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Camera
Image Sensor	1/2.9" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	256 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F1.4 (Color, 30 IRE)
Min. Illumination	0.0005 lux@F1.4 (B/W,30 IRE) 0 lux (Illuminator on) ＞
S/N Ratio	56 dB Up to 50 m (164.04 ft) (IR)
Illumination Distance	Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	2 (Multi-core (IR + warm) light) Pan: 0°–360°
Angle Adjustment	Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.4 2.8 mm: H: 100°; V: 56°; D: 117°
Field of View	3.6 mm: H: 83°; V: 44°; D: 98° 6 mm: H: 51°; V: 28°; D: 60°
Iris Control	Fixed 2.8 mm: 1.0 m (3.28 ft)
Close Focus Distance	3.6 mm: 1.5 m (4.92 ft) 6 mm: 3.2 m (10.51 ft)
Dori
Distance	( 406.82 ft) ( 162.73 ft) ( 81.36 ft) ( 40.68 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)	classification and accurate detection of vehicle and human), stay detection, loitering detection
SMD	SMD 4.0
AcuPick	motor vehicles, and search through live and recorded videos to quickly locate targets. Adopt deep learning algorithms to adjust the
AI SSA	parameters of the image to suit the conditions. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot
Face Detection (Full Image)	strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	by sub stream) AI H.265; AI H.264 ，
AI Coding	*includes SmartCodec Technology Smart H.264+ / H.265+ Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	3 streams 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 ×
Resolution	576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR;ABR H.264: 3 kbps–16384 kbps;
Video Bit Rate	H.265: 3 kbps–16384 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Smart Dual Light	Yes
Defog
Image Rotation	resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
LDC	Yes
Audio
Built-in MIC	Yes, built-in Mic
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event	detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; SMD; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host	20 (Total bandwidth: 64 M)
Storage
Browser	Chrome; Firefox
Management Software	Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client	iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509
Security	certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Power
Power Supply	12 VDC/PoE (802.3af) When the power adapter and PoE provide power at
Dual Power Backup	the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 3.3 W (12 VDC); 4.9 W (PoE);
Power Consumption	Max.: 7.2 W (12 VDC); 9.7 W (PoE) (H.265 + WDR + warm light + intelligence on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67
Structure
Casing Material	Metal 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.78" × 2.61")
Product Dimensions	(L × W × H)
Net Weight	610 g (1.34 lb)
Gross Weight	770 g (1.70 lb)
Ordering Information
Type	Model Description 4MP Smart Dual Light
IP CAMERA	DH-IPC-HFW3449E-S-IL Fixed-focal Bullet WizSense Network Camera DH-PFA151 Corner Mount Bracket DH-PFA130-E Water-proof Junction Box G3416GW G3/4" Water Joint DH-PFA152-E Pole Mount Bracket
Accessories (Optional)	DH-PFA134 Junction Box DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card
Accessories
Optional:	DH-PFA134 DH-PFA151
Water-proof Junction Box	Junction Box Corner Mount Bracket
DH-PFA152-E	DH-PFM320D-EN DH-PFM321-EN
Pole Mount Bracket	DC12V2A power adapter DC12V1A power adapter
DHI-TF-P100/512GB	G3416GW PFM900-E
MicroSD Card	G3/4" Water Joint Integrated Mount Tester
