Bullet IP AI 4 MP 2.1 mm grandangolare IR mic

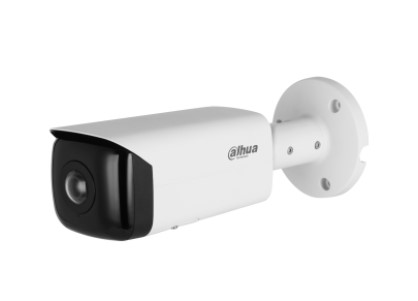

Name: Bullet IP AI 4 MP 2.1 mm grandangolare IR mic
Brand: Dahua
SKU: IPC-HFW3441T-AS-P
Price: 298.29 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW3441T-AS-P Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

298,29 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 596,58 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP AI WizSense Starlight con ottica grandangolare da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 4 MP a 25fps, AI H.265, ICR, ottica fissa grandangolare 2.1 mm ƒ2.0, luminosità 0.01 lux ƒ2.0, portata IR fino a 20 m, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono integrato, 1 porta di rete 10/100 Mbps, privacy mask 4 aree, IVS (protezione perimetrale), SMD 3.0, EPTZ, 3D NR, WDR 120 dB, micro SD card (256 GB), alimentazione 12 Vdc/PoE <6.5 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/2.7" CMOS 2880 (H) × 1620 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive Auto/Manual 1/3 s–1/100,000 s
Electronic Shutter Speed	0.01 lux@F2.0 (Color,30 IRE)
Min. Illumination	0.001 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	Up to 20 m (65.62 ft) (IR LED)
Illuminator On/Off Control	Auto
Illuminator Number	2 (IR LED) Pan: 0°–360°
Pan/Tilt/Rotation Range	Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.1 mm
Max. Aperture	F2.0 LDC is disabled: Horizontal: 180°; Vertical: 78°; Diagonal: 180°
Field of View	LDC is enabled (by default): Horizontal: 170°; Vertical: 75°; Diagonal: 175°
Close Focus Distance	0.6 m (1.97 ft)
Dori
Distance	(EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.
Intelligence
IVS (Perimeter Protection)	classification and accurate detection of vehicle and human) With AI NVR, quickly pick up the human/vehicle targets
Quick Pick	that users are interested in from SMD events Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264 Main stream: 2880 × 1620 @(1–20 fps )/2688 × 1520 @ (1–25/30 fps ) sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Video Frame Rate	third stream:1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296 ; 1080p(1920 × 1080);
Resolution	1.3M (1280 × 960); 720p(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF(352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H.264: 3 kbps–8192 kbps;
Video Bit Rate	H.265: 3 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto; Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Defog
Image Rotation	resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and
Cyber Security	importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P
User/Host	20 (Total bandwidth: 64 M)
Storage
Browser	Chrome Firefox
Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	iOS; Android
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5 mA 3–5V DC
Alarm Output	1 channel out: 1,000 mA 30V DC/500mA 50V DC
Power
Power Supply	12 VDC/PoE Basic: 3.1 W (12 V DC); 5.3 W (PoE)
Power Consumption	Max. (H.265+main stream/IR intensity+IR on): 4 W (12V DC); 6.5 W (PoE)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Structure
Casing	Metal 249.3 mm × 90.7 mm × 90.4 mm (9.81" × 3.57" × 3.56")
Product Dimensions	(L × W × H)
Net Weight	820 g (1.81 lb)
Gross Weight	1090 g (2.40 lb)
Ordering Information
Type	Model Description 4MP Wide Angle Fixed Bullet DH-IPC-HFW3441T-AS-P WizSense Network Camera
4MP Camera	4MP Wide Angle Fixed Bullet IPC-HFW3441T-AS-P WizSense Network Camera PFA130-E Junction Box PFA135 Junction Box PFA152-E Pole Mount
Accessories
(optional)	PFM321D 12 VDC 1 A Power Adapter PFM900-E Integrated Mount Tester TF-P100 TLC SD Card
Optional:
PFA130-E	PFA135 PFA152-E
Junction	Junction Pole
Box	Box Mount PFM900-E TF-P100
PFM321D	Integrated TLC SD
12 VDC 1A	Mount Tester
