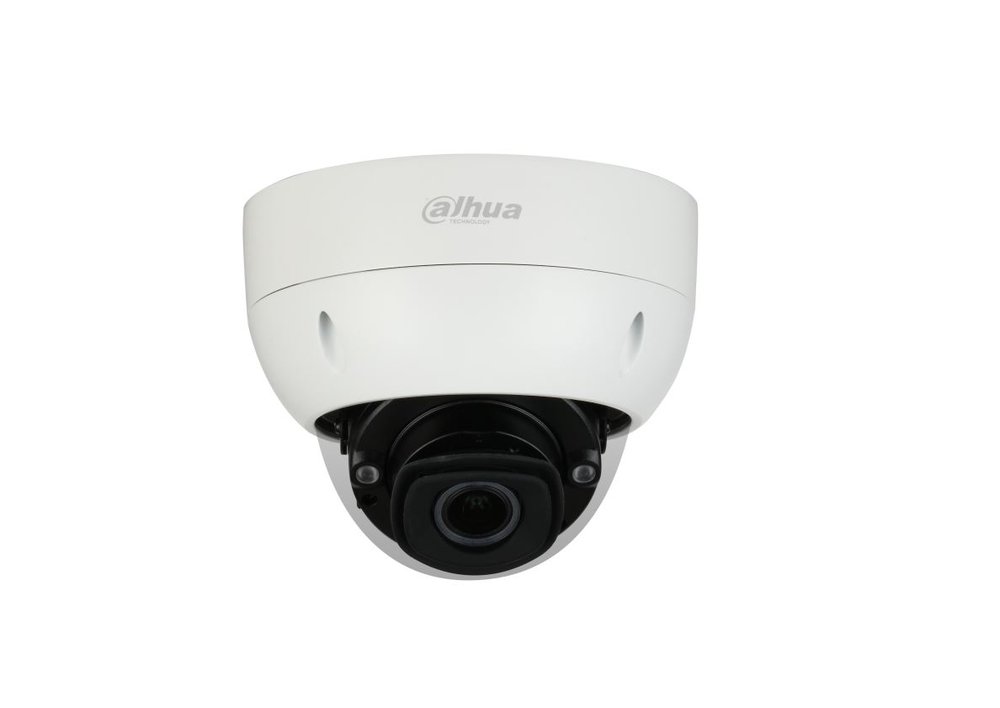

Dome IP AI 4 MP 2.7~12 mm IR mic anticorrosion

Name: Dome IP AI 4 MP 2.7~12 mm IR mic anticorrosion
Brand: Dahua
SKU: IPC-HDBW7442E1-Z-ATC-X
Price: 1189.50 EUR
Availability: BackOrder

Dahua

COD: IPC-HDBW7442E1-Z-ATC-X Categoria: Telecamere IP speciali Tag: 4MP

1.189,50 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 2.379,00 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera IP da esterno PoE ONVIF Wizmind X Dahua IPC-HDBW7442E1-Z-ATC-X Dome 4 Megapixel 4 MP CMOS 1/1.8″ con Tecnologia WizMind e ottica 2.7-12mm motorizzata. H.265+ , Illuminatore Smart IR 3 LED 40M , Day/Night (IC

Telecamera IP ONVIF® ePoE da esterno – Dahua

Risoluzione 4 Megapixel 4 MP

Ottica 2.7-12mm con zoom motorizzato

Sensore d’immagine CMOS progressivo 1/1.8”

Video Compressione fino H.265+

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	8 GB
RAM	4 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.0005 lux@F1.2 (Color, 30 IRE)
Min. Illumination	0.0002 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	Up to 40 m (131.23 ft) (IR)
Illuminator On/Off Control	Auto
Illuminator Number	3 (IR LED) Pan: 0-355°
Angle Adjustment	Tilt:0-80° Rotation: 0-355°
Lens
Lens Type	Motorized vari-focal
Lens Mount	φ16
Focal Length	2.7 mm–12 mm
Max. Aperture	F1.2
Field of View	H: 107°–48°; V: 55°–27°; D: 130°–56°
Iris Control	Auto
Iris Control Type	P-Iris
Close Focus Distance	1.8 m (5.91 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
IVS	Abandoned object; missing object
Intelligence
IVS (Perimeter Protection)	gathering, parking detection, privacy protection. Supports long- distance mode. Supports self-learning, it filters out false alarms. Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes
Face Detection	and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; privacy protection There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization
Face Recognition	time setting; privacy protection. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces.
PPE Detection	shoe covers, boots, safety vest, and seatbelt). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting
People Counting	report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management; privacy protection
Heat Map	Yes ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color.
ANPR	Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple
Parking Space	areas; display the total number of parking spaces and
Management	parking spaces that are available; trigger alarms based on a predefined number of vehicles. Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling. Generates flow statistics for people, motor vehicles and
Video Metadata	non-motor vehicles based on the direction, and exports reports. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella. privacy protection Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people,
Acupick	animal,and motor vehicles, and search through live and recorded videos to quickly locate targets.
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+ Main Stream: 2688 × 1520@(1–50/60 fps) Sub stream:1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video Frame Rate	Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability	5 streams 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
Resolution	× 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–16384 kbps; H.265: 12 kbps–12800 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	150 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Smart Illumination	Yes
Defog
Image Rotation	resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
LDC	Yes
Time-Division Exposure	Yes
Audio
Built-in MIC	Dual MICs
Built-in Speaker	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
Interoperability	ONVIF (Profile S/Profile G/Profile T/Profile M); CGI; P2P
User/Host	20 (Total bandwidth: 340 M)
Storage
Browser	Chrome: Chrome 88.0.4324.190 and later; Firefox: Firefox 47.0.2 and later
Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	iOS; Android
Security	upgrade; Trusted boot; Generation and importing of X.509 certification
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	3 channels in: wet contact, 5mA 3V–5V DC 2 channels out: dry contact, 1,000mA 30V DC/500mA
Alarm Output	50V AC
Analog Output	1 channel (CVBS output: BNC)
Power Output	12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply	12 VDC/24 VAC/PoE+ (802.3at)/ePoE Basic: 6.6 W (12 VDC); 9.3 W (24 VAC); 9.8 W (PoE) Max. (ICR switch + IR intensity): 18.7 W (12 VDC); 24.8
Power Consumption	W (24 VAC); 25.2 W (PoE) Heating: 3 W (12 VDC); 4.6 W (24 VAC); 5.47 W (PoE)
Environment
Operating Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Storage Humidity	10–95%
Protection	IP67, IK10, Anti-Corrosion Protection (optional) Moderate Protection(Only supported by -ATC model) *The products feature high-grade anti-corrosion protection, making them well-suited for environments
Anti-corrosion Level	with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure .
Structure
Casing Material	Metal + plastic
Product Dimensions	118.0 mm × Φ159.0 mm (4.65" × Φ6.26")
Net Weight	1.16 kg (2.56 lb)
Gross Weight	1.36 kg (3.00 lb)
Ordering Information
Type	Model Description 4MP IR Dome WizMind Network DH-IPC-HDBW7442E1-Z-X
Accessories
(Optional)	PFA138 Junction Box PFM320D 12 VDC 2 A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card
Optional:
PFB211W	PFA156 PFA101
Wall Mount Bracket	Pole Mount Bracket Mount Adapter
PFB300C	PFB5201C PFA138
Ceiling Mount Bracket	In-ceiling Mount Bracket Junction Box
PFM320D	PFM900-E TF-P100
12 VDC 2A Power	Integrated Mount Tester MicroSD Memory Card
